DMR Colt Front Hub

£45.00
Options
Description

The all-new DMR Colt hubs are the perfect centrepiece for your custom wheelset build and your single-speed setup. We start with an aluminium hub shell, drilled for 36 spoke lacing, which is CNC finished to shave a little more weight yet retain the strength and durability that DMR is known for.

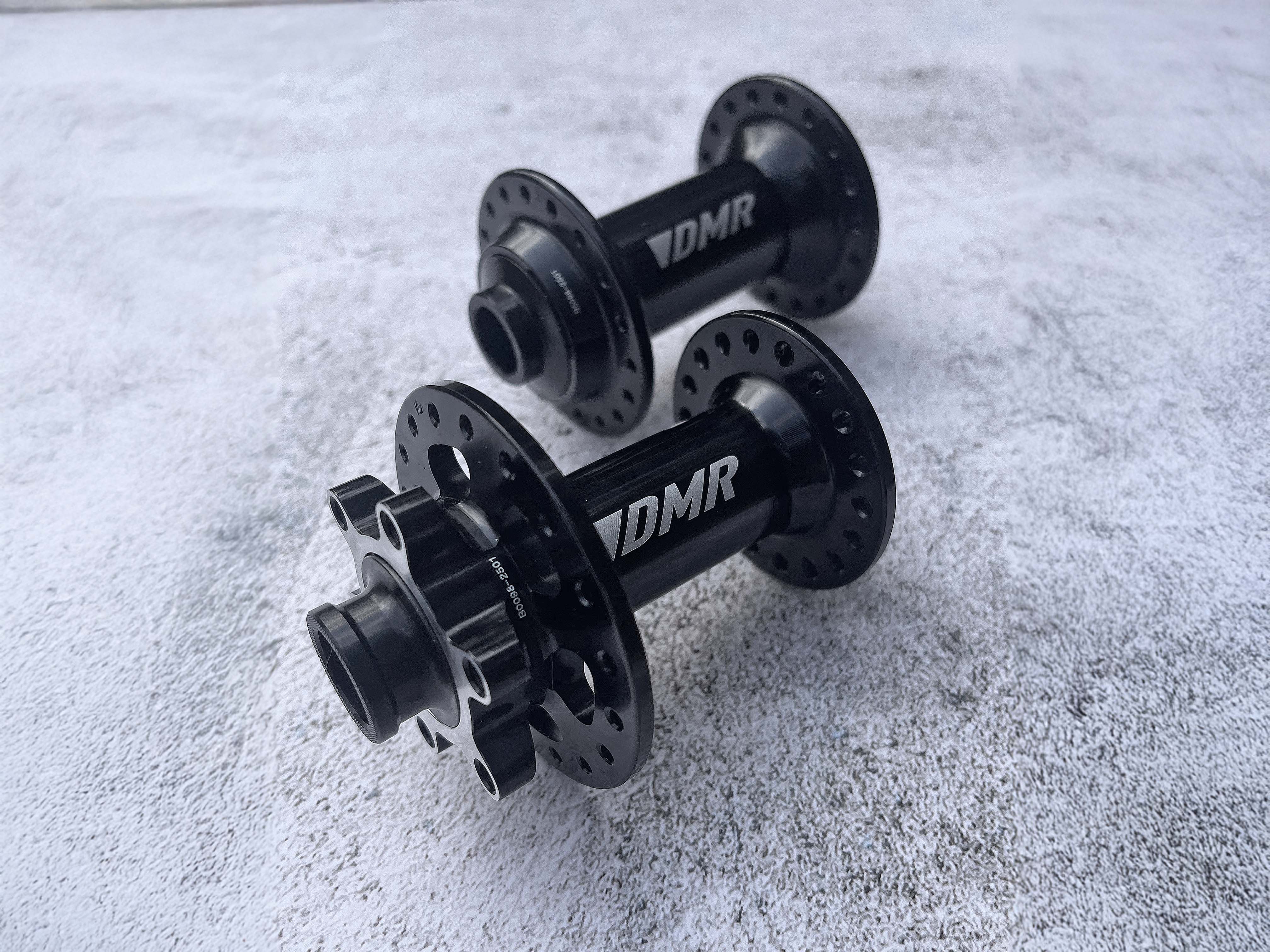

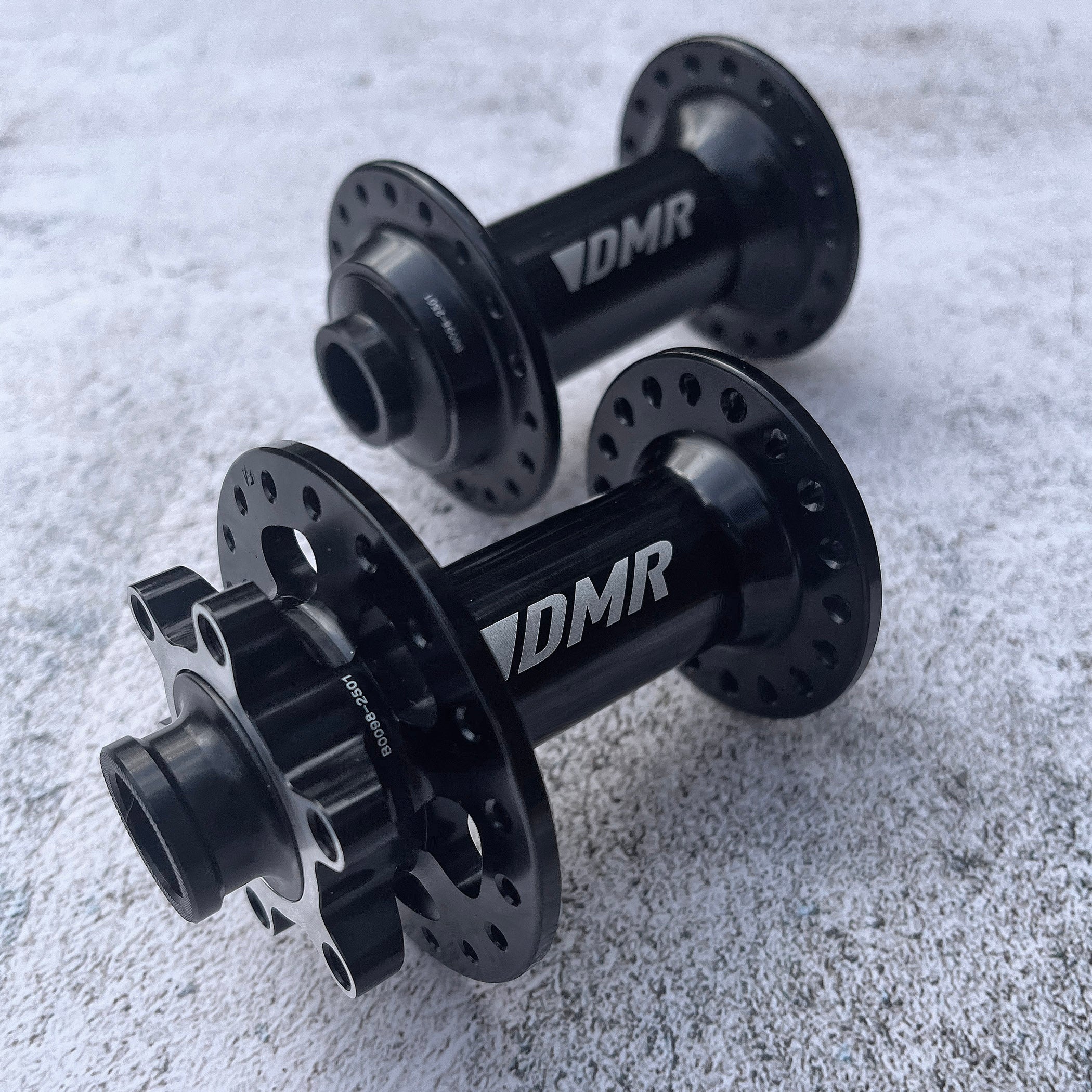

For our new front hubs we now offer two options – depending on if you run a front brake, or want a clean brake-less look. The six-bolt brake rotor mounting on our Disc Brake hub keeps things simple, and two sealed, precision cartridge bearings keeps things rolling fast. Pair the new DMR Colt front hub with our new rear Colt cassette hub, and you have the ultimate custom setup.

New DMR Colt Hubs - from the trails, for the trails.
Features

CNC HUB SHELL – Additional hub shell CNC machining shaves weight
SEALED BEARINGS – Stainless steel bearings for maximum durability
WIDE PROFILE – Wide bearing stance and axle design reduces flex and add durability
FAST RUNNING – Low-drag main seal prevents contamination and reduces resistance

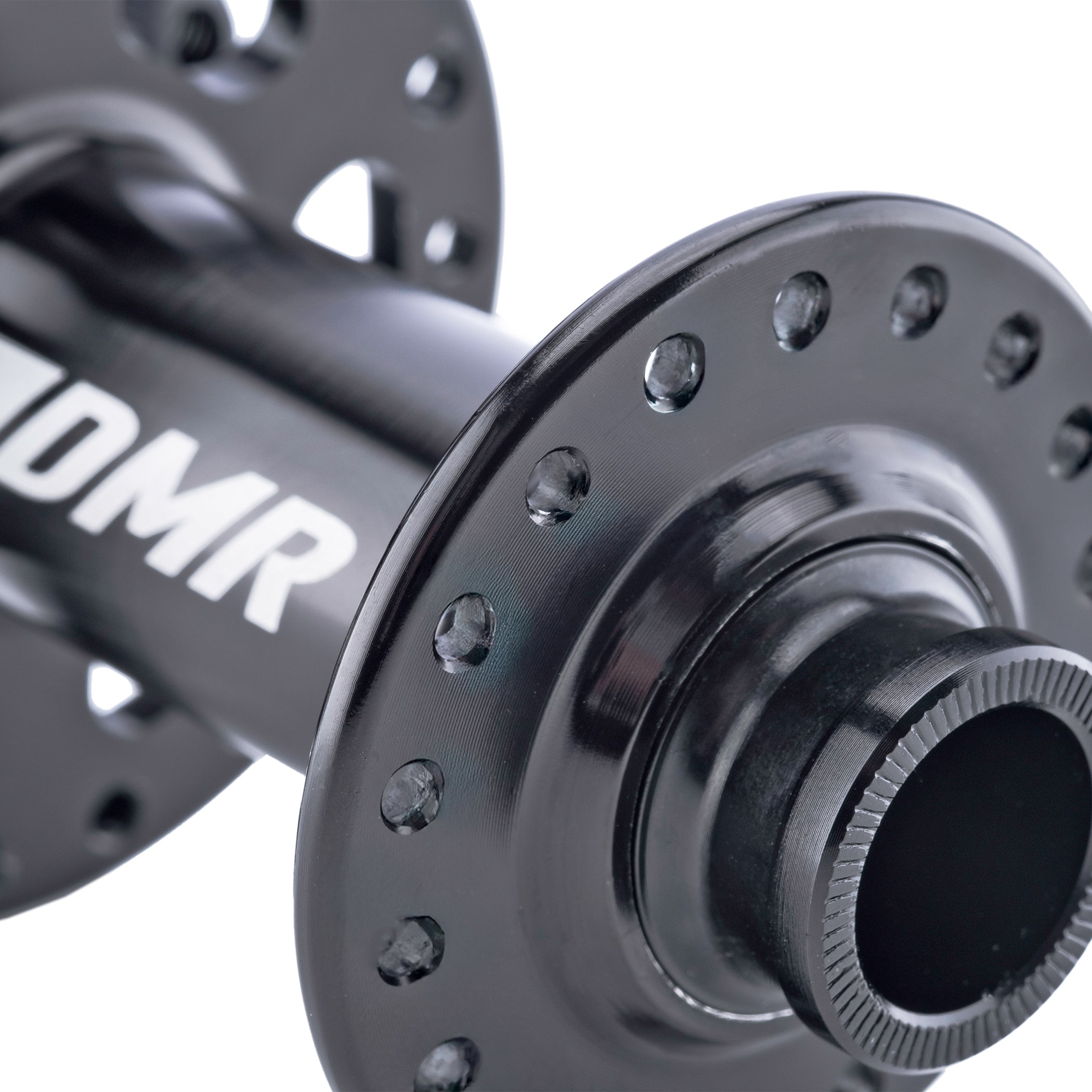

ANGLED FLANGES – Angled flanges for improved spoke alignment and more consistent tension
BRAKE CHOICES – Available with or without six-bolt rotor mount holes for a front disc brake
Specification

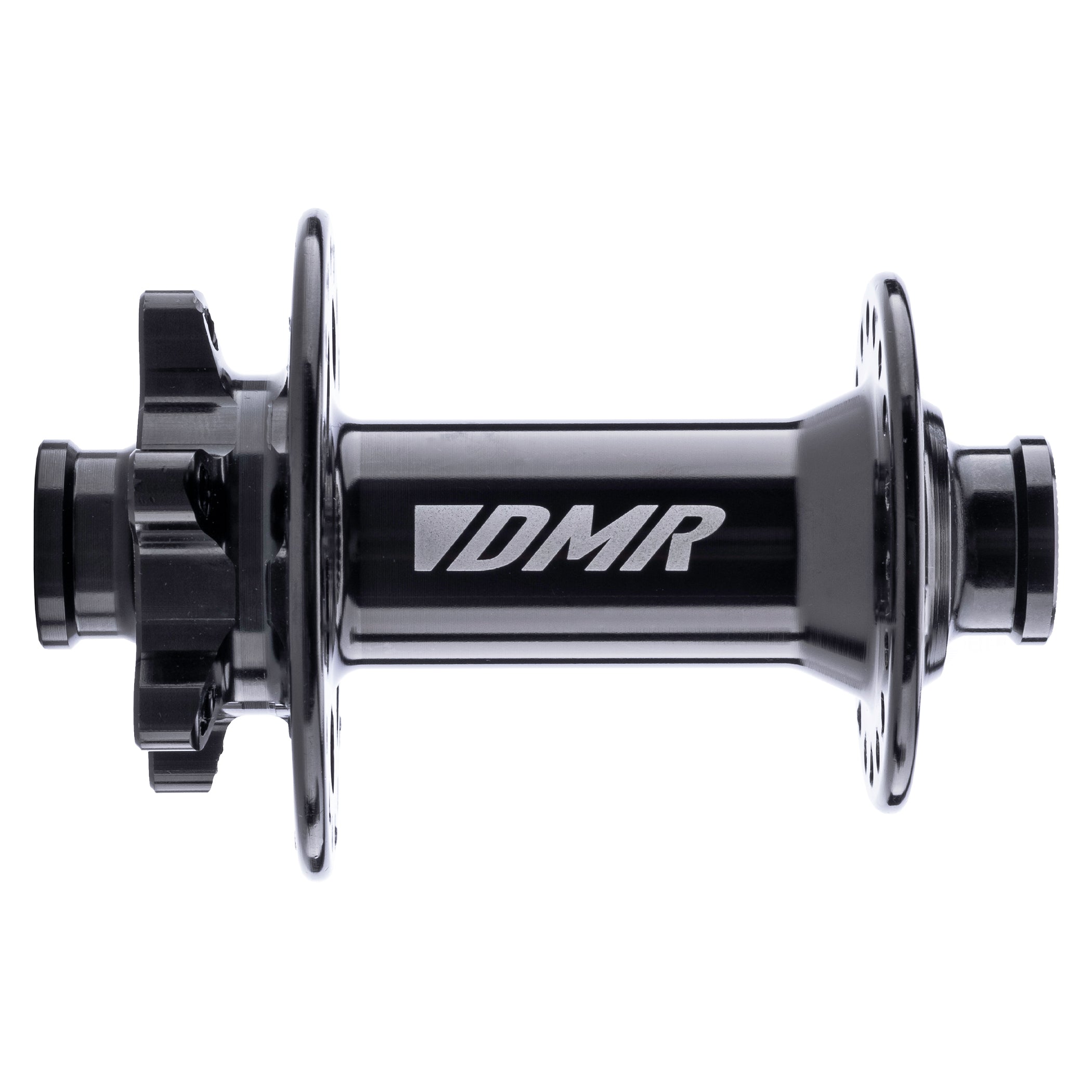

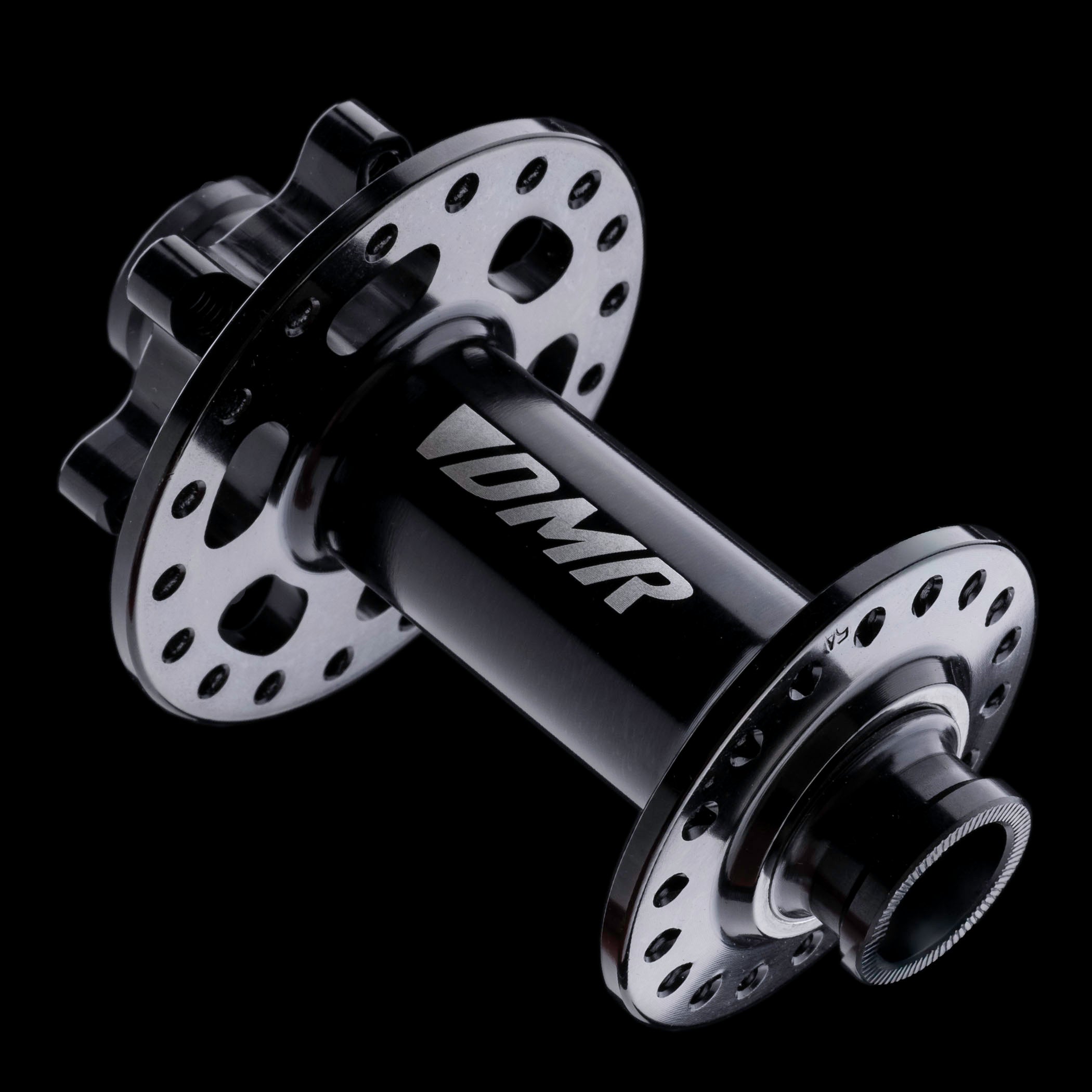

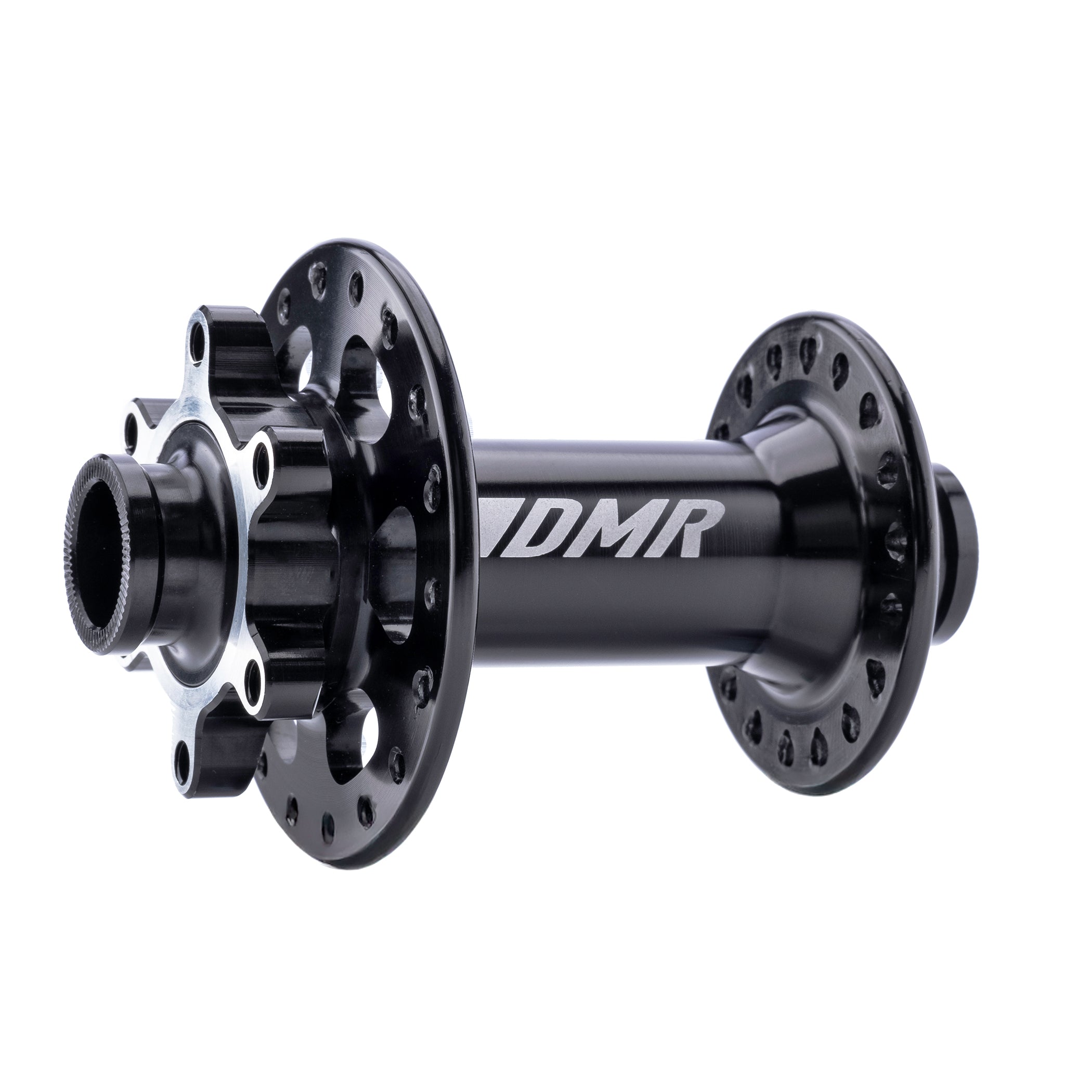

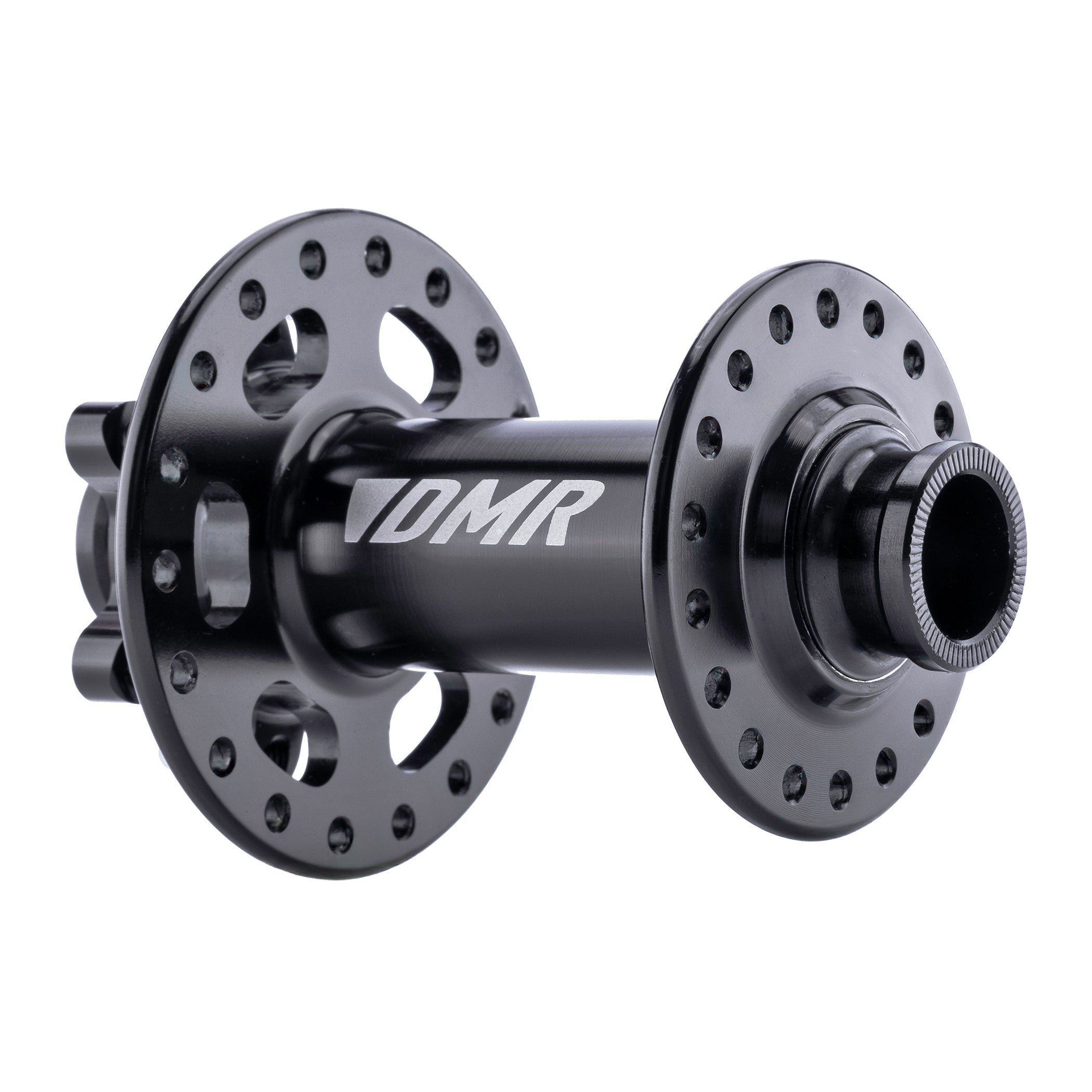

DMR Colt Front Disc Hub
• 100mm x 15mm thru axle

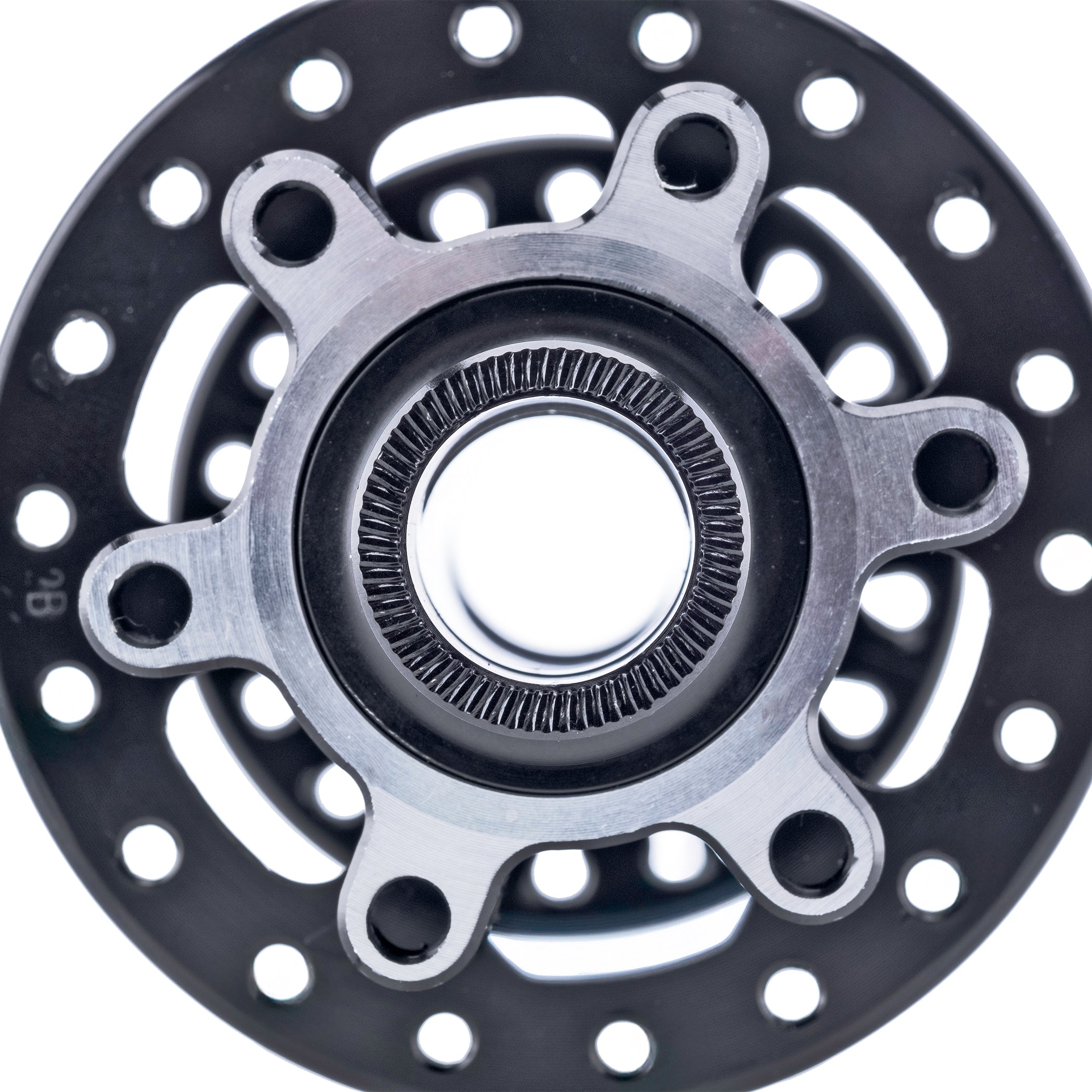

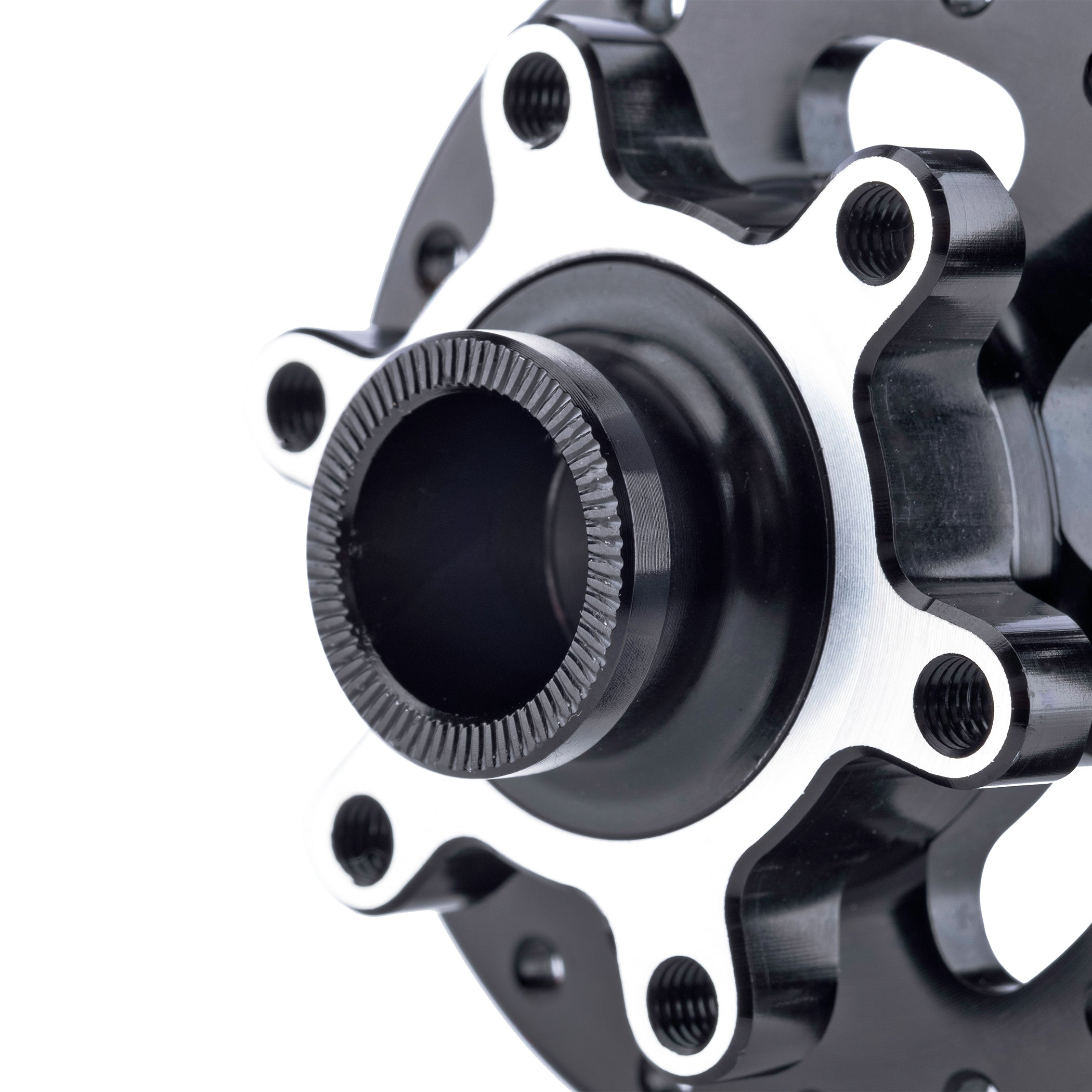

• 6-bolt disc mounting
• 2 cartridge bearings
• 36 hole drilling
• Weight: 140g

Dimensions

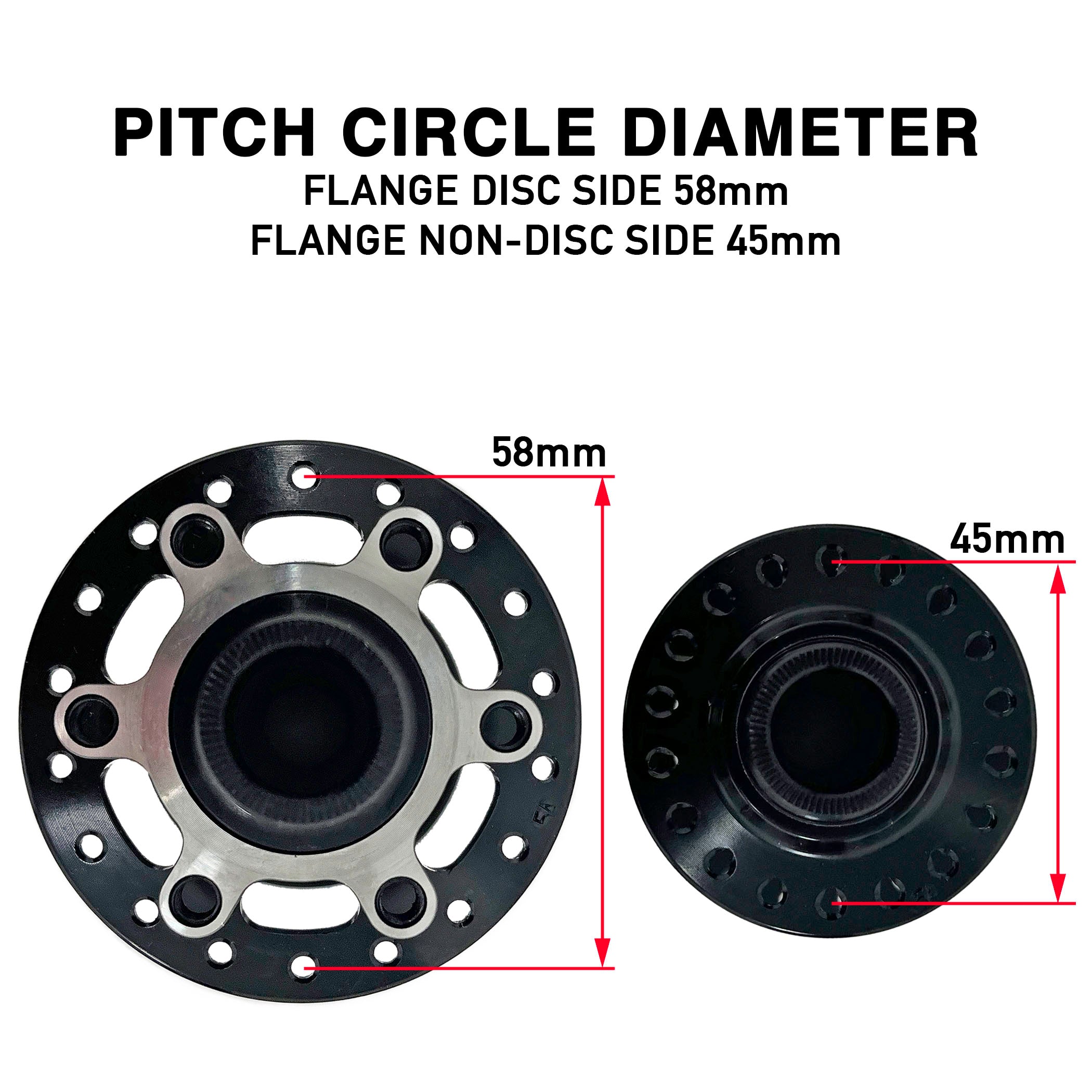

Flange non-disc side PCD 45mm
Flange disc side PCD 58mm

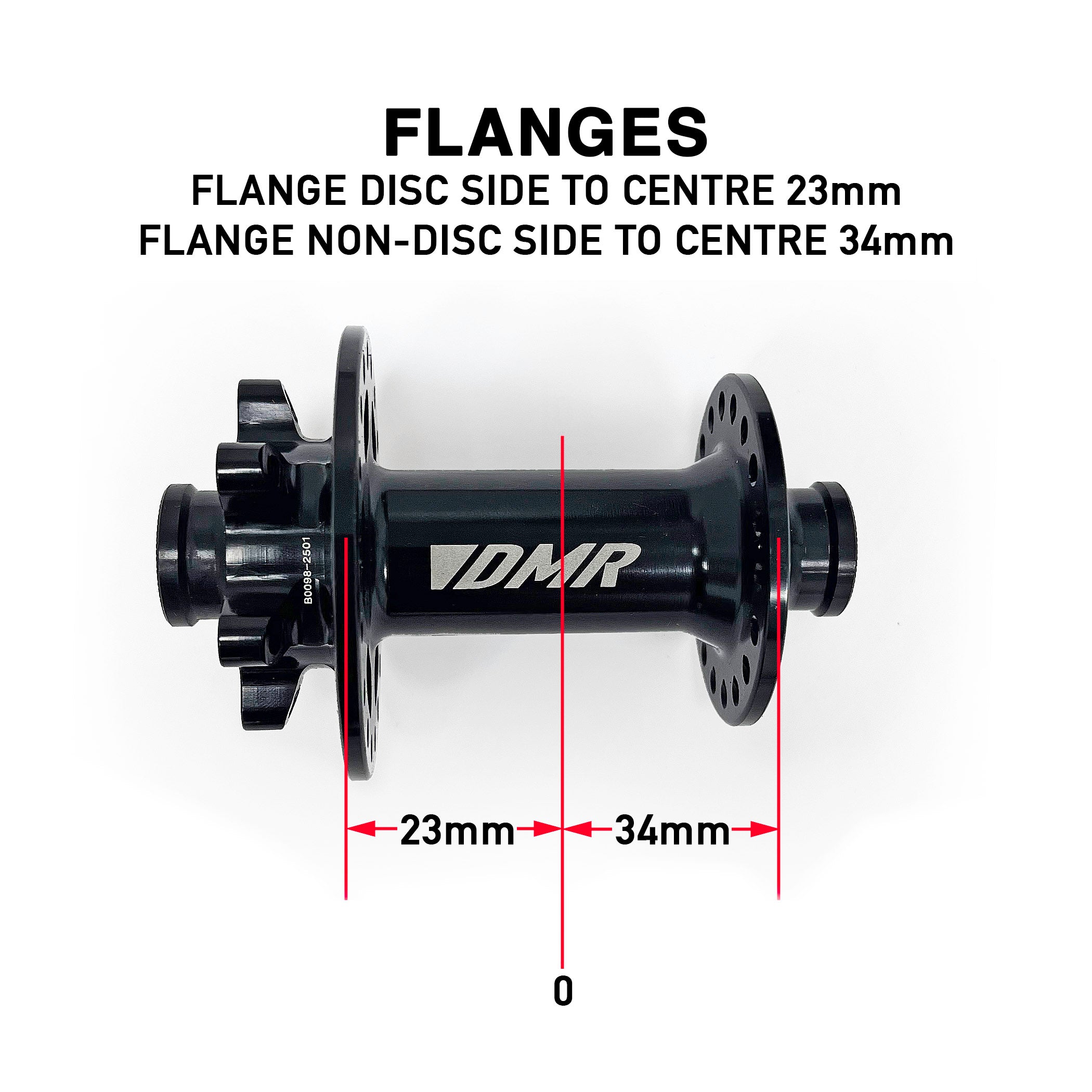

Flange non-disc side to centre 34mm
Flange disc side to centre 23mm

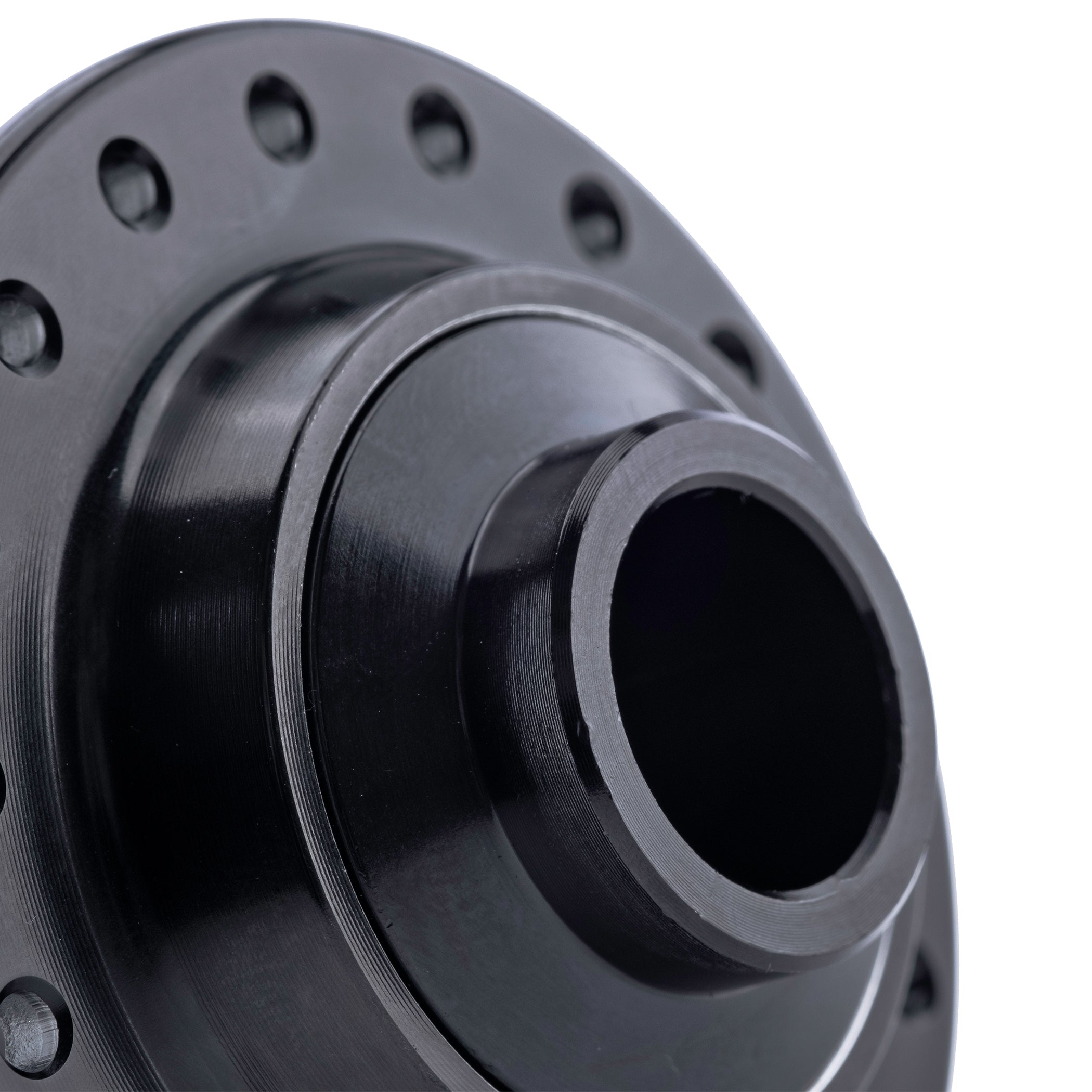

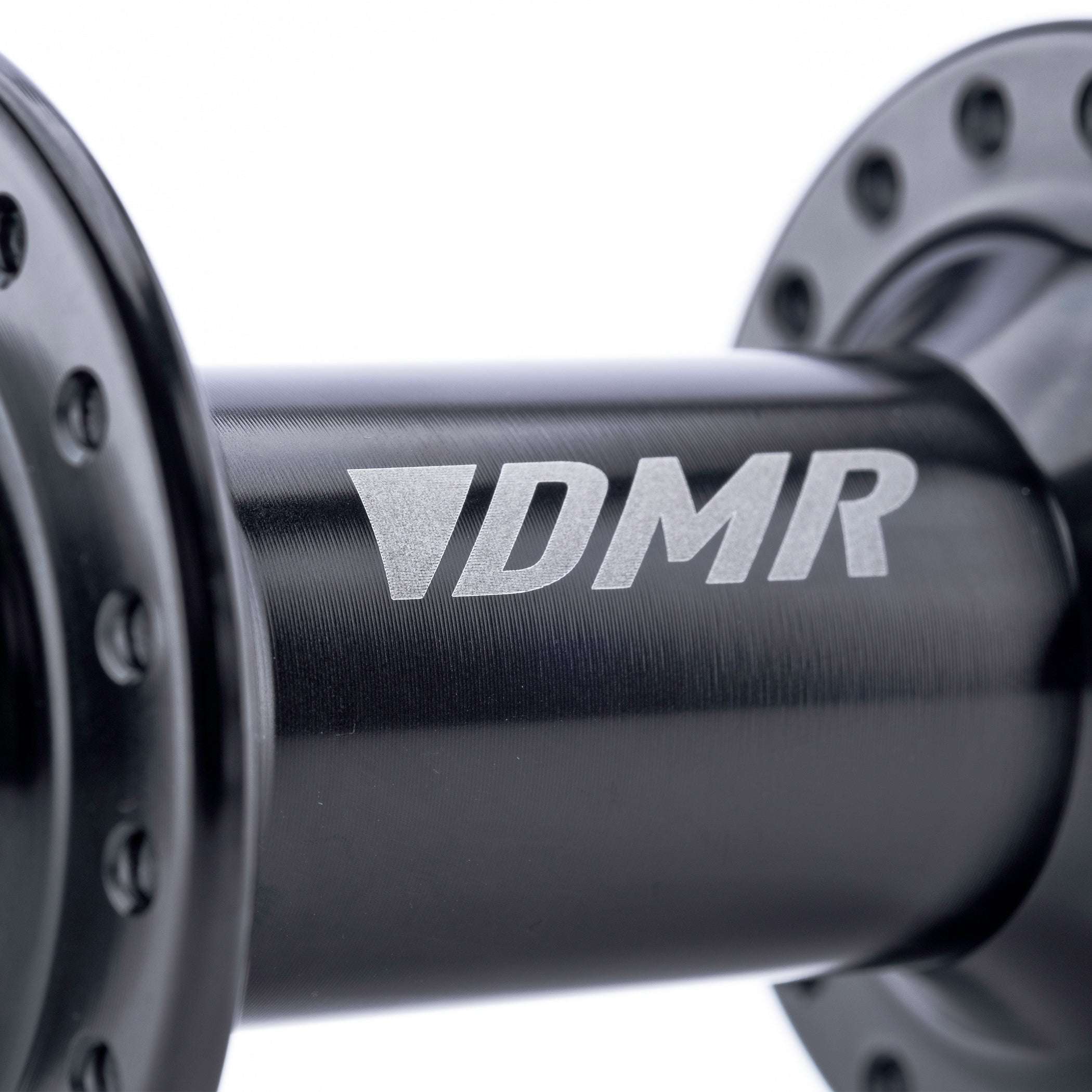

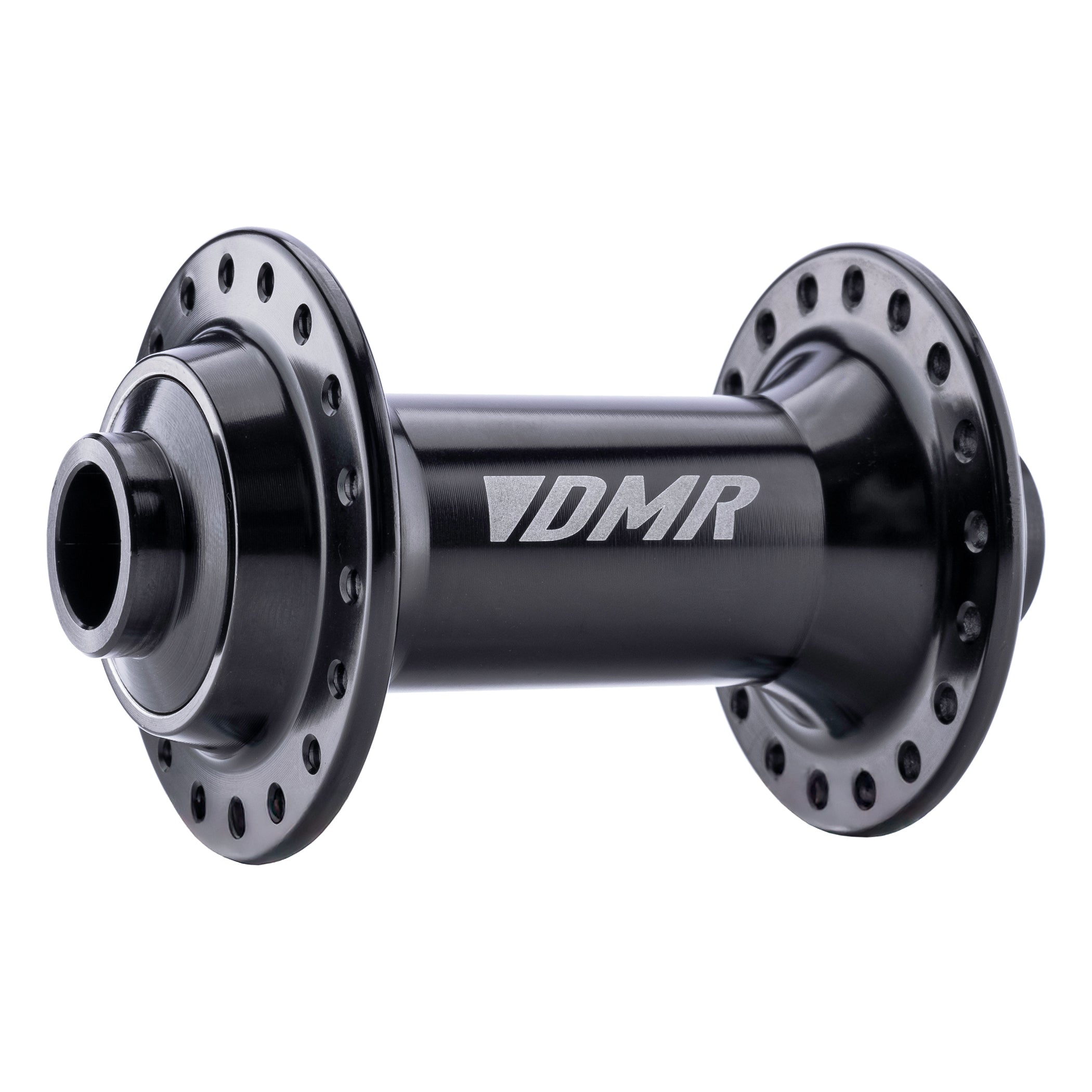

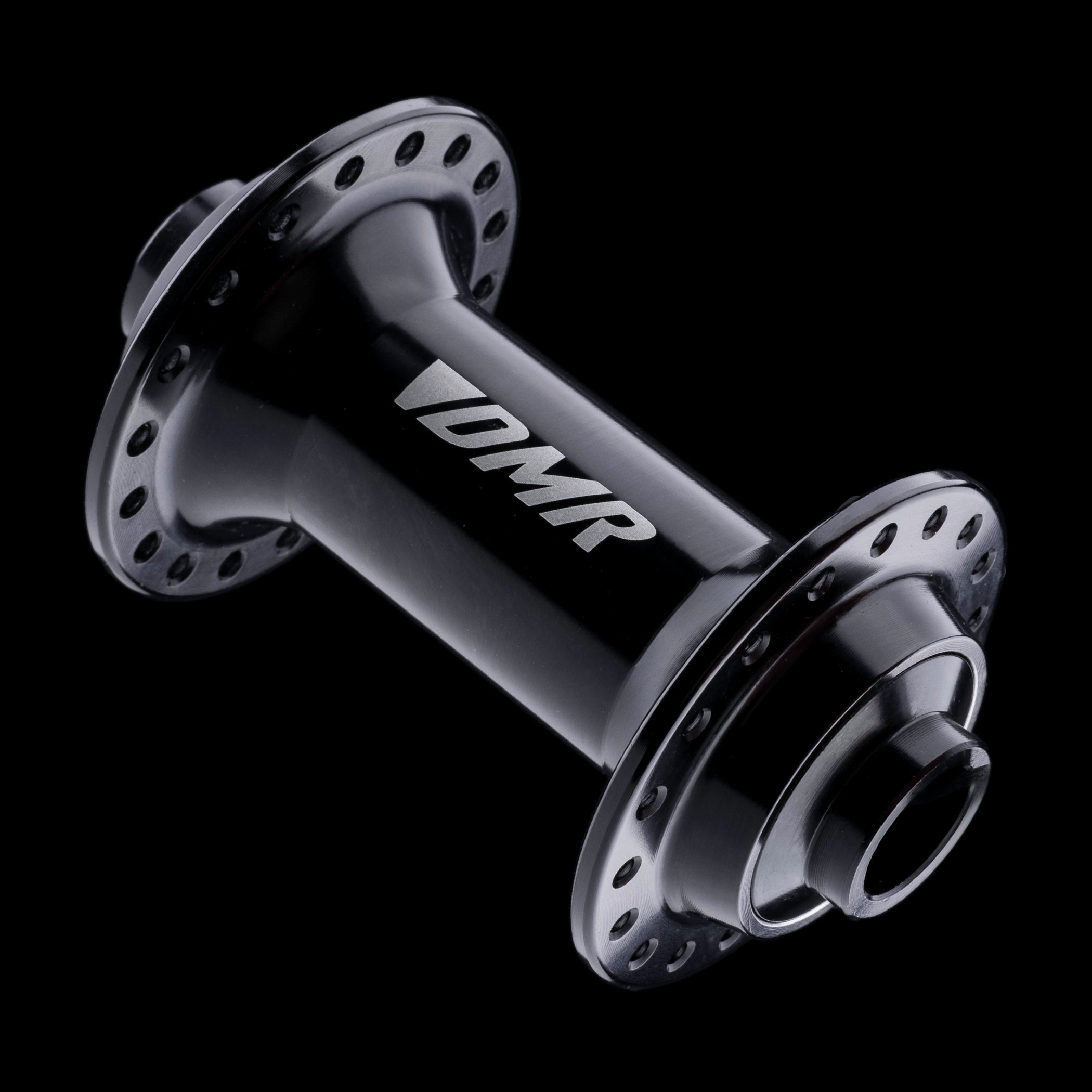

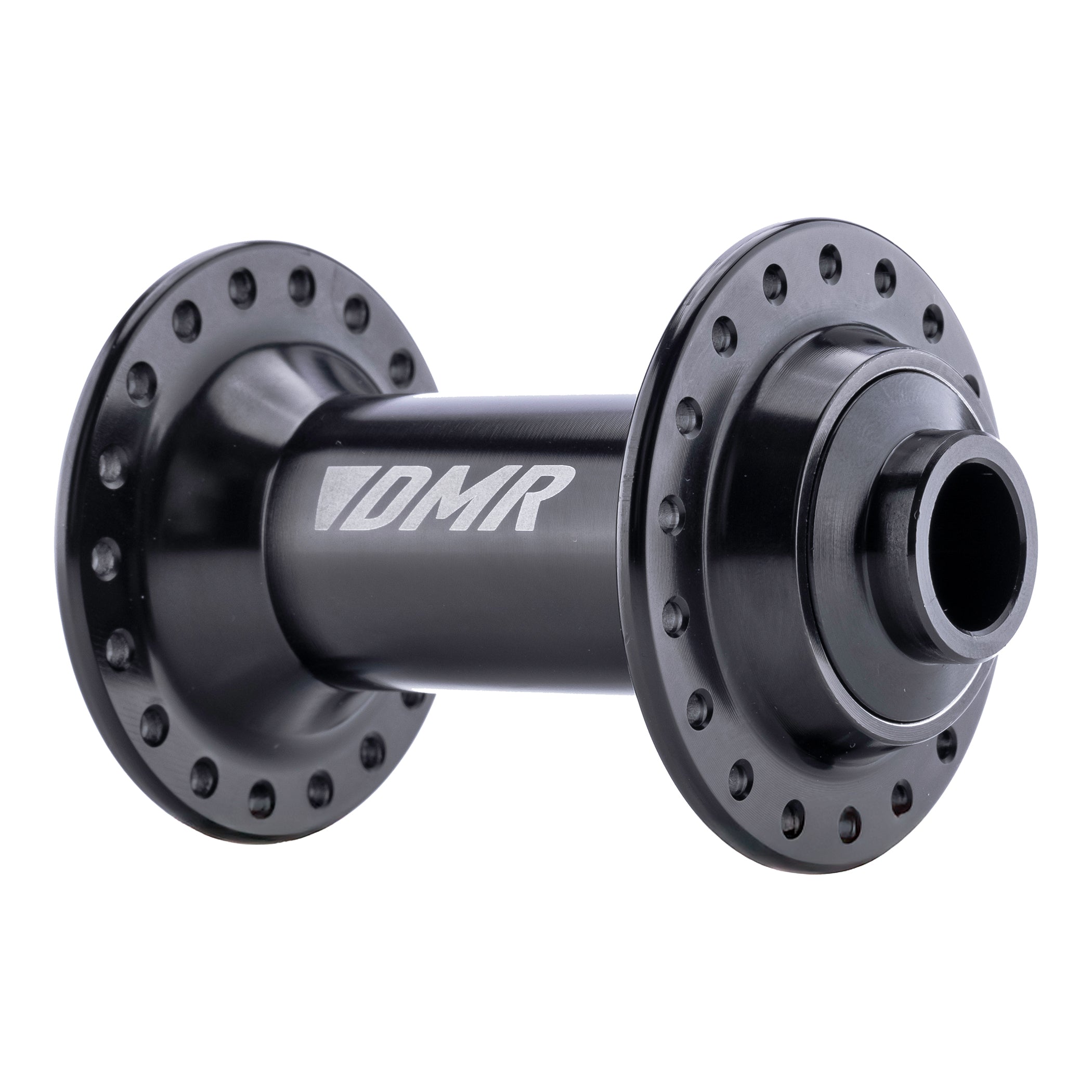

DMR Colt Front Non-Disc Hub
• 100mm x 15mm thru axle
• 2 cartridge bearings
• 36 hole drilling
• Weight: 175g

Tech Specs

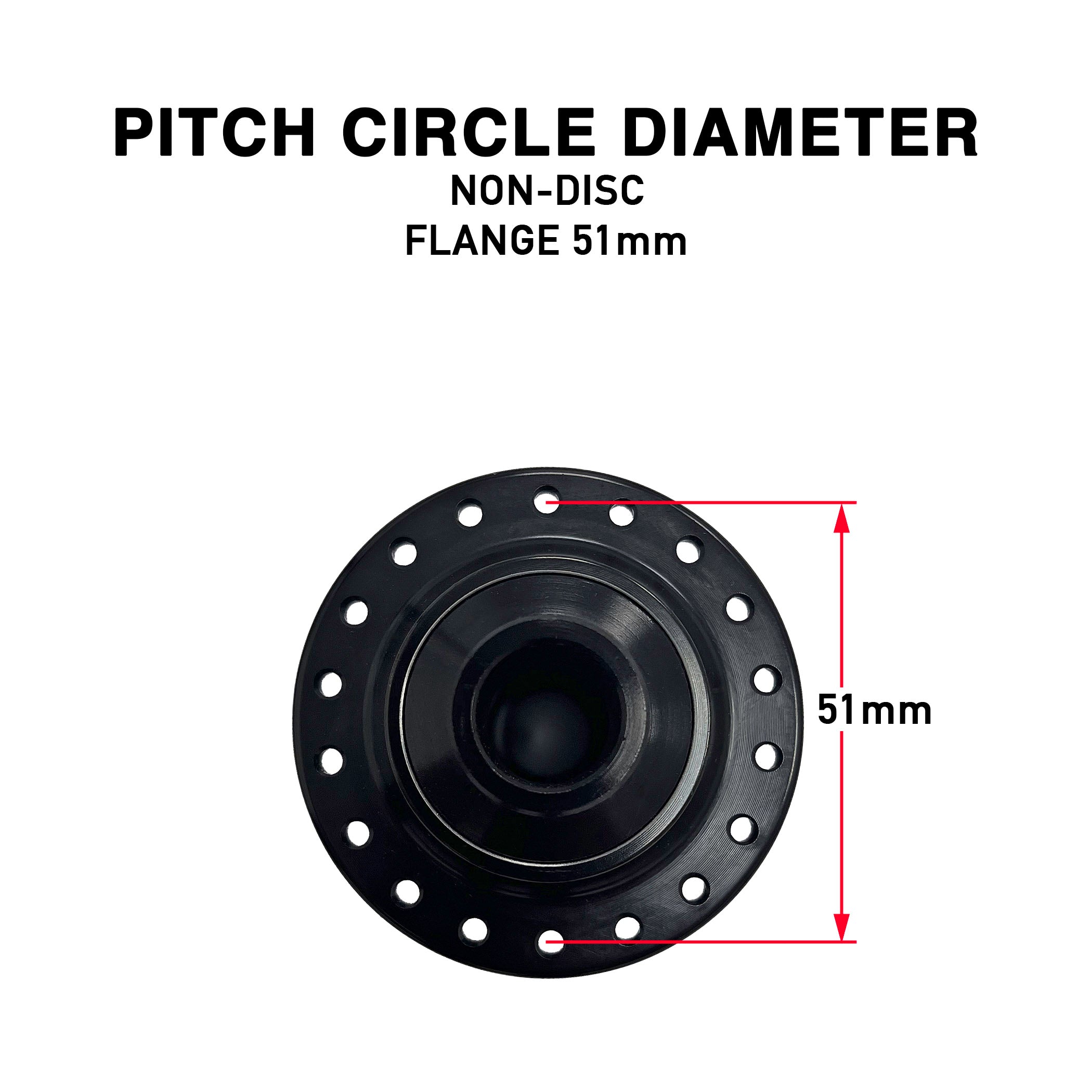

Flange PCD 51mm

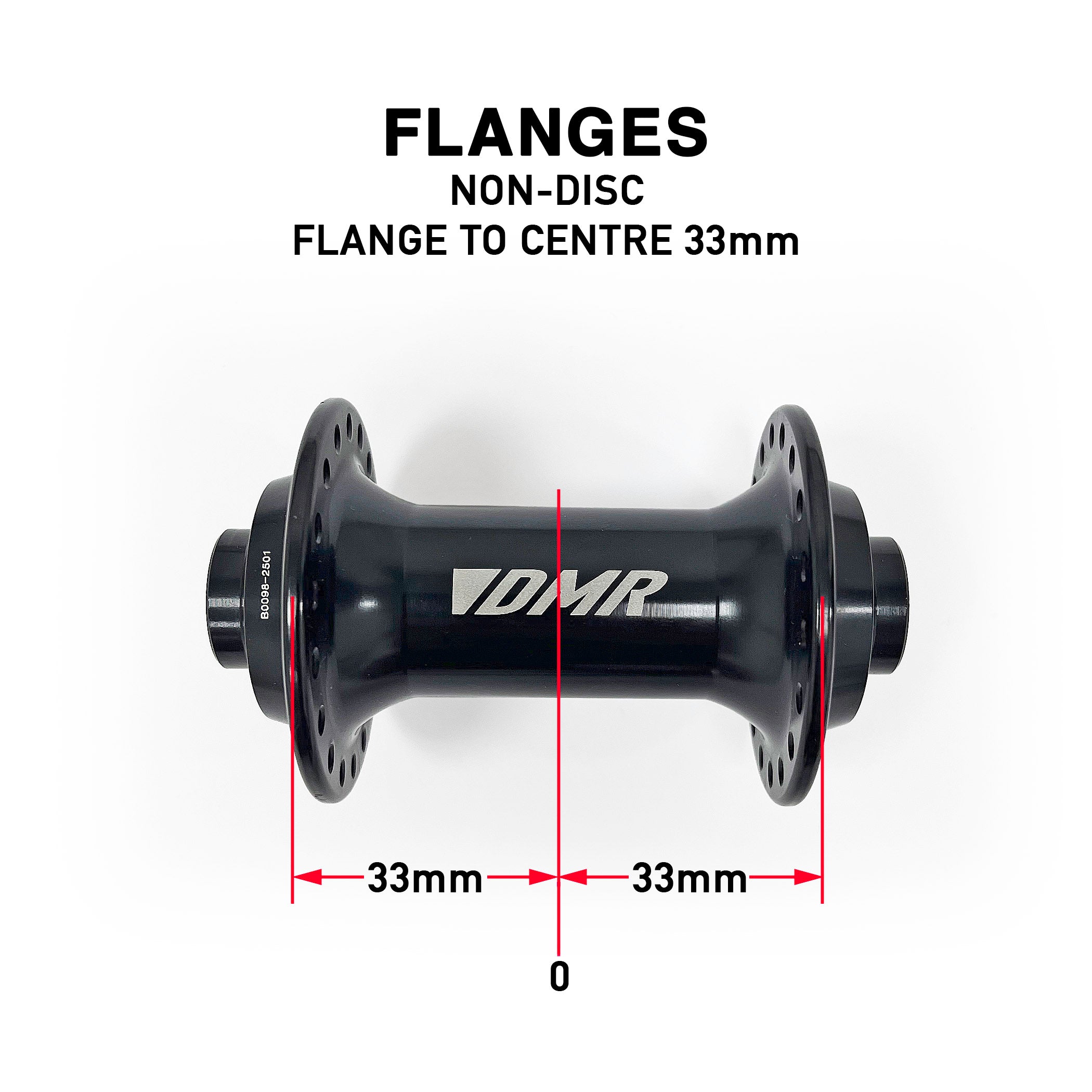

Flange to centre 33mm
SKU: DMR-HU-002-001
View details
Product Preview
Product Preview
“Features an aluminium hub shell, drilled for 36 spoke lacing, which is CNC finished to shave a little more weight yet retain the strength and durability that DMR is known for.”
— DMR Bikes
Product Preview
“Choose either brakeless hub version or our six-bolt brake rotor mount option, which keeps things simple, and two sealed, precision cartridge bearings keeps things rolling fast.”
— DMR Bikes
