DMR Cult Bottom Bracket

£40.00

Colour: Bottom Bracket
Size
Specification

CULT EURO BB
Cult Euro BB Kit includes:
• Left and Right Hand cups fitted with two custom bearings in each cut (please ignore the bearing number it is not correct).
• 1x Bearing spacer 19mm Ø ID 23mm Ø OD (Over All Diameter) 53mm Width [if you have a 68mm bottom bracket shell on your frame. please remove 5mm from this spacer using a pipe cutter].
• 1x Top Hat Spacer ID Ø19mm Shoulder Ø15/16” OD Ø 28mm 7mm Width.
• 1x Drive Side Face Bearing Spacer ID Ø19mm Shoulder Ø29.5mm OD Ø 30mm 2mm Width.
• 1x Non Drive Side Face Bearing Spacer ID Ø19mm Shoulder Ø29.5mm OD Ø 30mm 8mm.
Width
• 2x Crank Arm Spacer ID Ø19mm OD Ø 26mm 3mm Width.
• 2x Crank Arm Spacer ID Ø19mm OD Ø 26mm 1.5mm Width.
• 2x Crank Arm Spacer ID Ø19mm OD Ø 26mm 0.5mm Width.

CULT MID BB

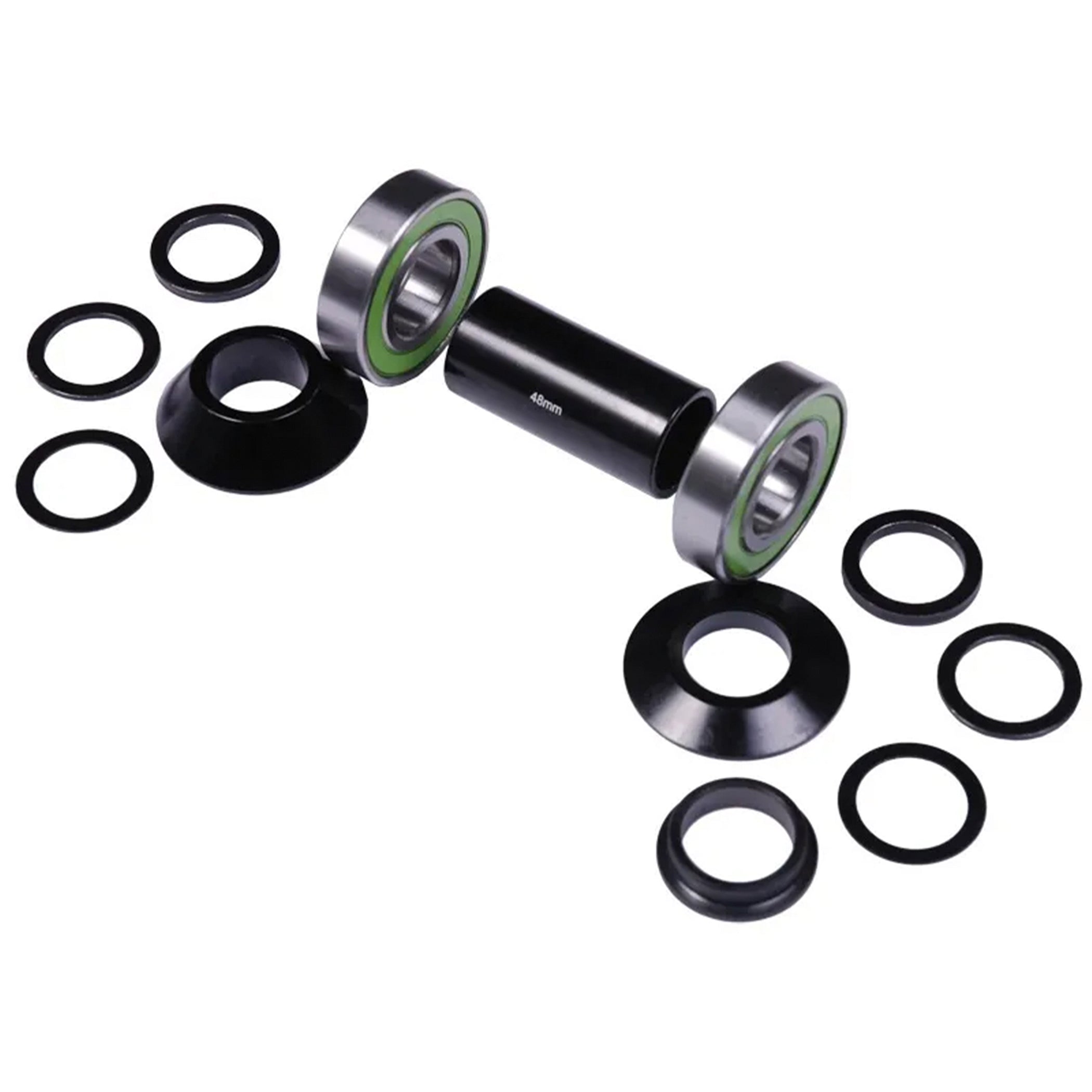

Cult Mid BB Kit includes:
• 2x R12-2RS bearings 19mm Ø ID 41mm Ø OD (Over All Diameter) 11mm Width.
• 1x Bearing spacer 19mm Ø ID 23mm Ø OD 48mm Width.
• 1x Top Hat Spacer ID Ø19mm Shoulder Ø15/16” OD Ø 28mm 7mm Width.
• 1x Drive Side Face Bearing Spacer ID Ø19mm Shoulder Ø30mm OD Ø 40.5mm 5mm Width.
• 1x Non Drive Side Face Bearing Spacer ID Ø19mm Shoulder Ø30mm OD Ø 40.5mm 13mm.
Width
• 2x Crank Arm Spacer - ID Ø19mm - OD Ø 26mm 3mm Width.
• 2x Crank Arm Spacer - ID Ø19mm - OD Ø 26mm 1.5mm Width.
• 2x Crank Arm Spacer - ID Ø19mm - OD Ø 26mm 0.5mm Width.
