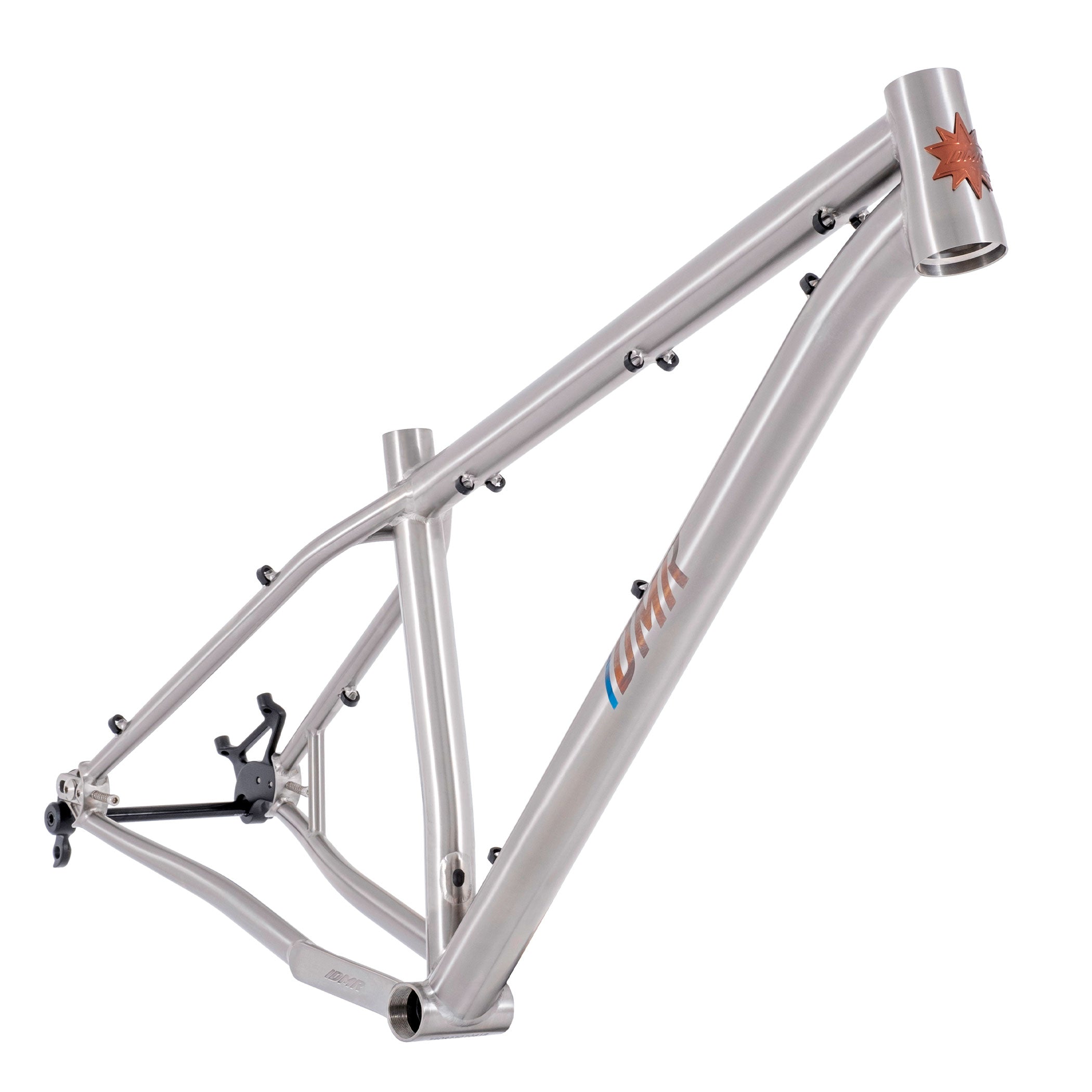

DMR Trailstar Titanium Bike Frame
DMR Trailstar Titanium Bike Frame, DMR Bikes
DMR Trailstar Titanium Bike Frame, DMR Bikes
DMR Trailstar Titanium Bike Frame, DMR Bikes
DMR Trailstar Titanium Bike Frame, DMR Bikes
DMR Trailstar Titanium Bike Frame, DMR Bikes
DMR Trailstar Titanium Bike Frame, DMR Bikes
DMR Trailstar Titanium Bike Frame, DMR Bikes

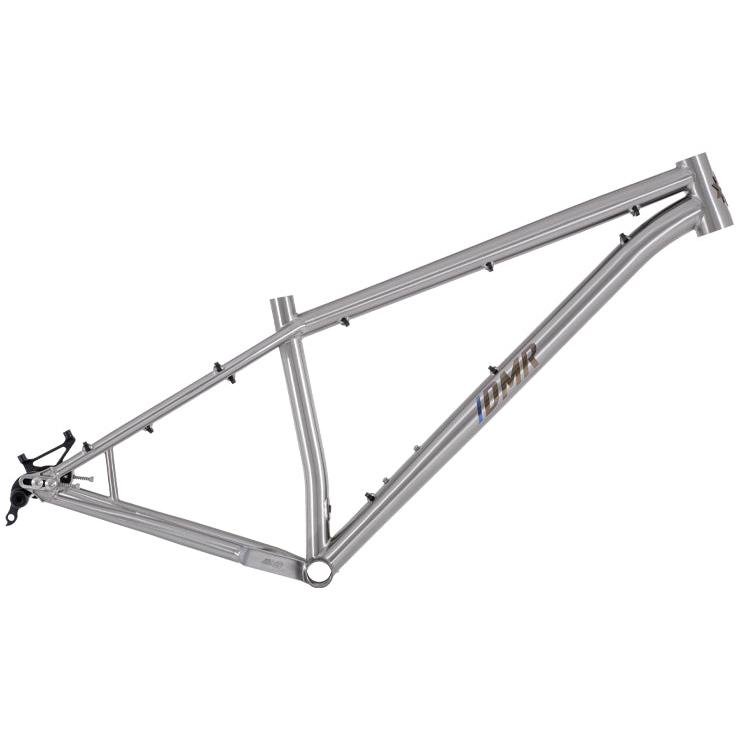

DMR Trailstar Ti Frame

£1,800.00
Colour: Titanium
Size
Description

The DMR Trailstar frame is now available in a limited-edition titanium version to celebrate the company's upcoming 30-year anniversary – the O.G. Trailstar was our first ever mountain bike frame.

The new Trailstar Ti comes with a long, low and stable geometry, featuring a slack headtube, steep seat tube and long reach numbers. The frame is sized by reach and is also designed to be used with a dropper post. For the first time, the Trailstar Ti has been designed to accommodate 29” wheels and optimised for a 140mm fork.

Titanium frame construction means a lighter frame, unbeatable quality and durability, and a unique riding feel that only titanium can give you.

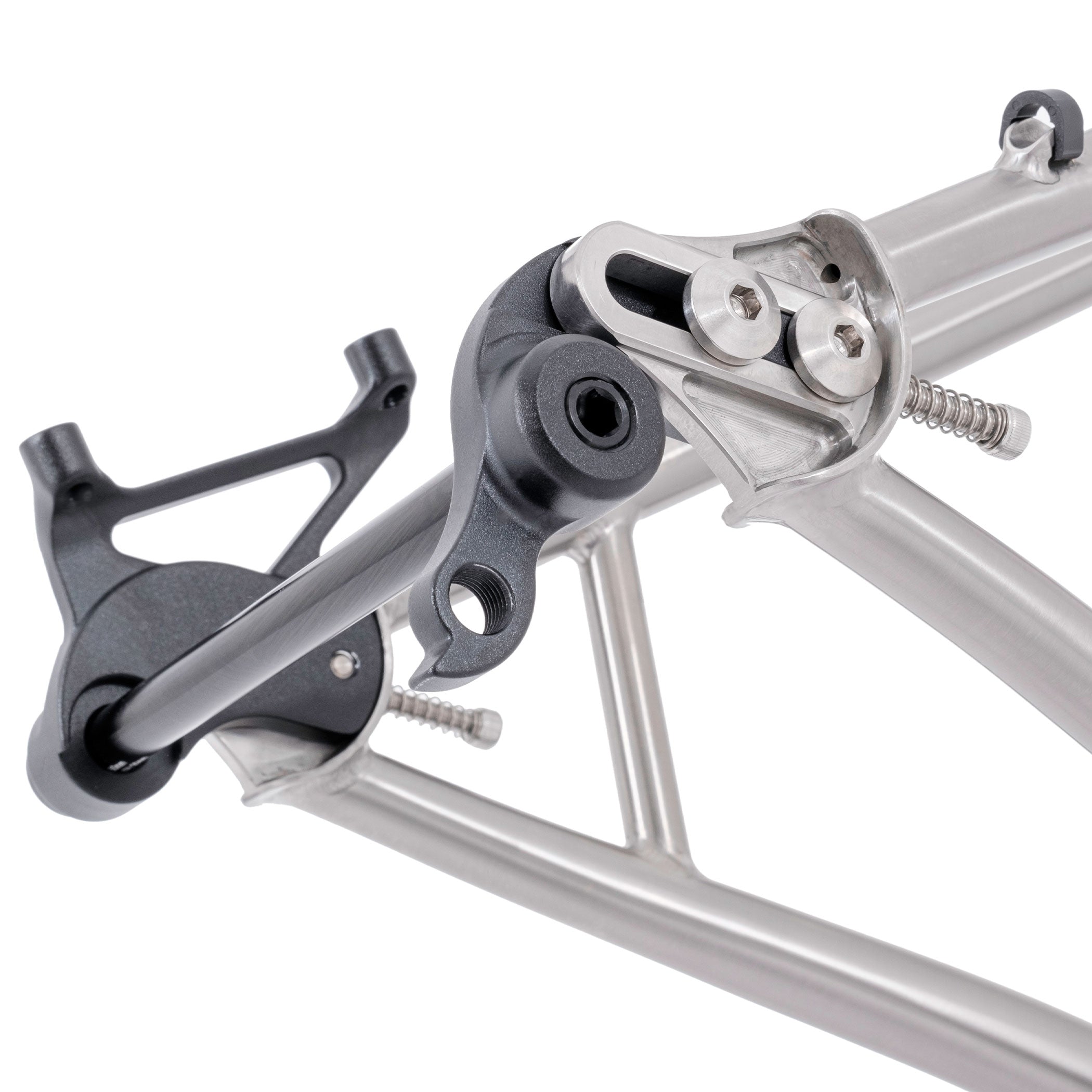

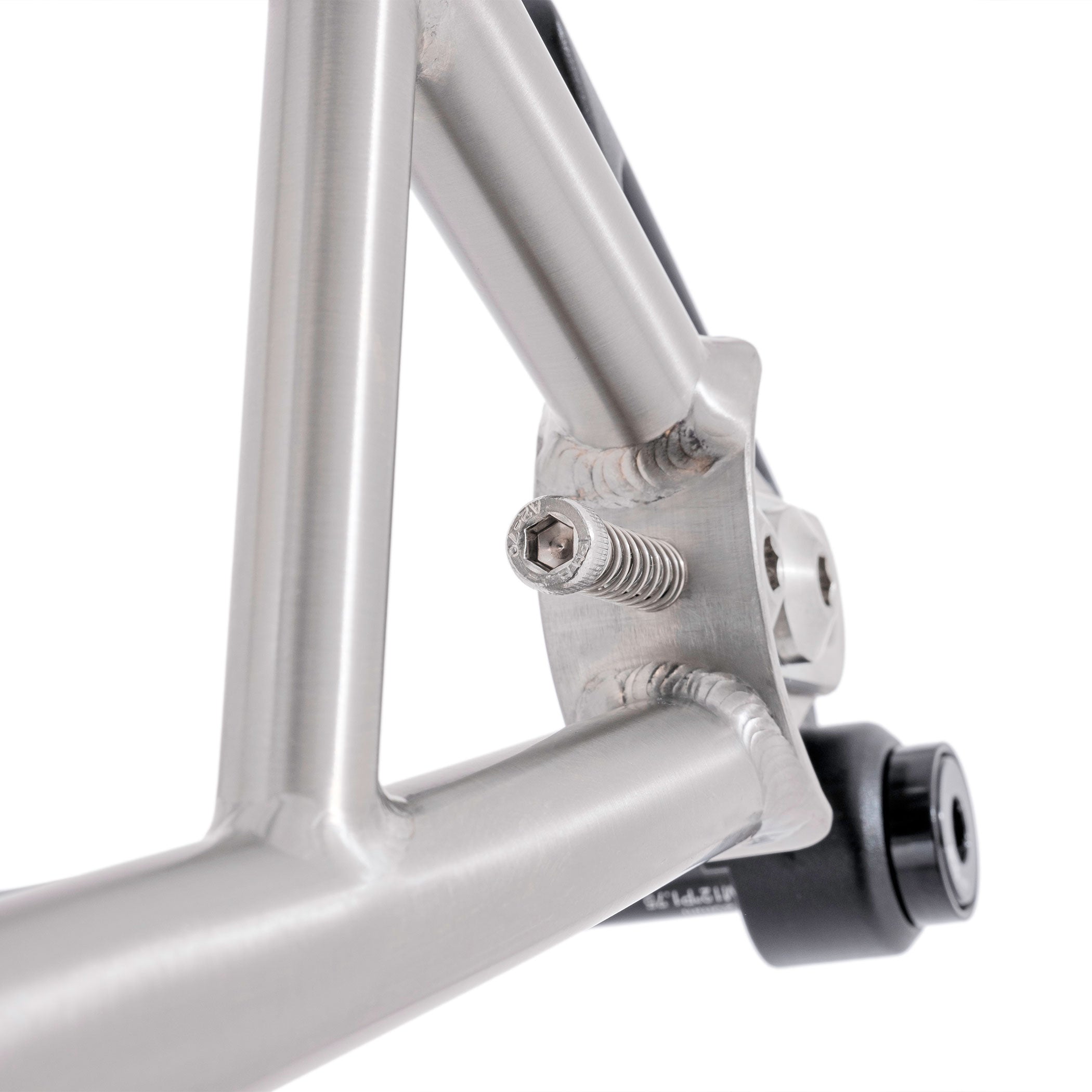

The horizontally adjustable dropouts allow you to fine-tune the Trailstar Ti's chainstay length according to your riding style, and it comes with the added benefit of single-speed capability. The GW Switch Lever Thru Axles come with a clean and simple design and can be fitted or removed using a 6mm hex key.

When choosing the size of the Trailstar Ti, consider your riding style and fit preferences instead of your height. Externally routed cables make servicing the bike easy, and it allows the use of a full-length outer cable to ensure that your Trailstar Ti runs smoothly even during the UK winter.

Ride a Trailstar Ti hardtail and you won’t go back.
Features

GEOMETRY LEADING DESIGN – Geometry is the number one factor in the handling of a mountain bike frame. The Trailstar Ti has been designed with forward-thinking geometry for the ultimate ride.
SIZE BY REACH – The Trailstar Ti features a length-based sizing system. Depending on how you like your fit, you can size up or down to according to reach. Thanks to the shorter seat tubes and long dropper posts, each size accommodates a wide range of riders.

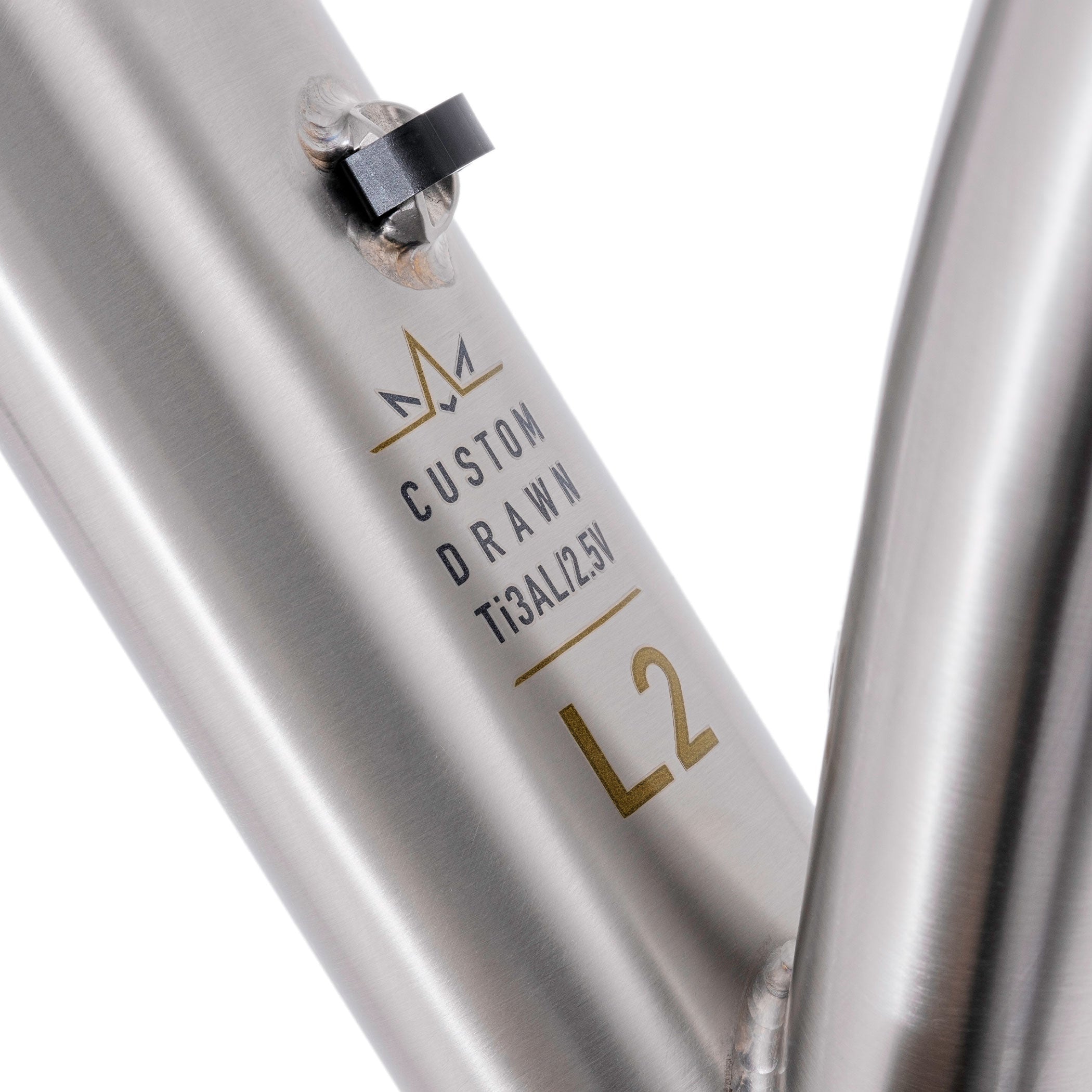

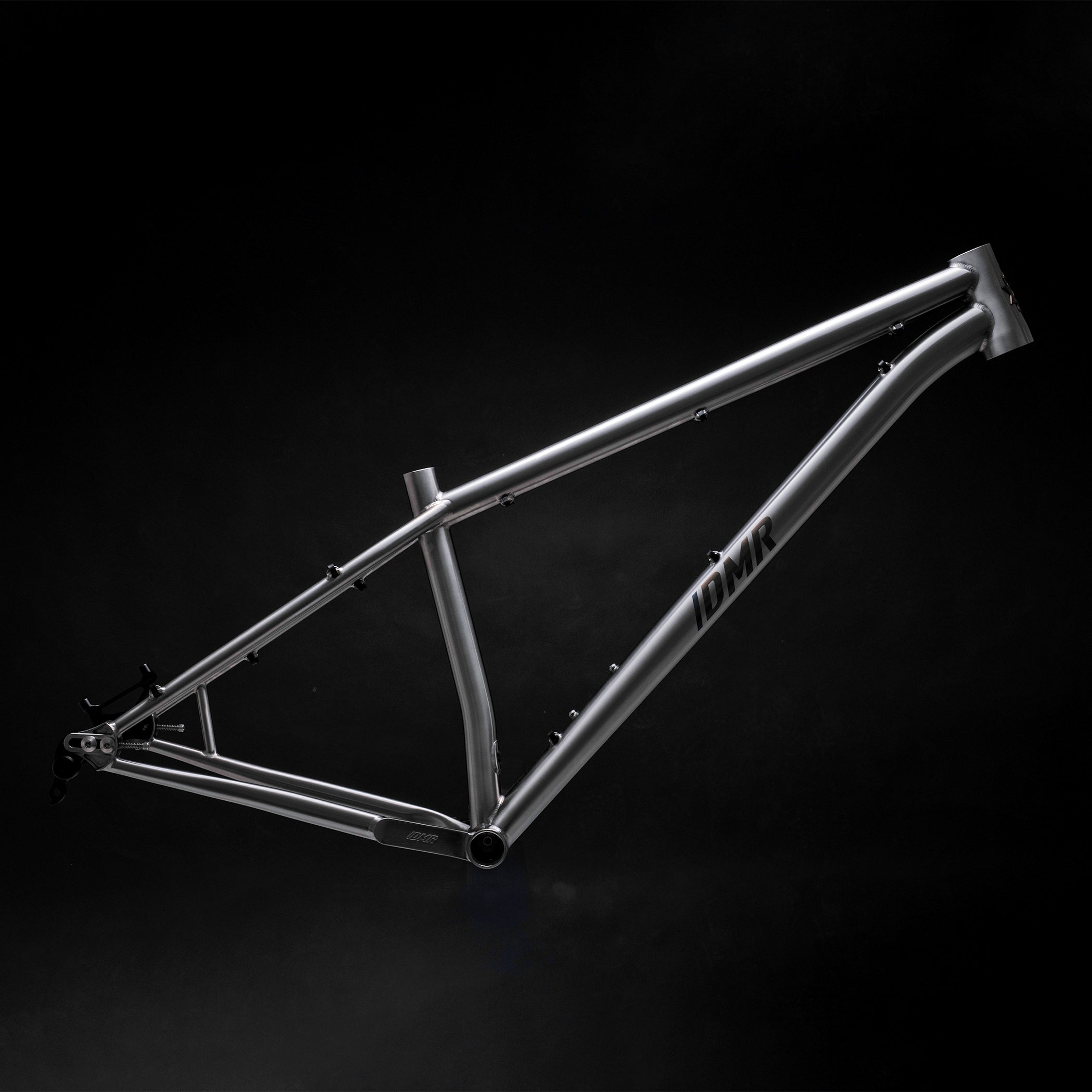

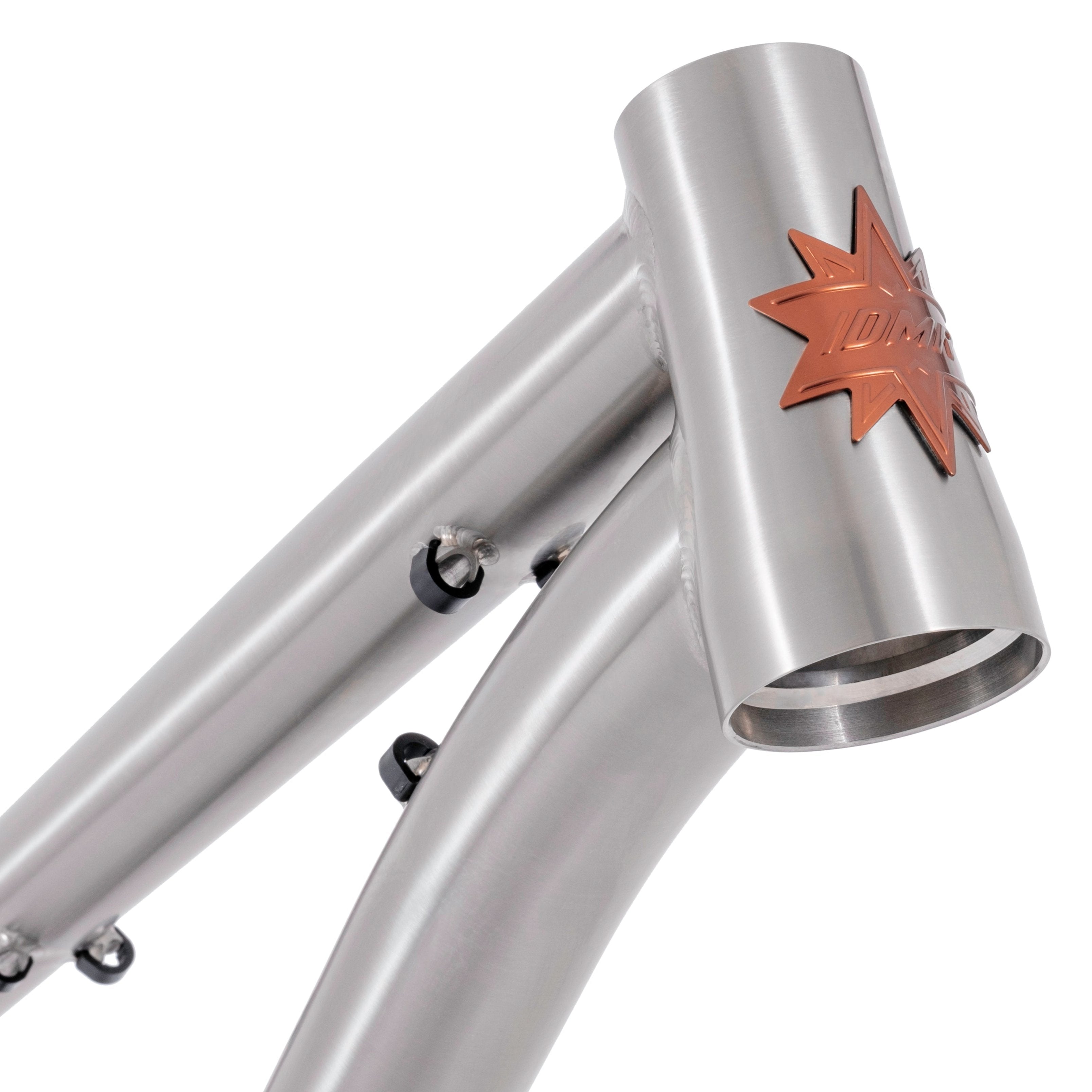

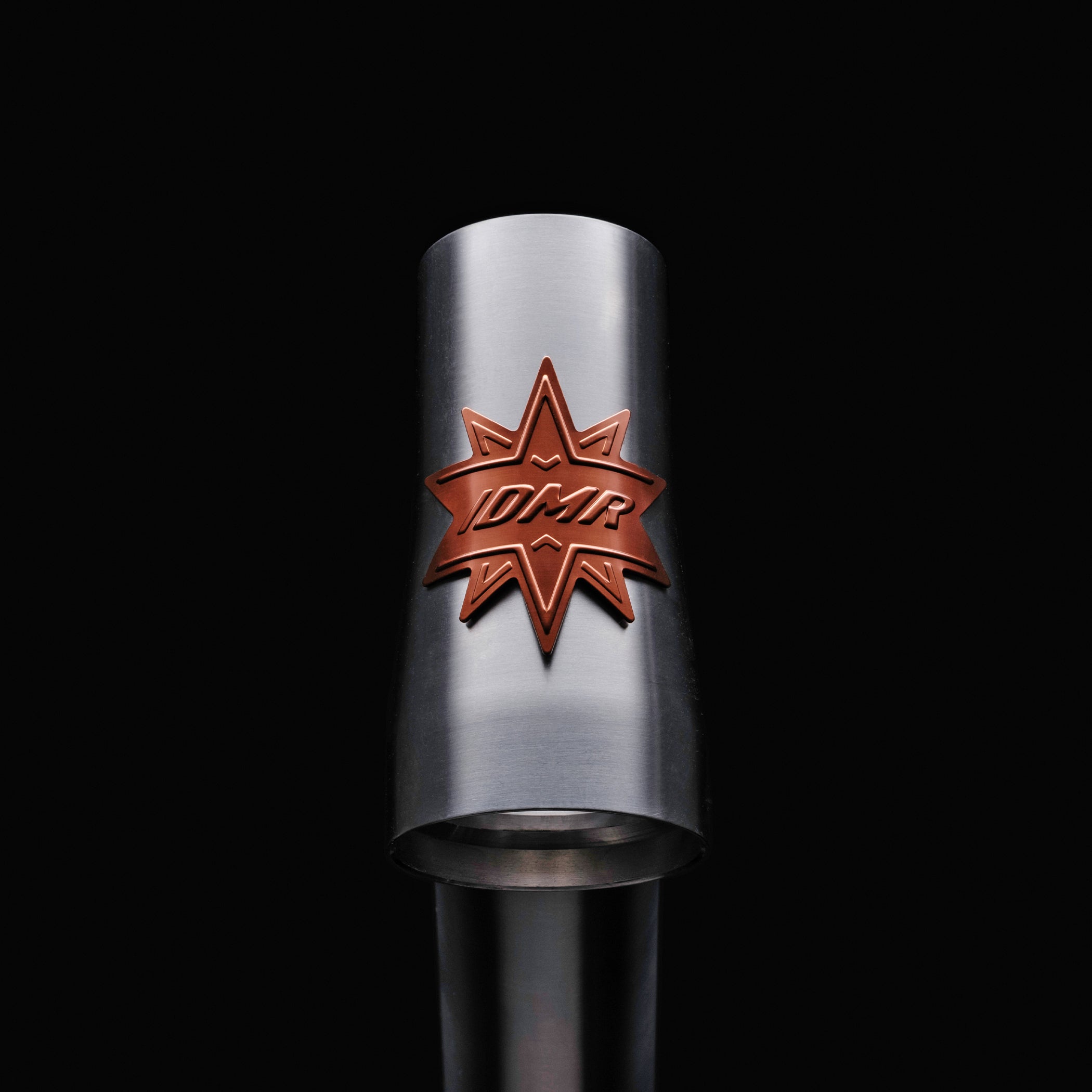

PREMIUM TITANIUM FRAMESET – The finest DMR Trailstar 3Al-2.5V titanium tubing used throughout, machined headtube, bottom bracket, dropouts.
BOOST REAR END – 148 x 12mm Boost rear axle spacing.

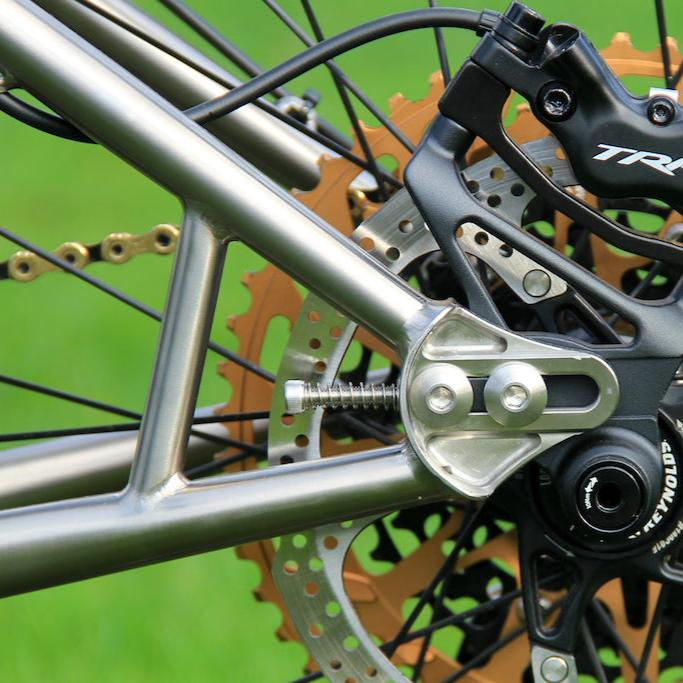

SLIDING DROPOUT SYSTEM – Sliding dropout system
for chain tensioning and adjusting chainstay length.
LOW STANDOVER – creating loads of room, making the bike more manoeuvrable and playful.
RIDER-DESIGNED PRODUCT – Inspired by riding,
perfected by the DMR team.
Specification

• 3Al-2.5V titanium tubing
• Clearance for 29 x 2.5” tyres
• 148 x 12mm Boost rear axle spacing
• Adjustable sliding dropouts

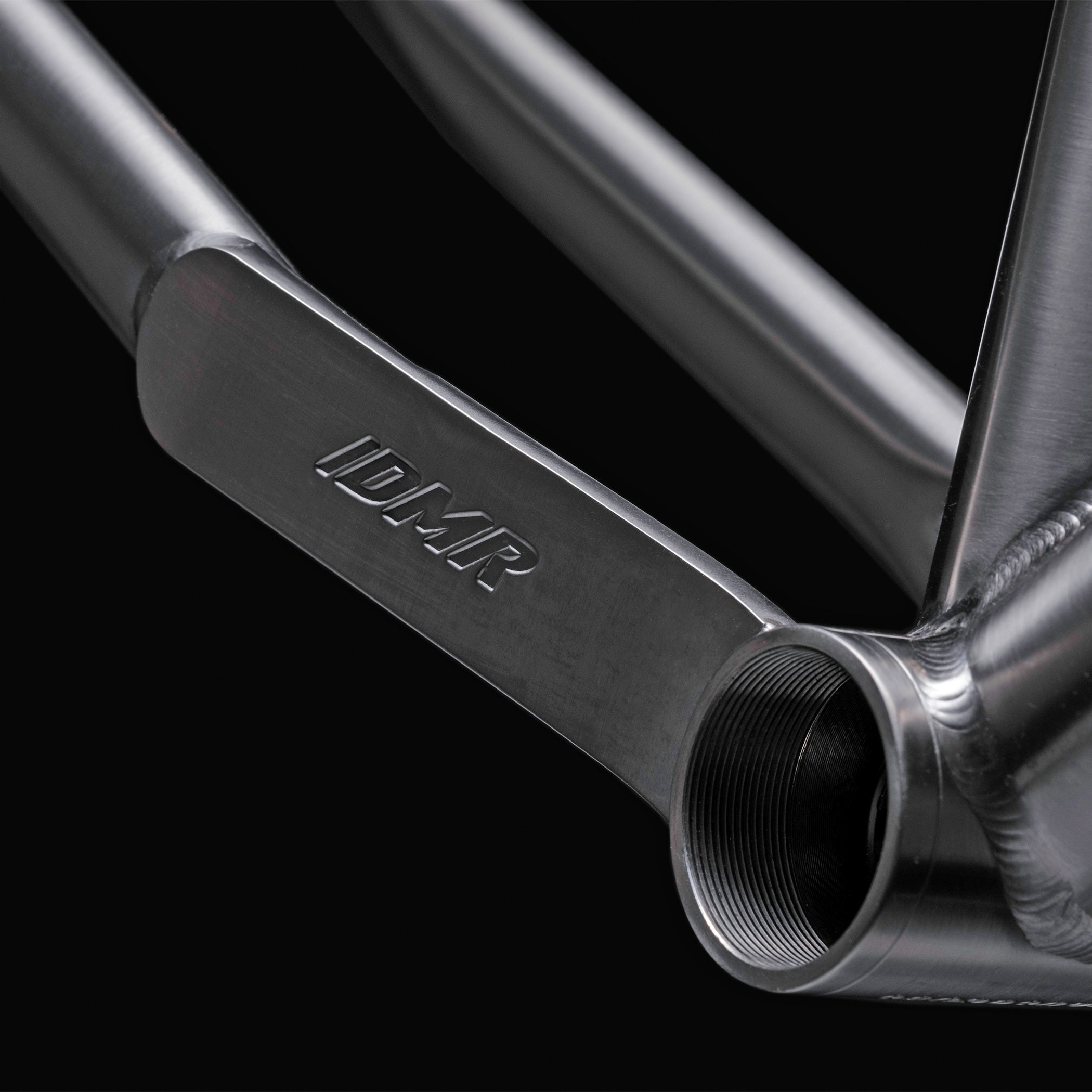

• 73mm threaded BB shell
• 31.6mm seat post required.
• Headset required: Tapered integrated
• GW ‘Switch Lever’ rear axle.
• Sizes: L2, L3
• Colours: Raw Ti
• Weight: 2.1kg (L3 frame)
• Frame is supplied with dropouts and rear axle
• Warranty: 5 years.
Geometry



L2
 L3
A Seat Tube Length 395 430
B Top Tube Length (effective) 619 641
C Head Tube Length 110 110
D Head Tube Angle 64.5° 64.5°
E Seat Tube Angle 76° 76°
F Bottom Bracket Drop 65 65
G Chain Stay Length 425 425
H Front Centre 793 816
I Wheel Base 1210 1234
J Stack 638 646
K Reach 460 480

Fork Axle to Crown 551 551

Max. Seat Post Insertion 241 264



All lengths in mm.
SKU: DMR-F-TRAILTI-L2
View details
MEDIA REVIEW
MEDIA REVIEW
"In true "winter bike" spirit, the Titanium Trailstar runs external cable routing, save for the dropper post cable for which there is a port at the base of the seat tube. There's a 73mm threaded bottom bracket shell, a tapered integrated headset, and it runs a 31.6mm seat post. The Trailstar is available now, with only 25 in each size. Get one direct through the DMR website, or a local retailer."
— PINKBIKE
MEDIA REVIEW
"The DMR Trailstar is making a comeback, this time in titanium. The 1996 original was a 26" wheeled chromoly steel affair that became a thing of legend amongst hardtail fans in the UK."
— PINKBIKE
