DMR Rhythm Team

£1,800.00

Features

6061 T6 Aluminium Alloy frameset.
Use: Dirt Jump/4X Race/Street/Park/Pumptrack.
For 26” wheels.
Available in one size fits most (equivalent to “long” Rhythm frameset).
Interchangeable dropouts: 142x12mm geared or 135x10mm single speed (available separately).
Sliding dropout system for chain tensioning and adjusting chainstay length.
Air sprung fork.
DMR bar, stem and saddle.
Tektro hydraulic brakes front and rear.
DMR Moto DJ tyres.
Complete with DMR pedals.

Specification

Frame DMR 6061 T6 Aluminium Alloy
Fork Rockshox Pike DJ 100mm Tapered Steerer 15mm Thru Axle
Headset FSA Orbit C Cartridge
Handlebar DMR SECT 31.8 Aluminium 740mm 1.5” rise
Stem DMR 3D Forged 40mm
Seat/Seatpost DMR DJ 27.2

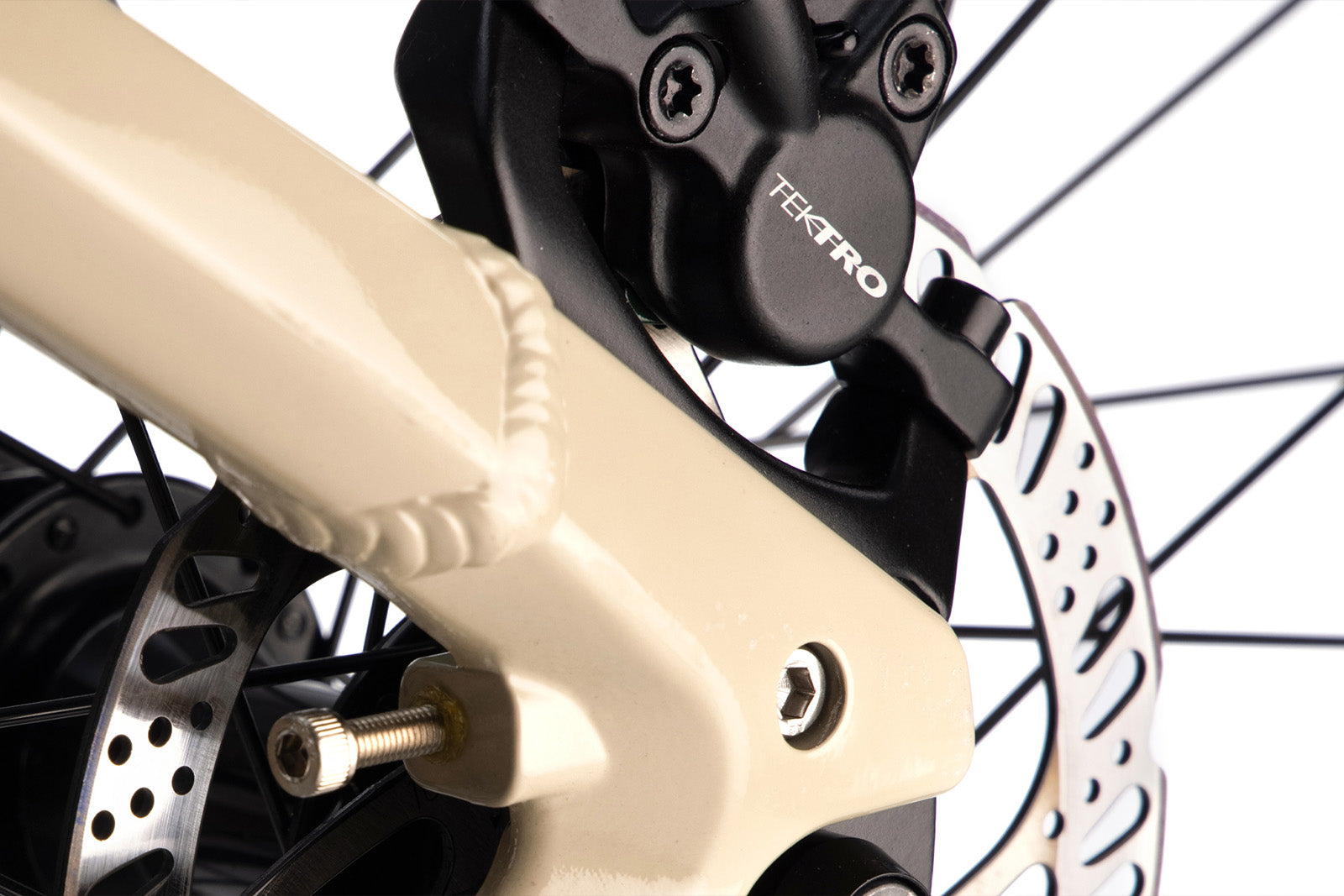

Brakes Tektro M275 Hydraulic 180mm Front and 160mm Rear
Crankset 170mm 30T DM Crank Arms w/ integrated 24mm Axle
Wheels 26” Double Wall Rims on KT DJ hubs w/ 5 Pawl 13t Driver
Tyres DMR Moto DJ 26x2.2" Folding Bead 120tpi
Chainring 30t
Freewheel 13t Driver
Chain YBN MK918 Half Link Black
Pedals DMR V6
Grips DMR Sect
Weight 11.90kg

Geometry

Head Tube Angle 69.5°
Seat Tube Angle 71°
Front Centre 674
Top Tube Length (Actual) 579
Seat Tube Length 330
Bottom Bracket Drop 20
Stack 569
Reach 420
Head Tube Length 120
Seat Post Size Ø31.6
Seat Clamp Size Ø34.9
Wheelbase 1058
Chain Stay Length 385
Recommended Fork Length 483
Recommended Fork Offset 45

All dimensions in mm

The range topping Rhythm Team comes fully equipped with everything you need to get at it, sending big lines with composure and style.

With a stout frame constructed from 6061 T6 aluminium alloy the DMR Rhythm dirt jump bike is light enough to fly, yet strong enough to shred all day long. The integrated sliding dropouts make adjusting chain tension a breeze. Dropouts are also interchangeable with our Rhythm geared dropouts if you want to change your setup later down the line.

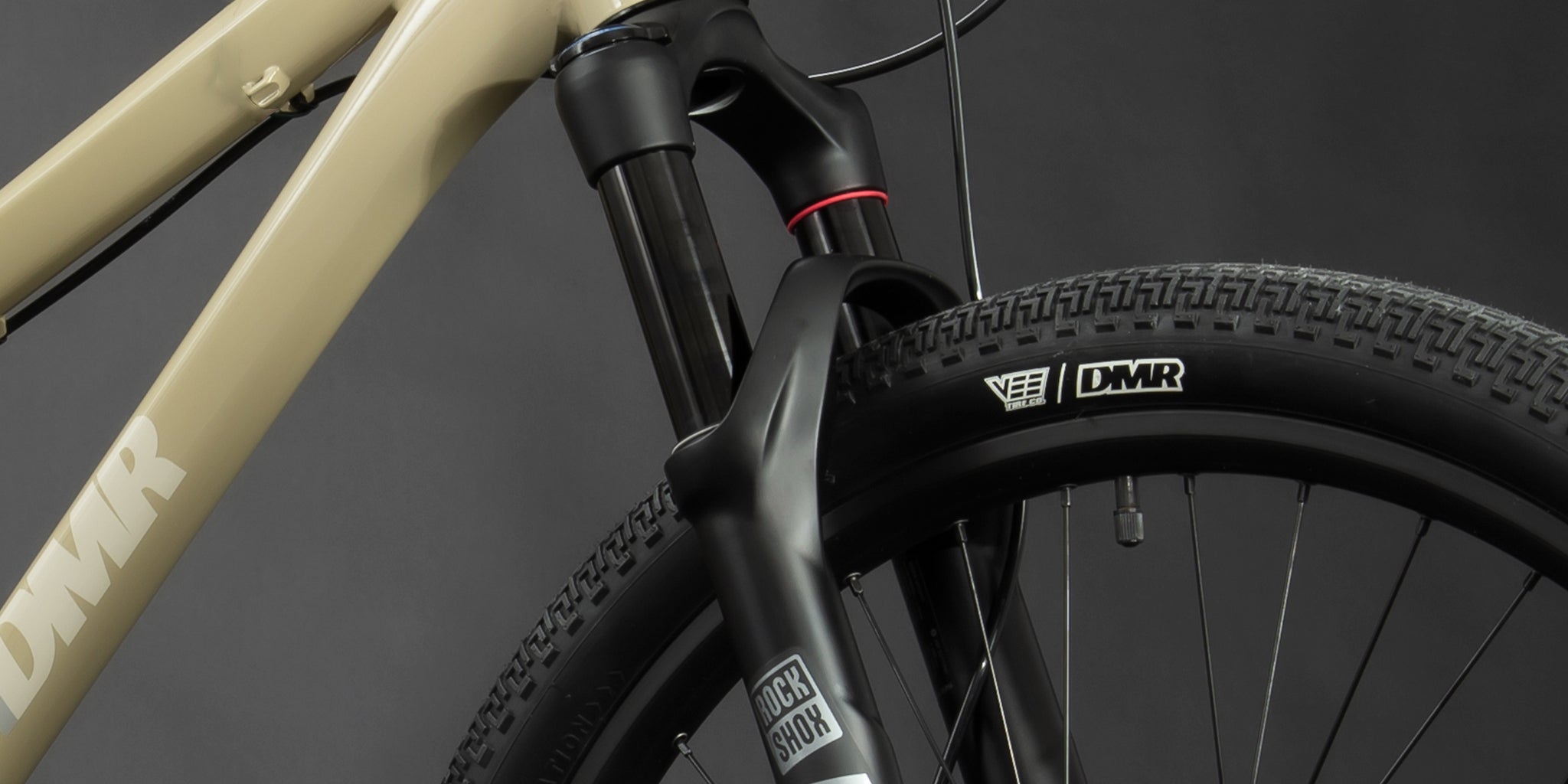

On this Team model, suspension duties are handled by the brilliant Pike DJ fork, with Solo Air spring and Charger damper with a dirt jump specific tune. This premium and highly adjustable fork delivers unbeatable performance for the most demanding on riders, and it looks incredible too.

The rest of the components are carefully selected with performance and strength in mind. Highlights include a DMR cockpit, DMR Moto DJ Tyres and Tektro Hydraulic brakes on the front and rear.
