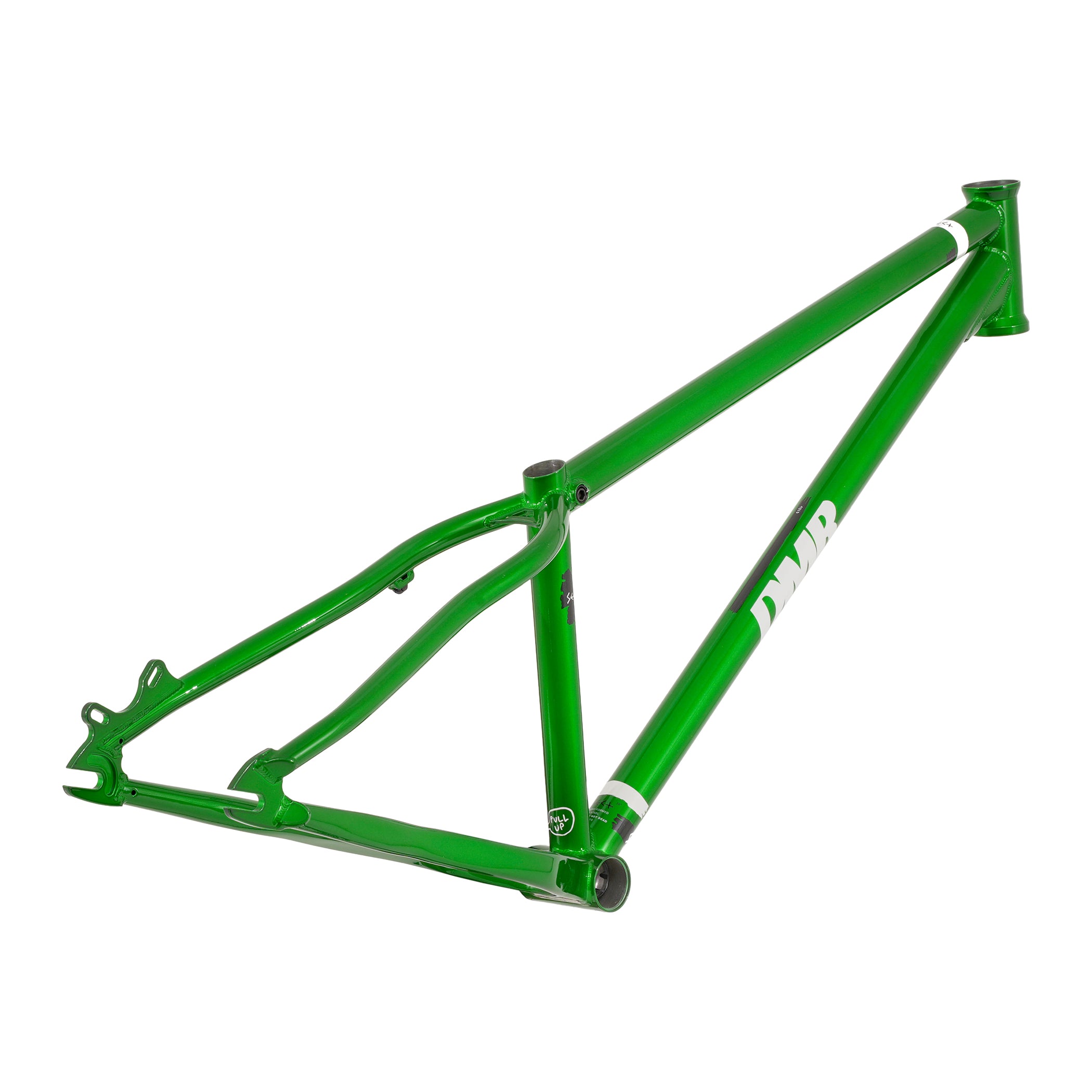

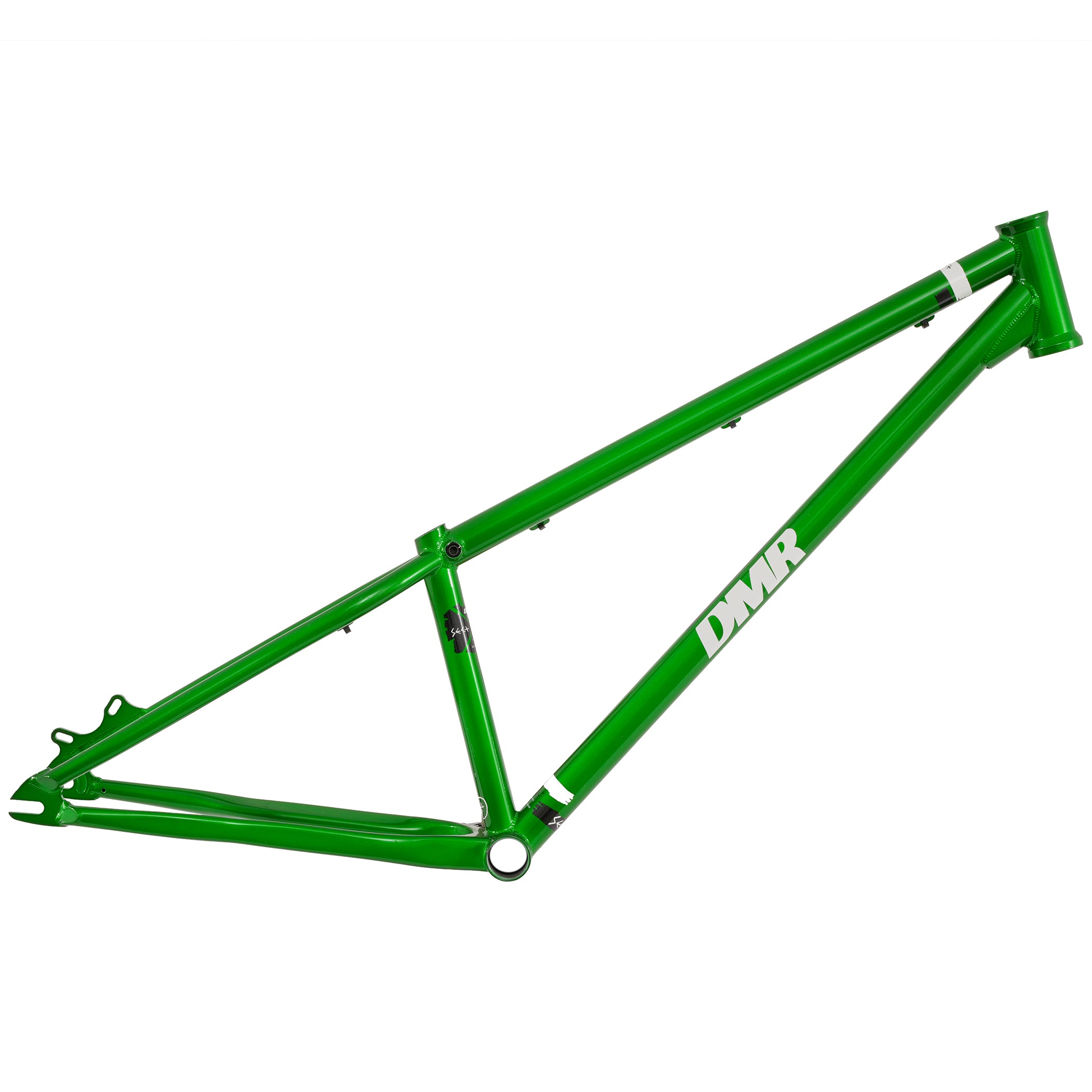

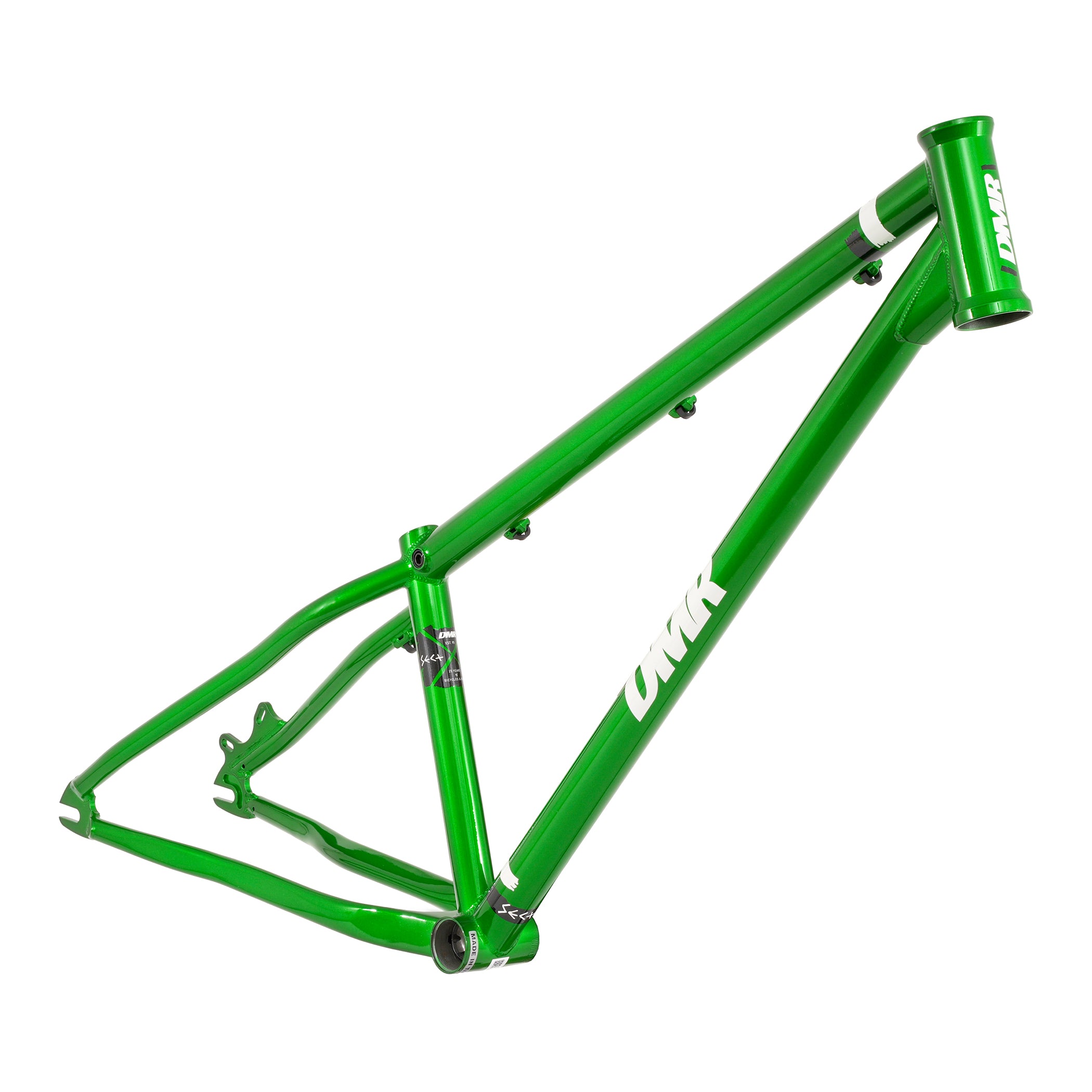

DMR Sect Frame

£240.00
Colour: Envy Green
8 in stock
Description

This was the frame used on DMR Bikes' first generation Sect bikes and is built using a 4130 chromoly tubeset to keep the weight down and strength up.

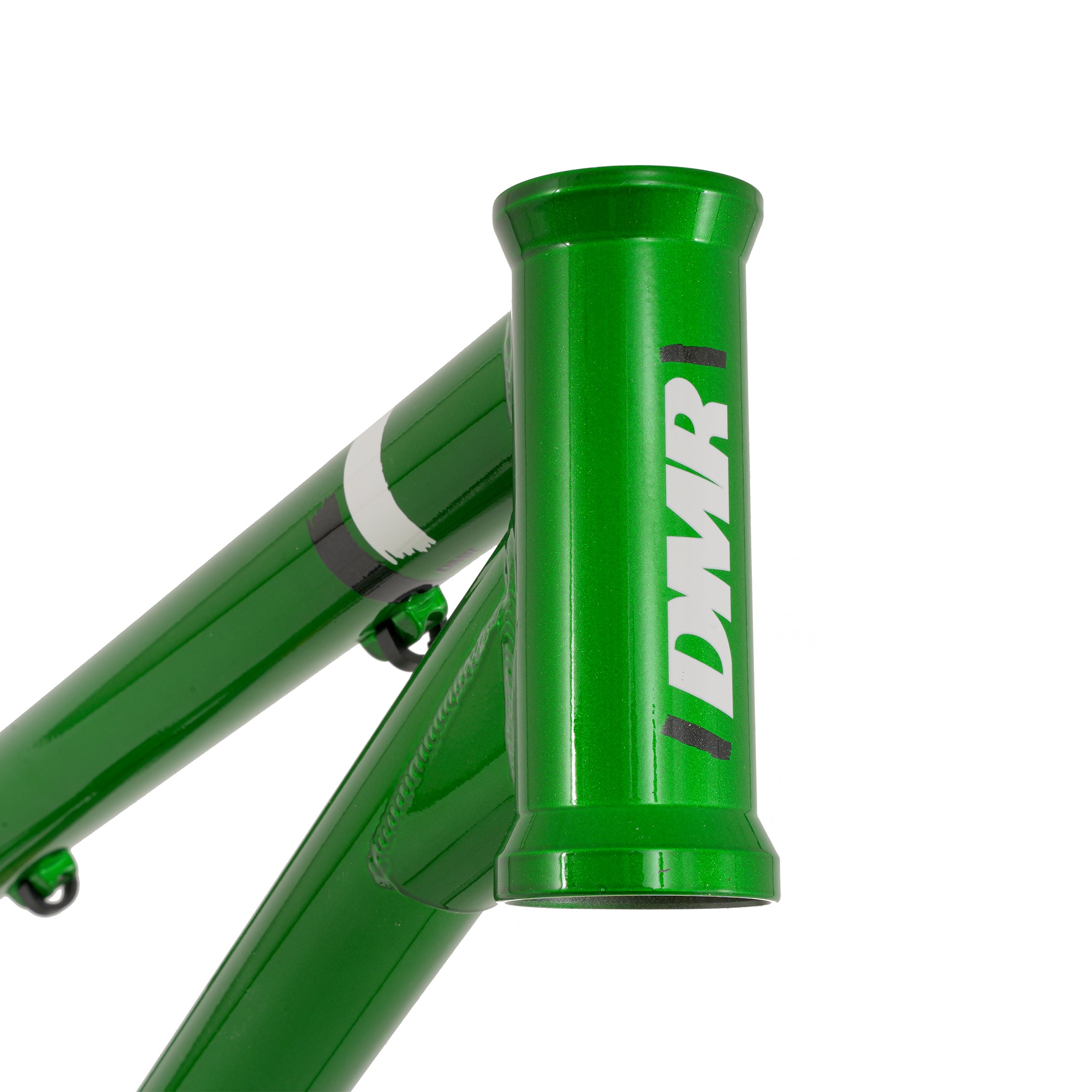

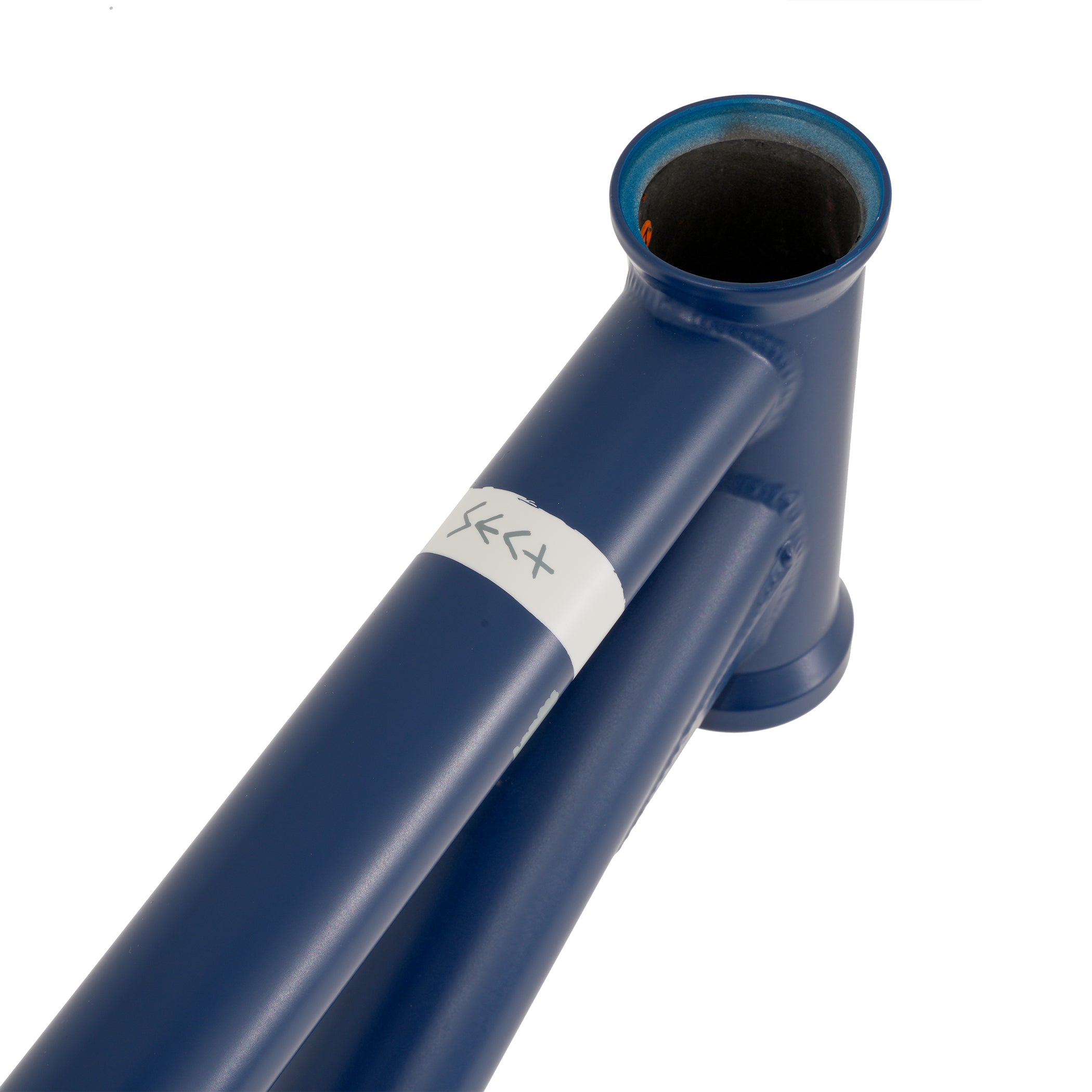

This Sect frame has a 1.1/8” head tube, so will only accept 1.1/8" straight steerer forks.

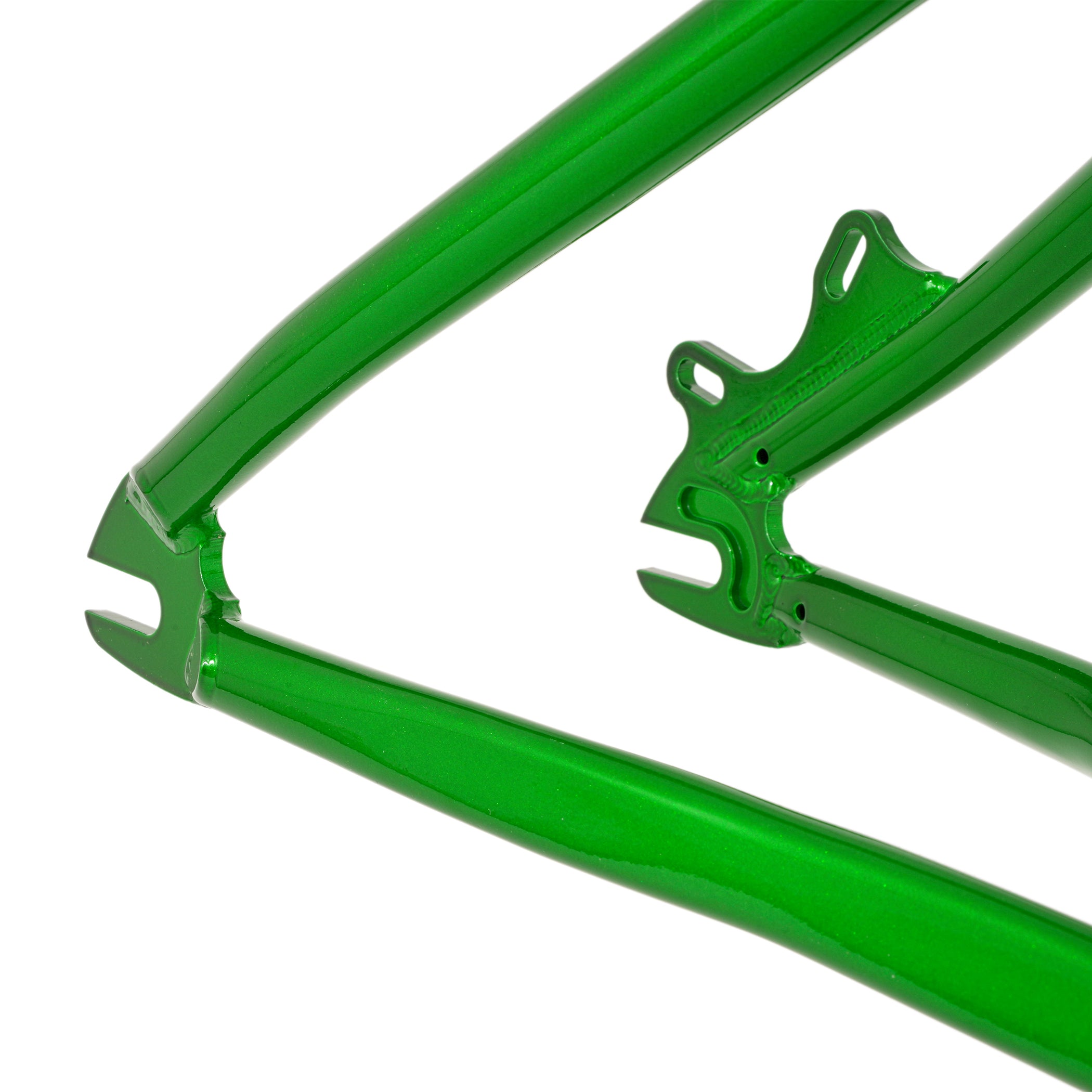

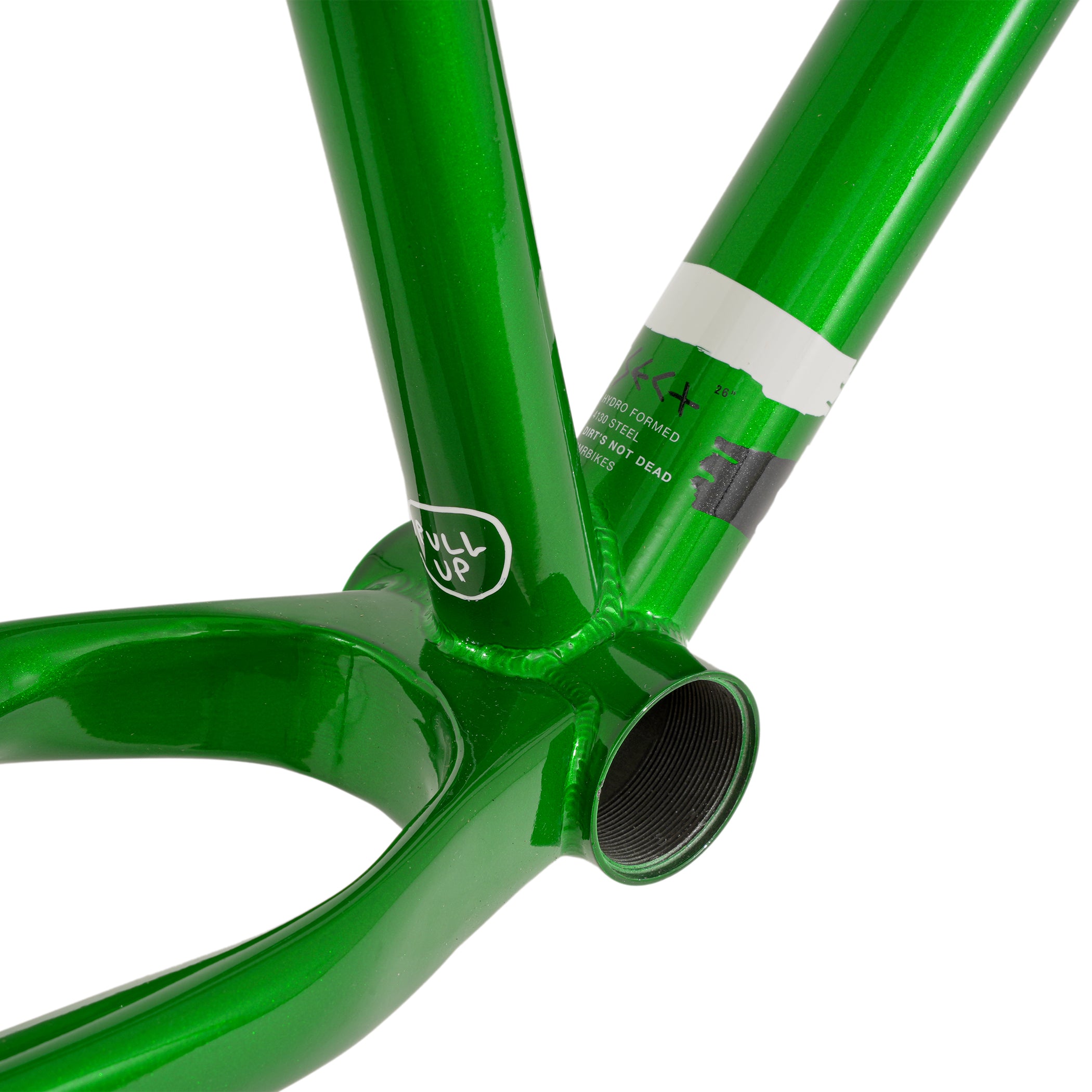

On the rear, hydroformed chainstay yokes have been designed to shorten the rear end, making it easier to pop manuals and spin rotation tricks.
Specification
  • 1 1/8” headtube, requiring 1 1/8 integrated headset.
  • 68mm BSA threaded BB shell.
  • Suitable for 100mm travel, 1.1/8" straight steerer fork.
  • Rear disc mounts.

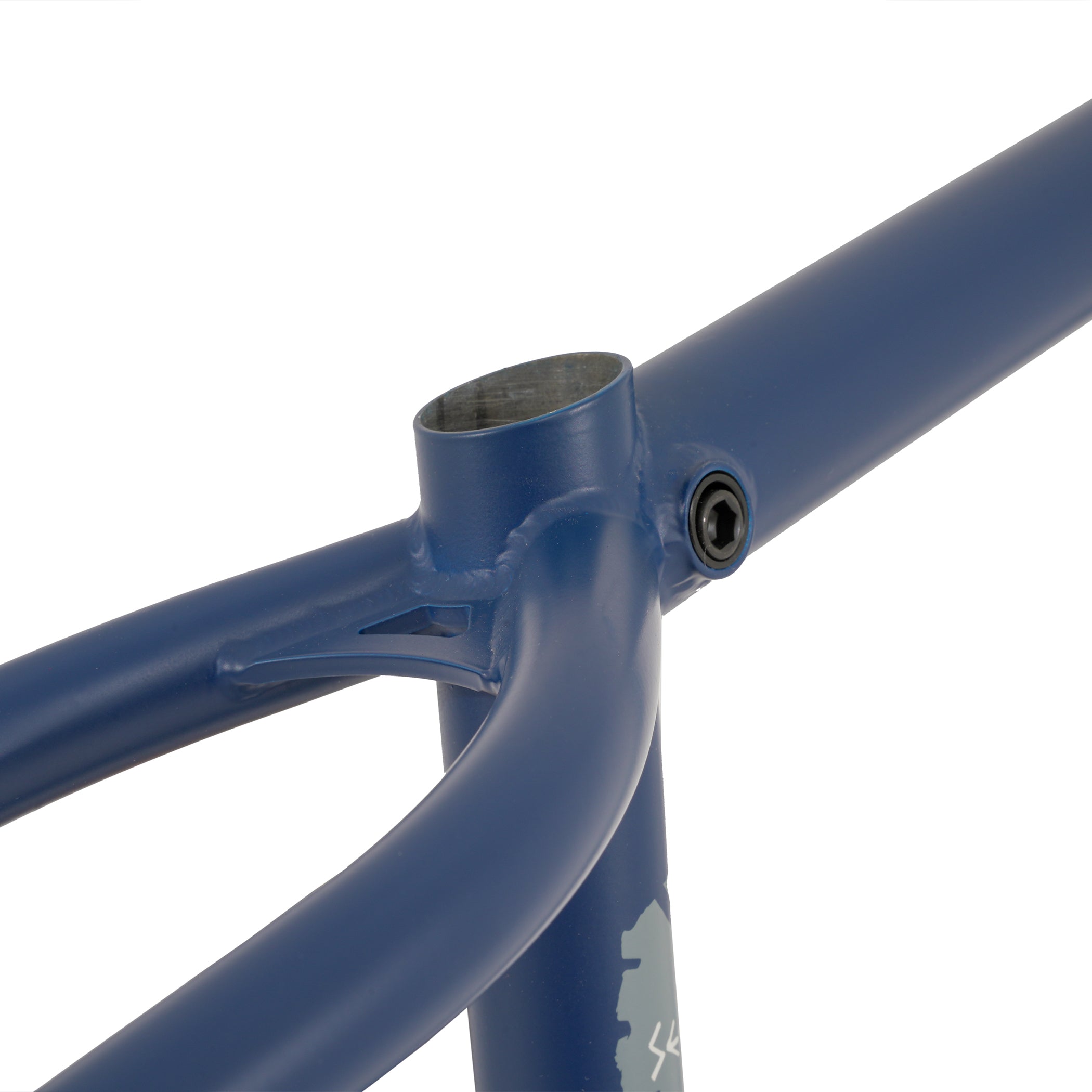

  • Integrated seat clamp.
  • 27.2mm seat post required.
Geometry
A Seat Tube Length 280
B Top Tube Length 570
C Head Tube Length 117
D Head Tube Angle 69°
E Seat Tube Angle 72°
F Bottom Bracket Drop 15
G Chain Stay Length N/A
H Front Centre 650
I Wheel Base 1041
J Stack 570
K Reach 394

Recommended Fork Length N/A

Recommended Fork Offset N/A



All lengths in mm.
SKU: DMR-F-SECT26-EG
