Rhythm Team Bike

...FOR THE TRAILS

DMR Rhythm Team

£1,800.00

Features

ALUMINIUM FRAMESET – DMR Rhythm 6061 T6 Aluminium Alloy frameset, designed specifically for Dirt Jump/4X Race/Street/Park/Pumptrack
PREMIUM SIZE – Available in one size fits most (equivalent to “long” Rhythm frameset).
INTERCHANGEABLE DROPOUTS – 142x12mm geared or 135x10mm single speed (available separately).

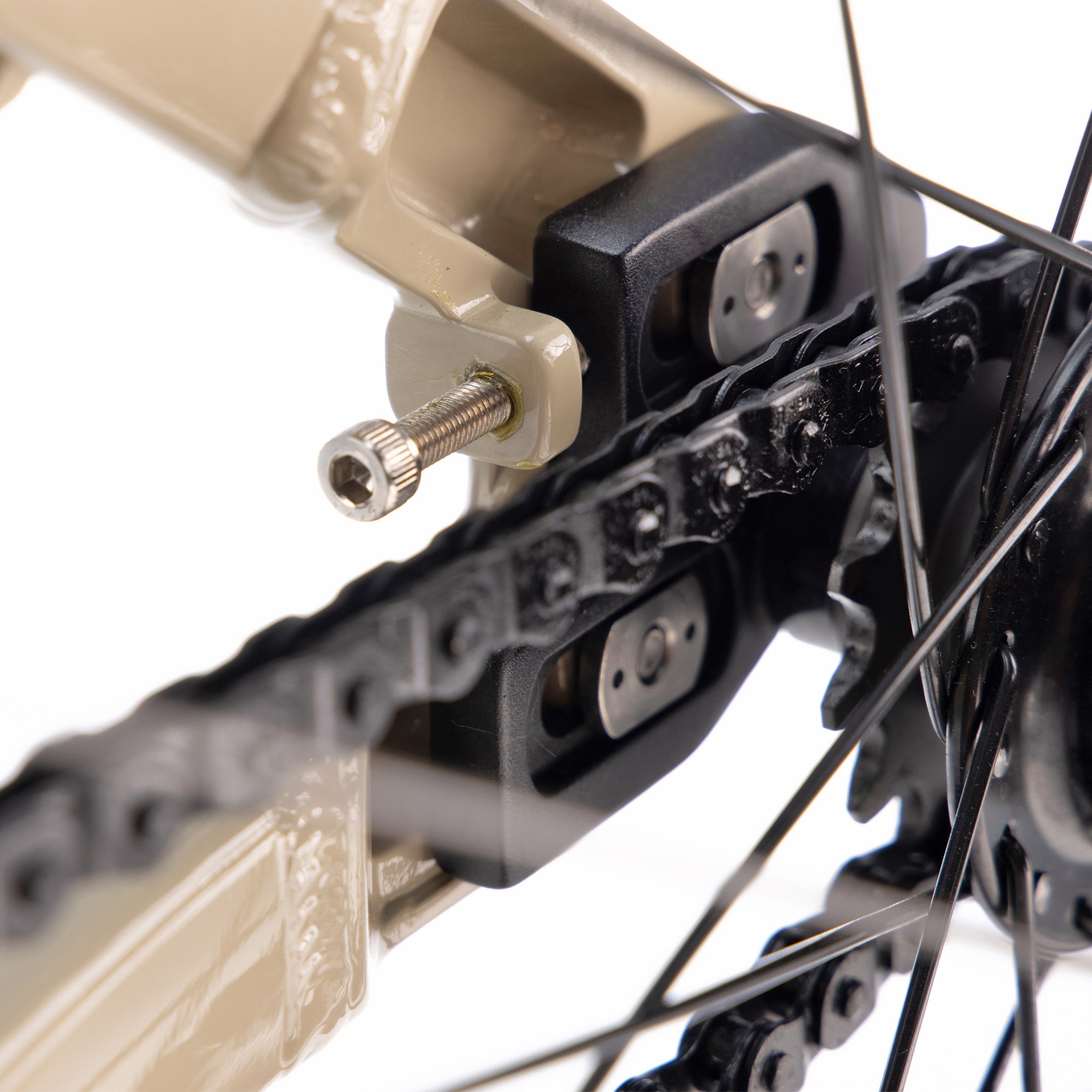

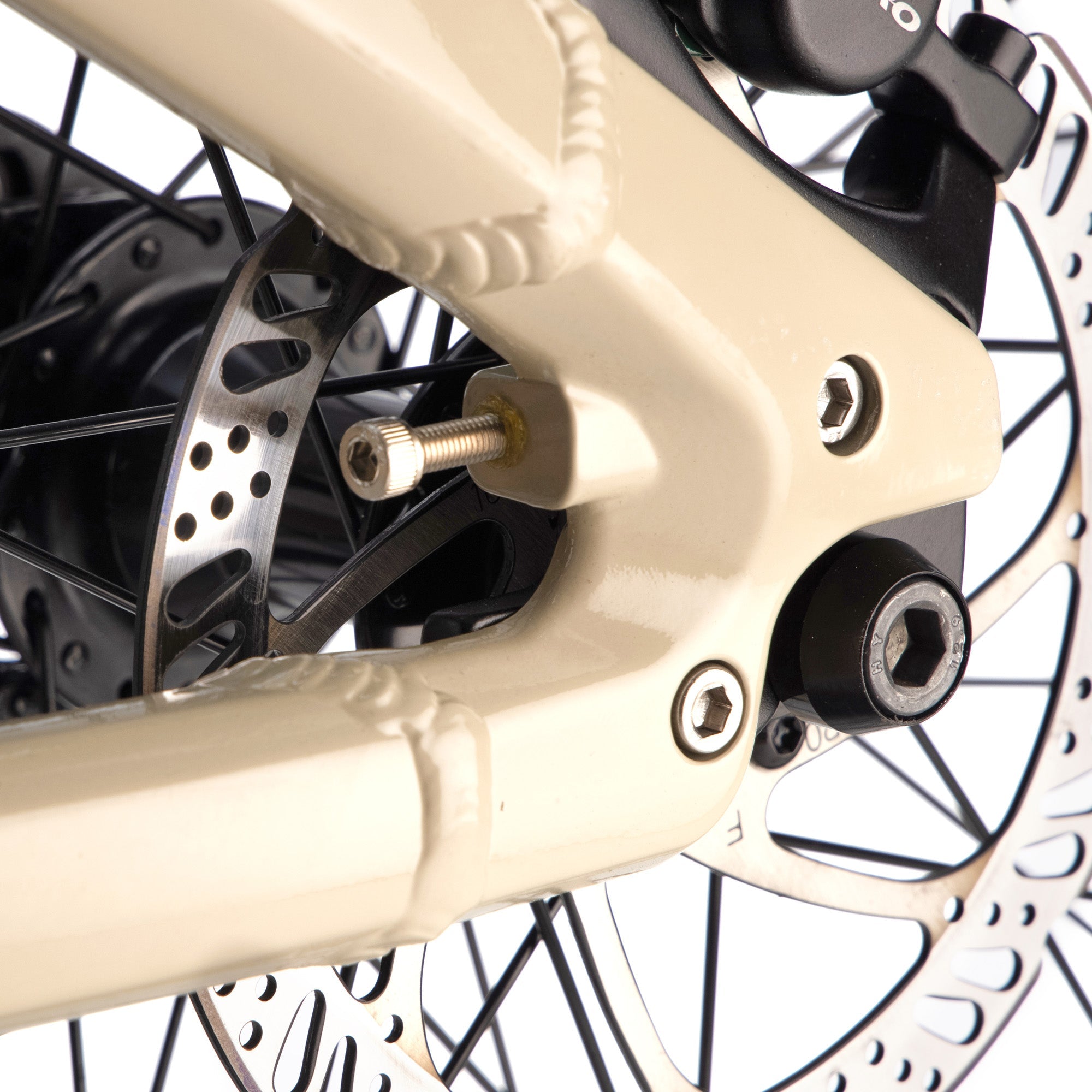

SLIDING DROPOUT SYSTEM – Sliding dropout system for chain tensioning and adjusting chainstay length.

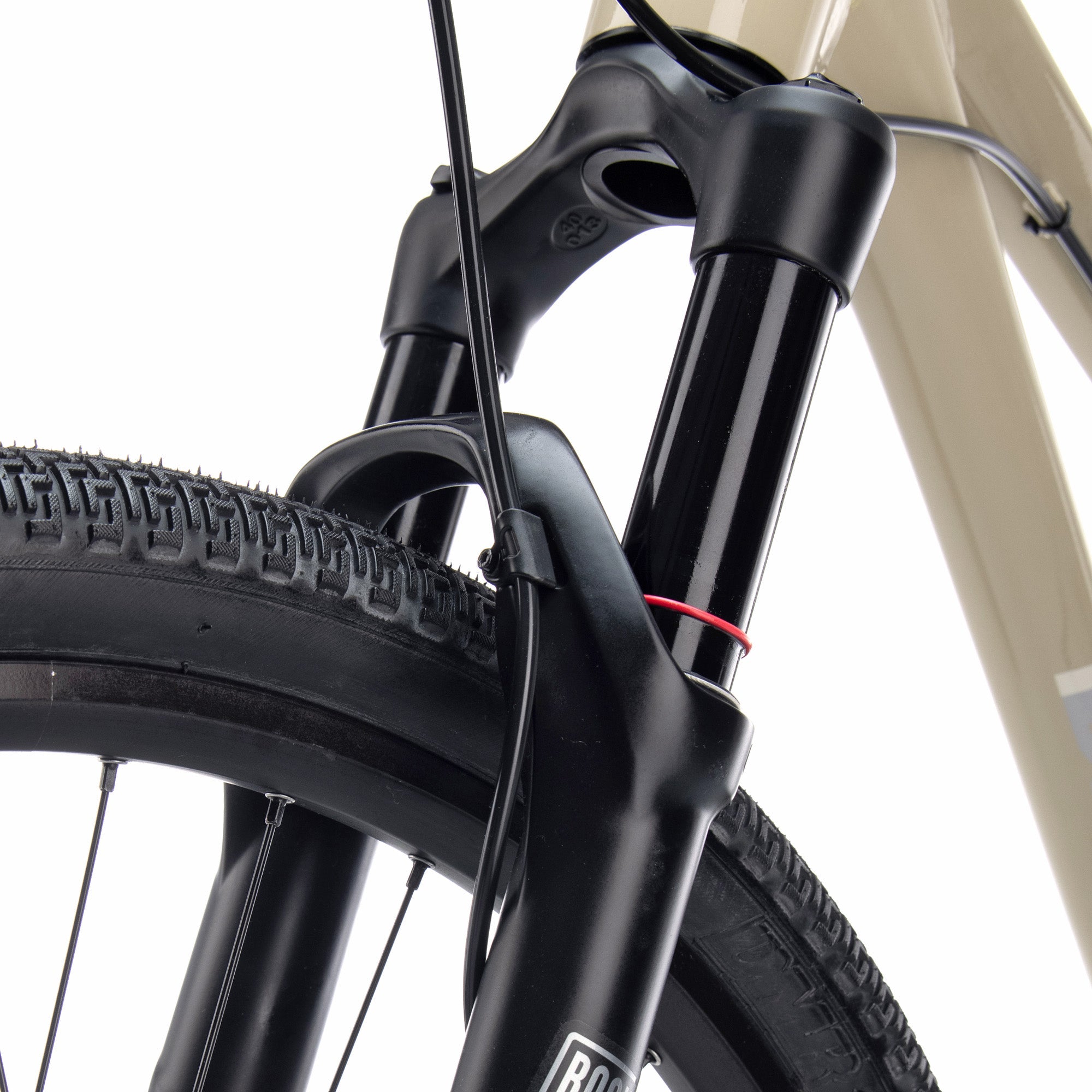

DIRT JUMP FORKS – Rock Shox Pike DJ, 100mm travel, tapered steerer, with 15mm Thru Axle.
DMR DJ PARTS – DMR handlebars, stem and DJ saddle, complete with DMR V6 pedals and Moto DJ
tyres.
HYDRAULIC BRAKES – Tektro hydraulic brakes front and rear.

Specification

Colour - Sand Brown
Frame - DMR 6061 T6 Aluminium Alloy
Fork - Rockshox Pike DJ 100mm Tapered Steerer 15mm Thru Axle
Headset - FSA Orbit C Cartridge
Handlebars - DMR 31.8mm Aluminium 740mm 1.5" Rise
Stem - DMR 3D Forged 40mm

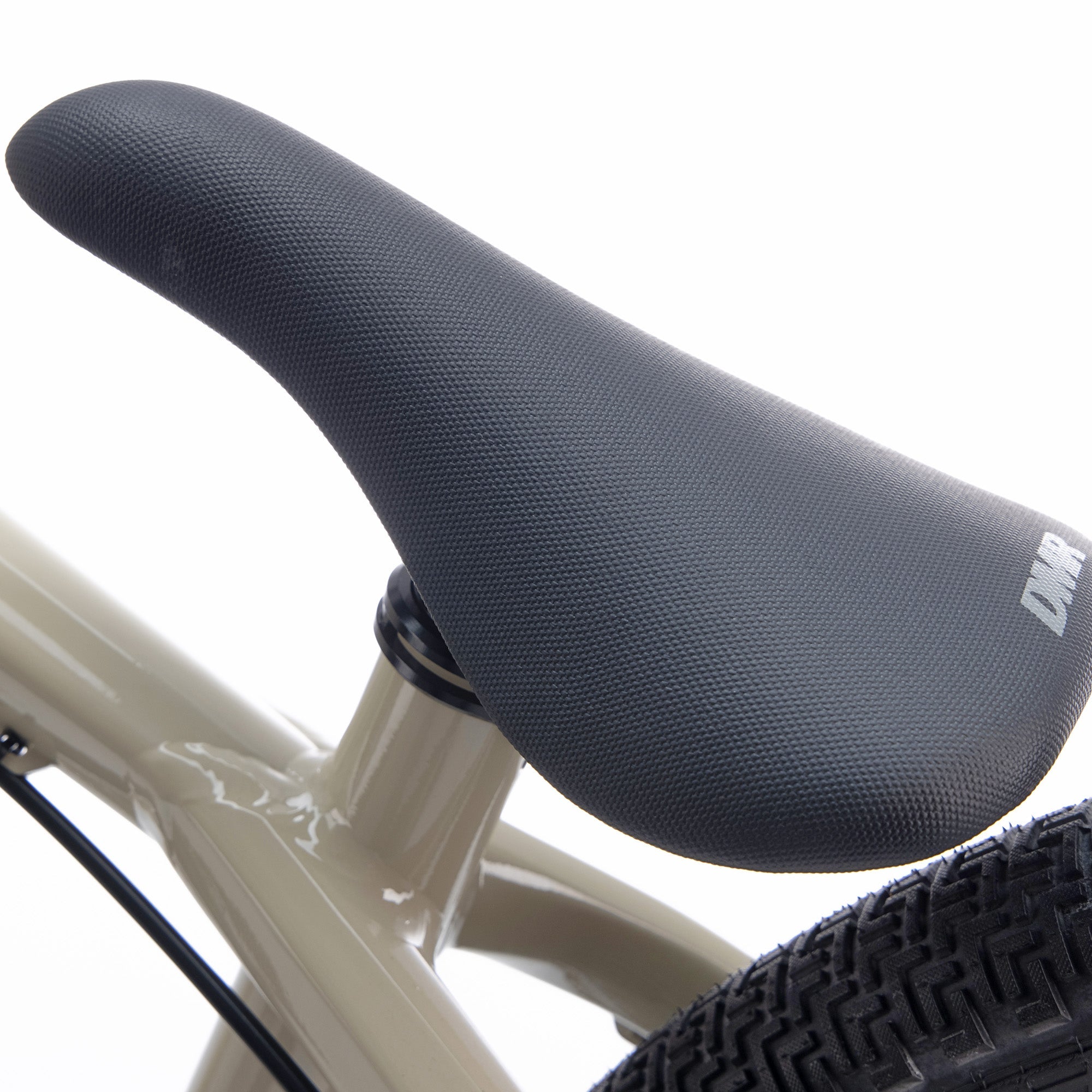

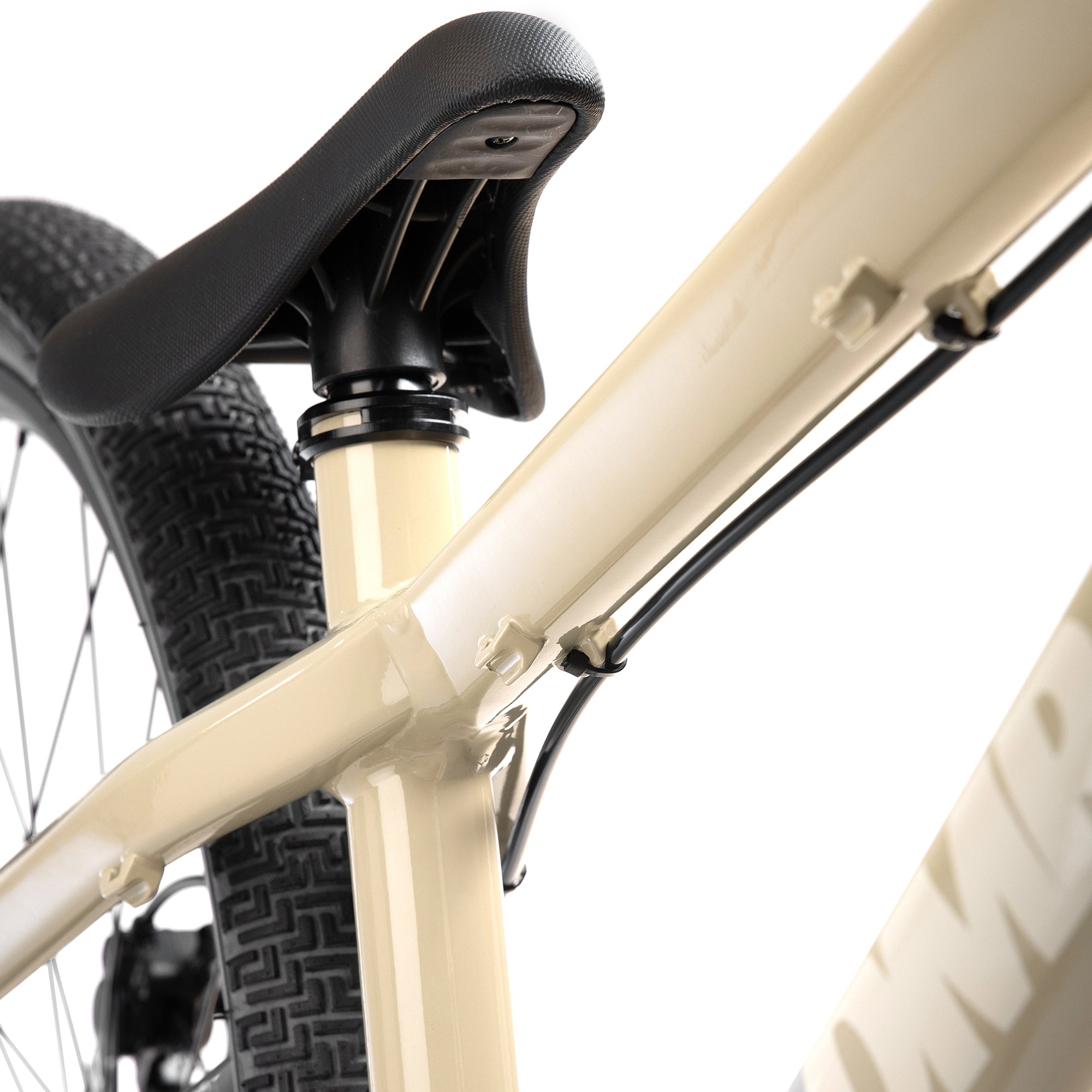

Seat/Seatpost - DMR DJ

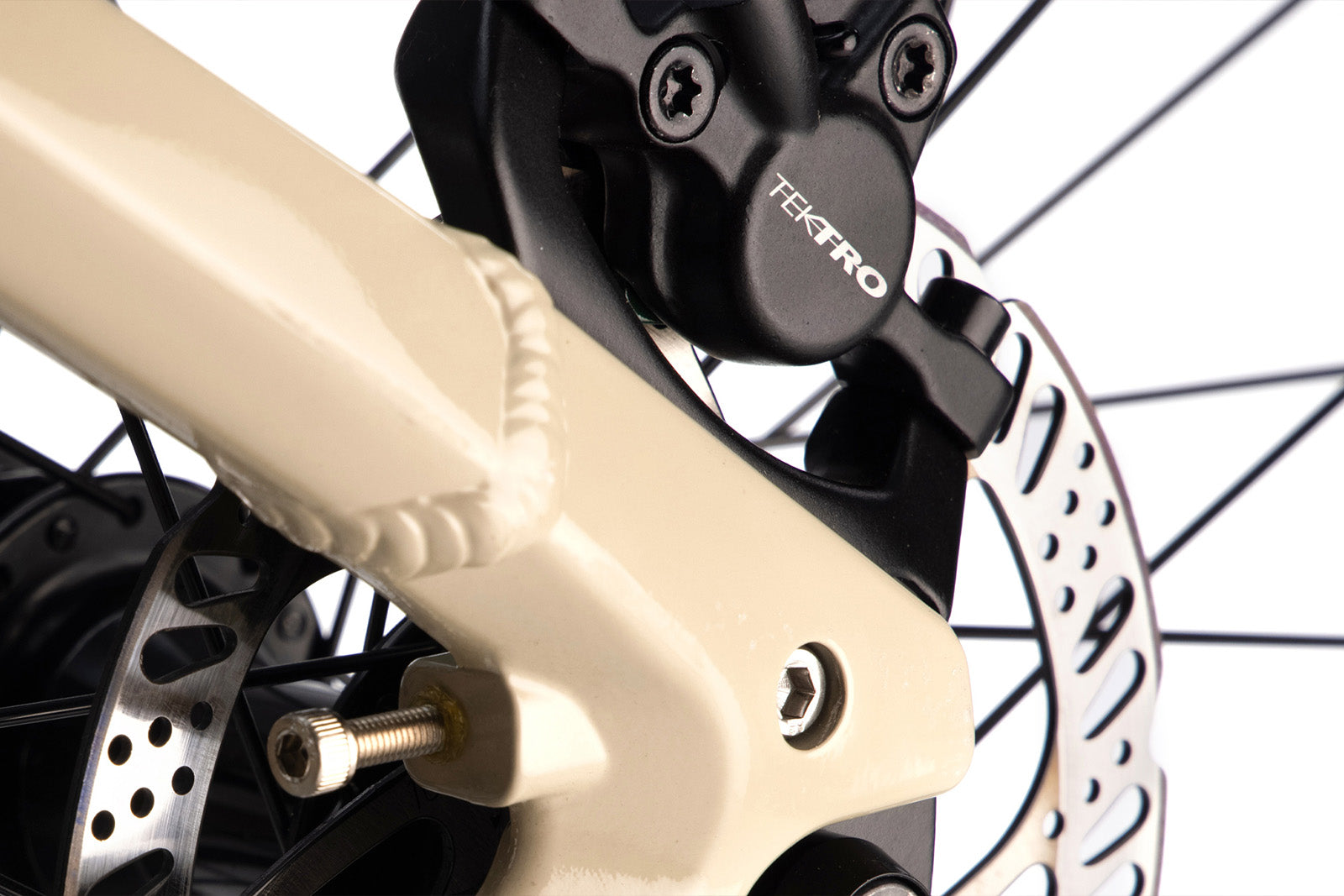

Brakes - Tektro M275 Hydraulic 180mm Front and 160mm Rear
Crankset - 170mm 30t DM Crank Arms w/ Integrated 24mm Axle
Wheels - 26" double wall Rims on KT DJ Hubs w/ 5 Pawl 13t Driver
Tyres - DMR Moto DJ 26x2.2" Folding Bead 120tpi
Chainring - 30t
Freewheel - 13t Driver
Chain - YBN MK918 Half Link Chain

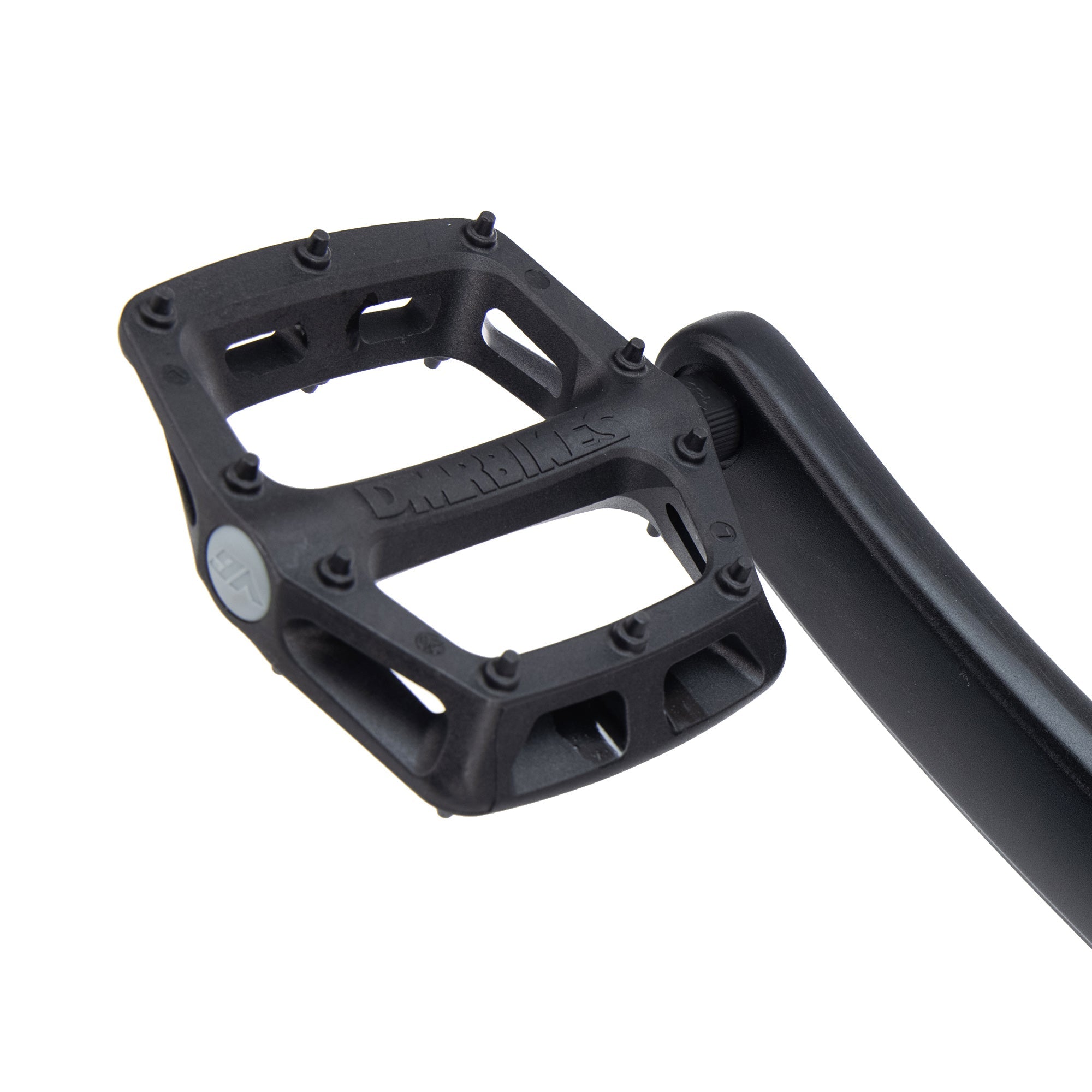

Pedals - DMR V6

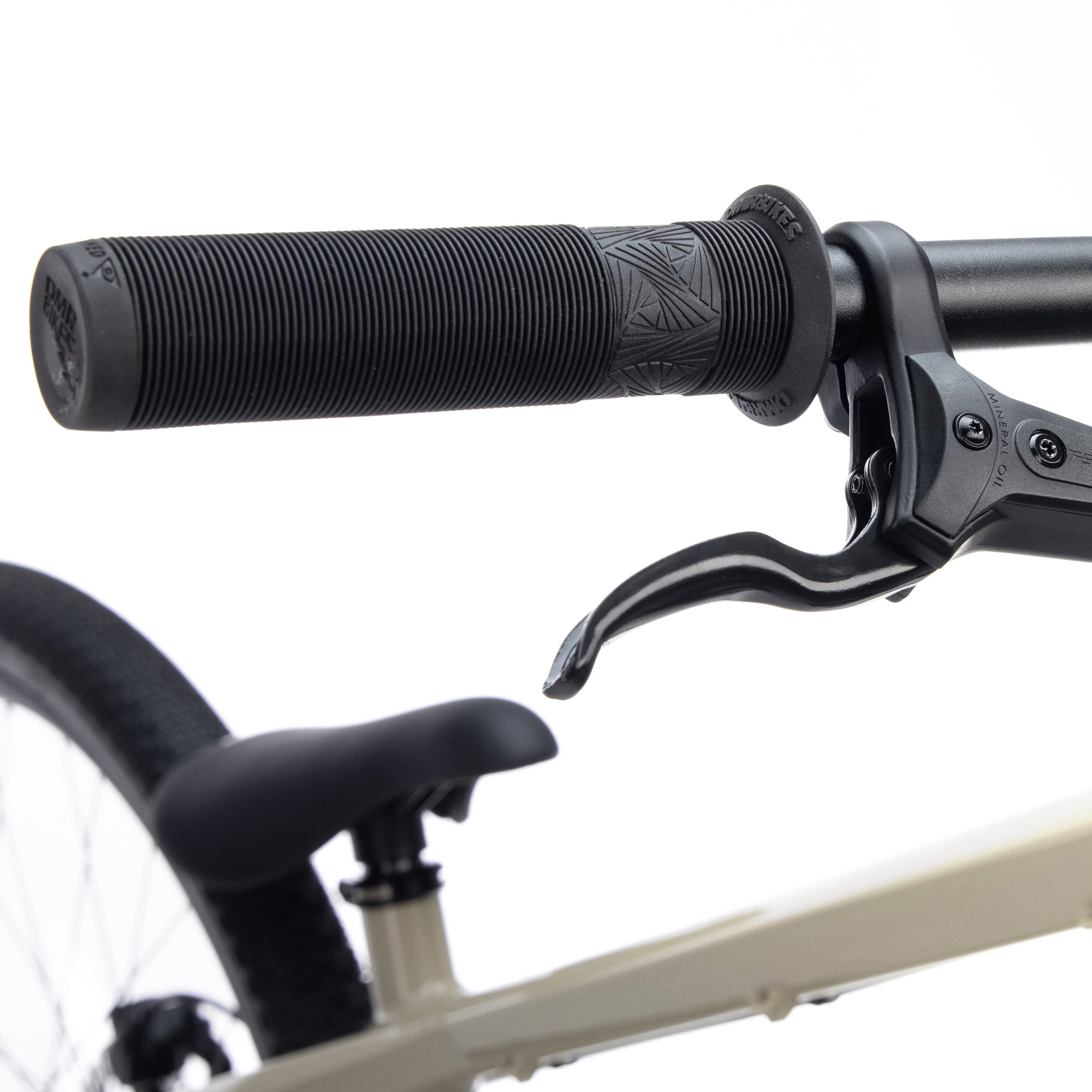

Grips - DMR Sect
Weight - 11.90kg

Geometry

Head Tube Angle 69.5°
Seat Tube Angle 71°
Front Centre 674
Top Tube Length (Actual) 579
Seat Tube Length 330
Bottom Bracket Drop 20
Stack 569
Reach 420
Head Tube Length 120
Seat Post Size Ø31.6
Seat Clamp Size Ø34.9
Wheelbase 1058
Chain Stay Length 385
Recommended Fork Length 483
Recommended Fork Offset 45
All dimensions in mm

Additional Info

If ordered via mail-order, the bike will be delivered 95% built.
• The front wheel needs fitting.
• You’ll need to align the front brake.
• Handlebars need fitting to the stem.
• The saddle/post combo needs fitting (seat clamp collet in bag, cable tied to the seat stay).
• The Rhythm bike has been PDI checked prior to packing, however we recommend you completing a full PDI before your first ride.

Also the bike comes with some spares and manuals:
• Seat clamp collet in bag, cable tied to seat stay.
• Front wheel axle nuts and washers in small parts box.
• Bar/post reflectors and bell, and shims.
• DMR V6 w/ reflector pedals, black.
• DMR Owners manual.
• Tektro user manual.

View details

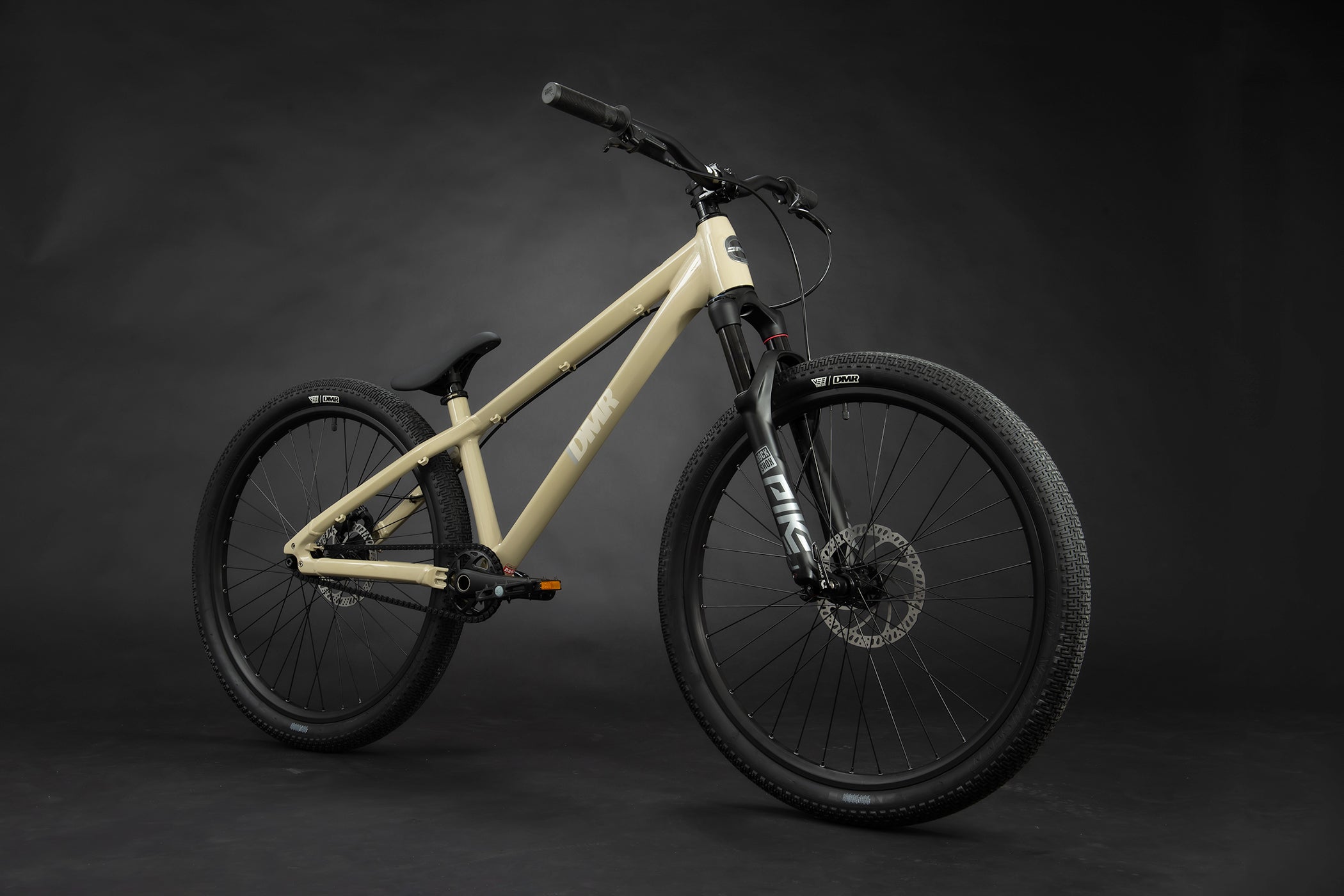

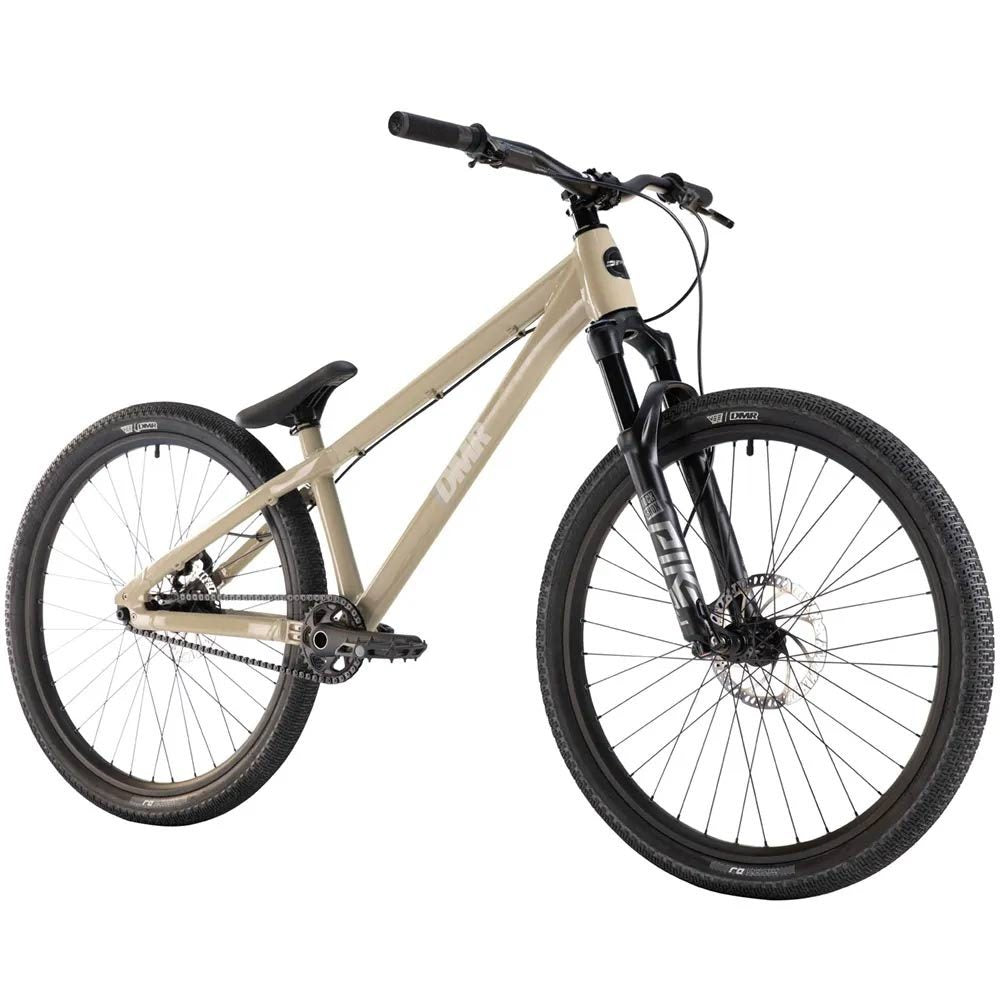

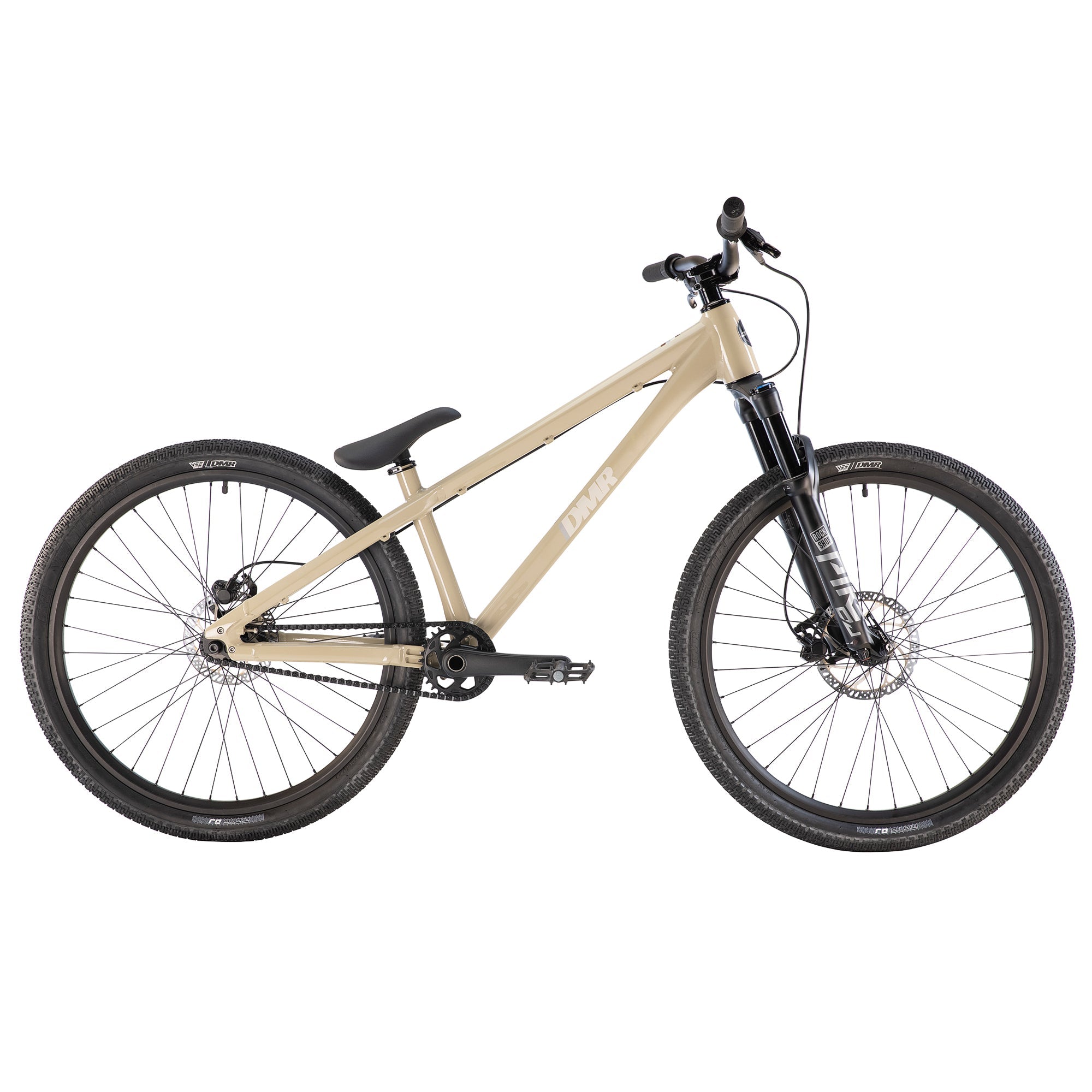

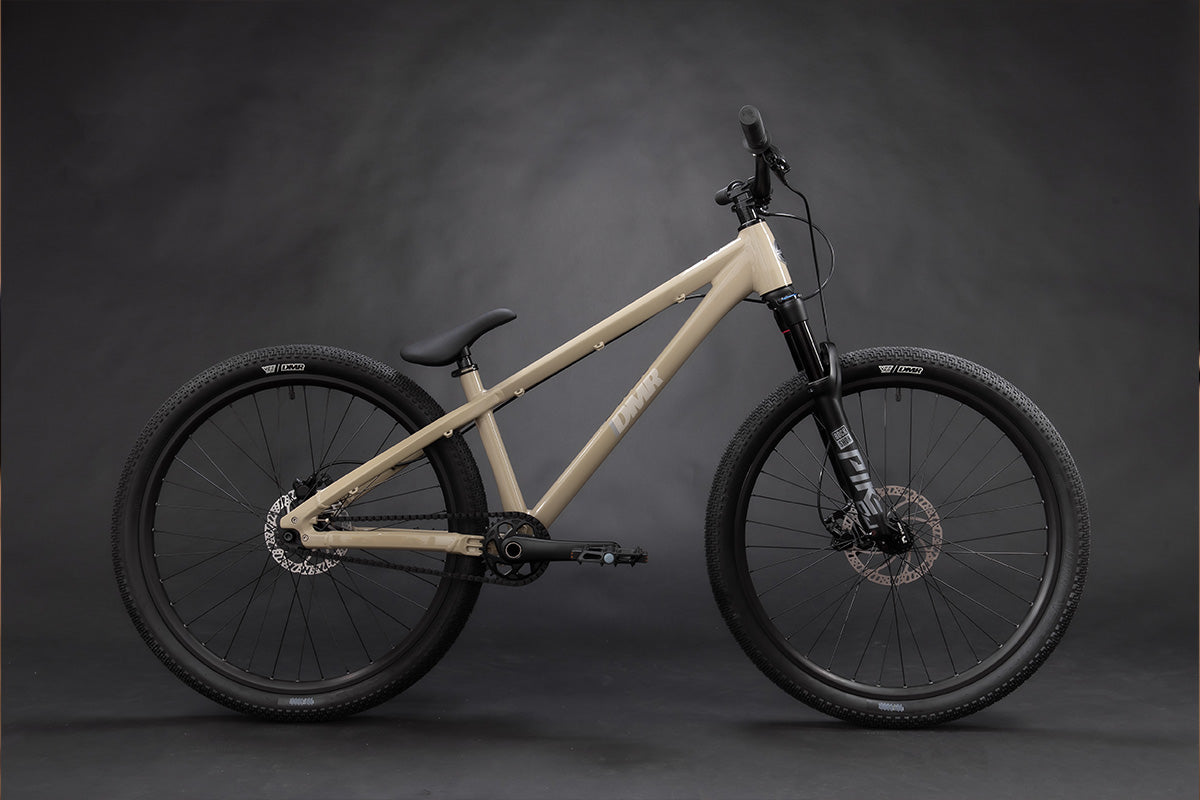

The Rhythm Team complete jump bike is our top-of-the-line pro-level dirt jump bike. Right out the box, it genuinely doesn't get any better than this. Let’s talk about the Rhythm frameset. At DMR we are well known for our steel hardtails, like the Sect dirt jump frame. But we never rest on our laurels, so we've created this, the best aluminium dirt jump bike available.

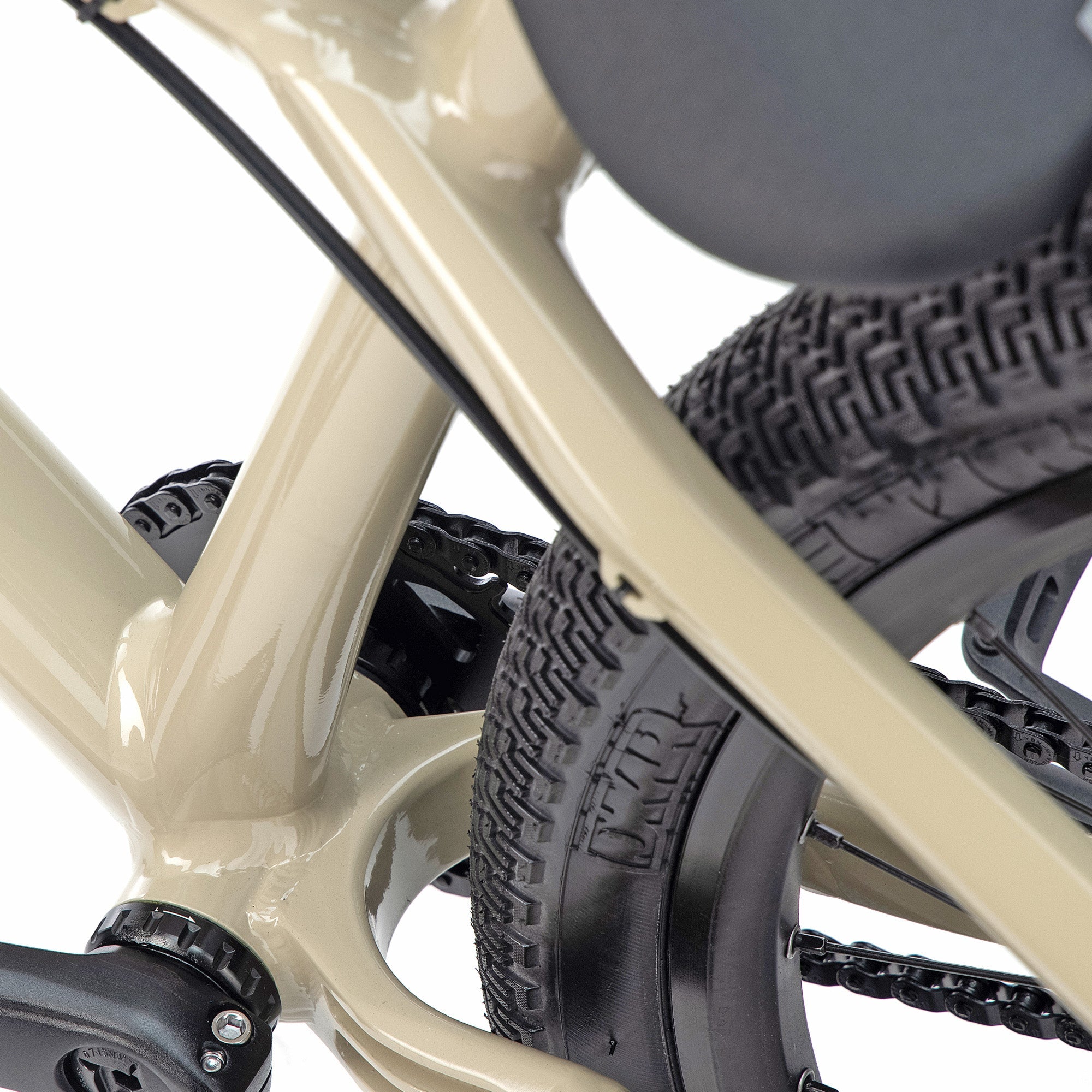

The Rhythm frameset that is the heart of this dirt bike uses tubes made from 6061 T6 aluminium alloy. The lightness and stiffness of this tubing make it ideal for a frame that holds its own equally at the trails and the 4X track.

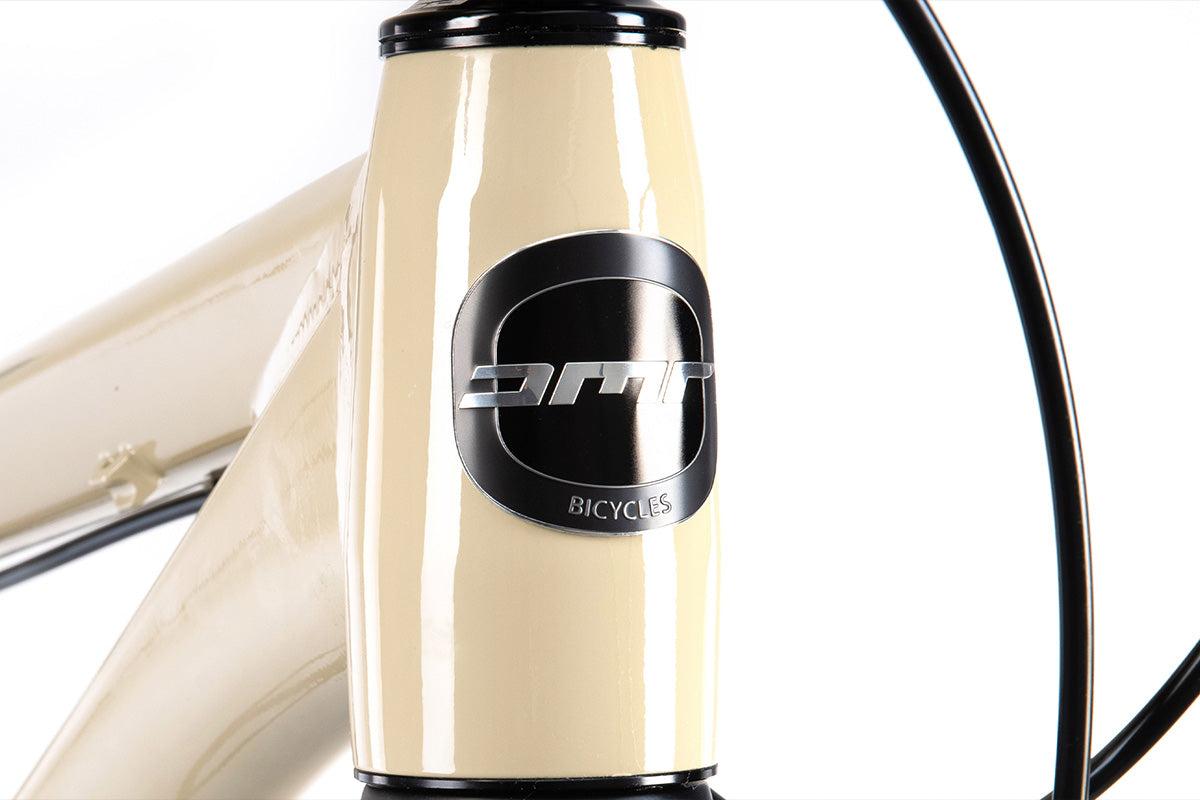

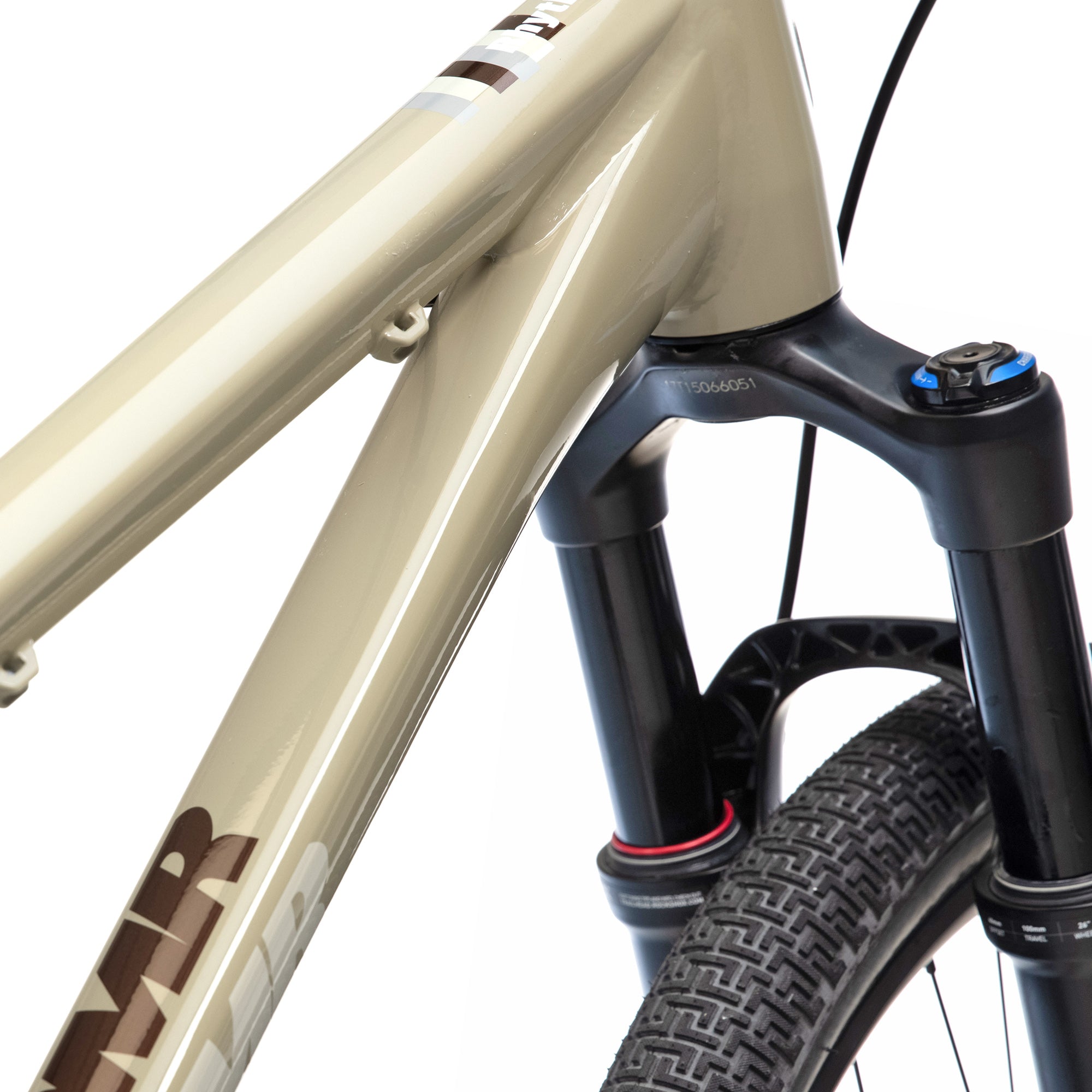

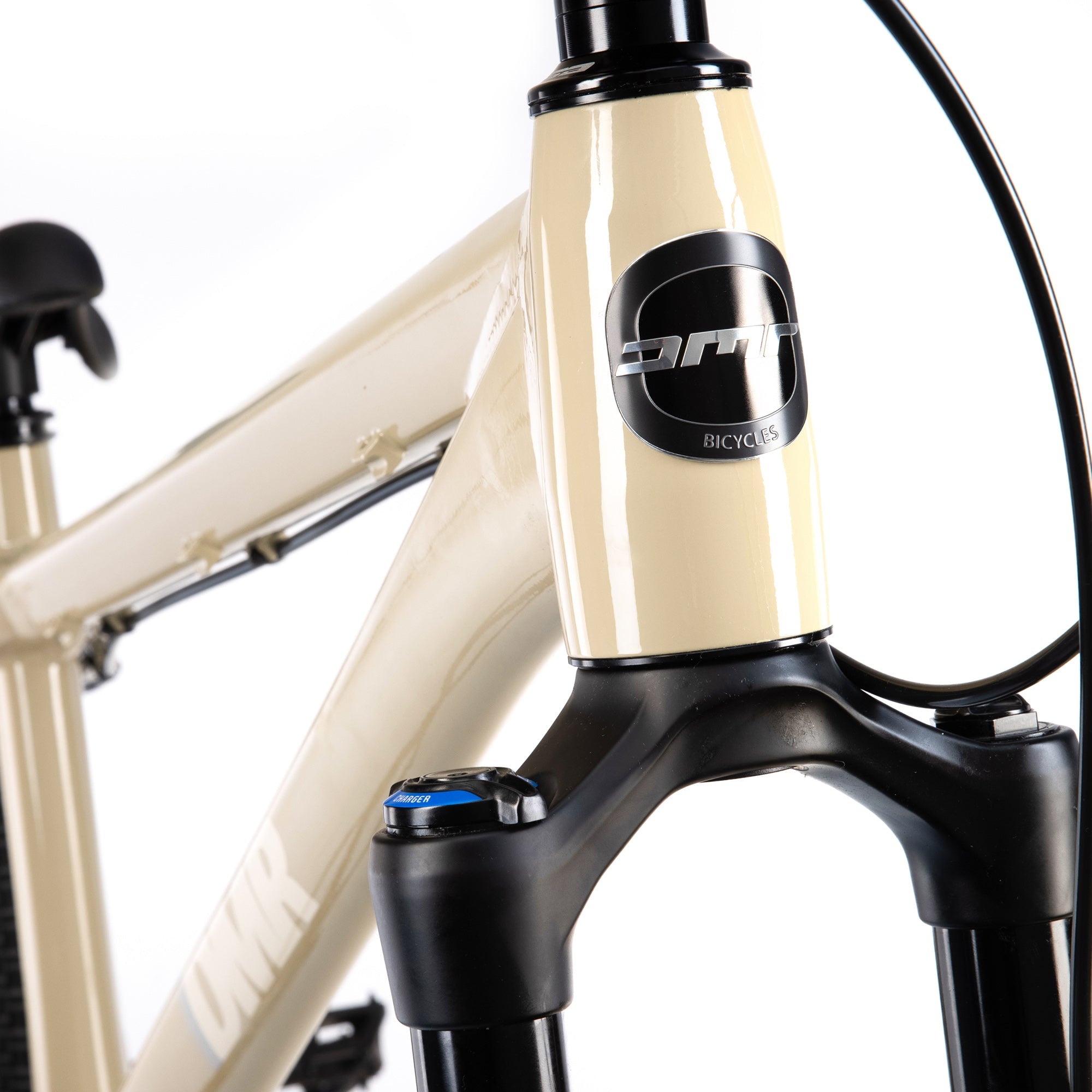

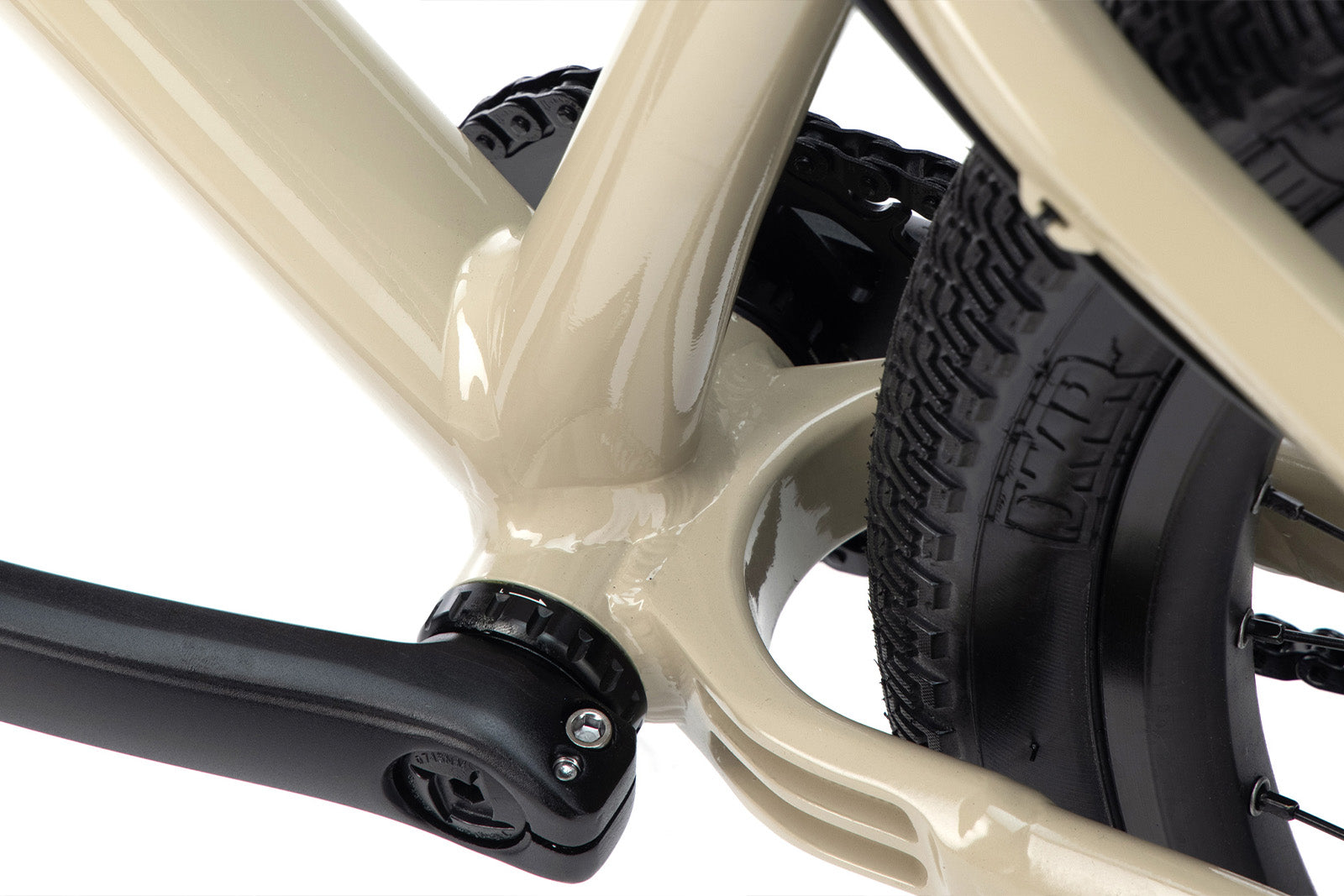

Details include a tapered headtube, machined chainstay yoke and interchangeable dropouts – these integrated sliding dropouts make adjusting chain tension a breeze. Dropouts are also interchangeable with our Rhythm gear-compatible dropouts if you want to change your setup later down the line.

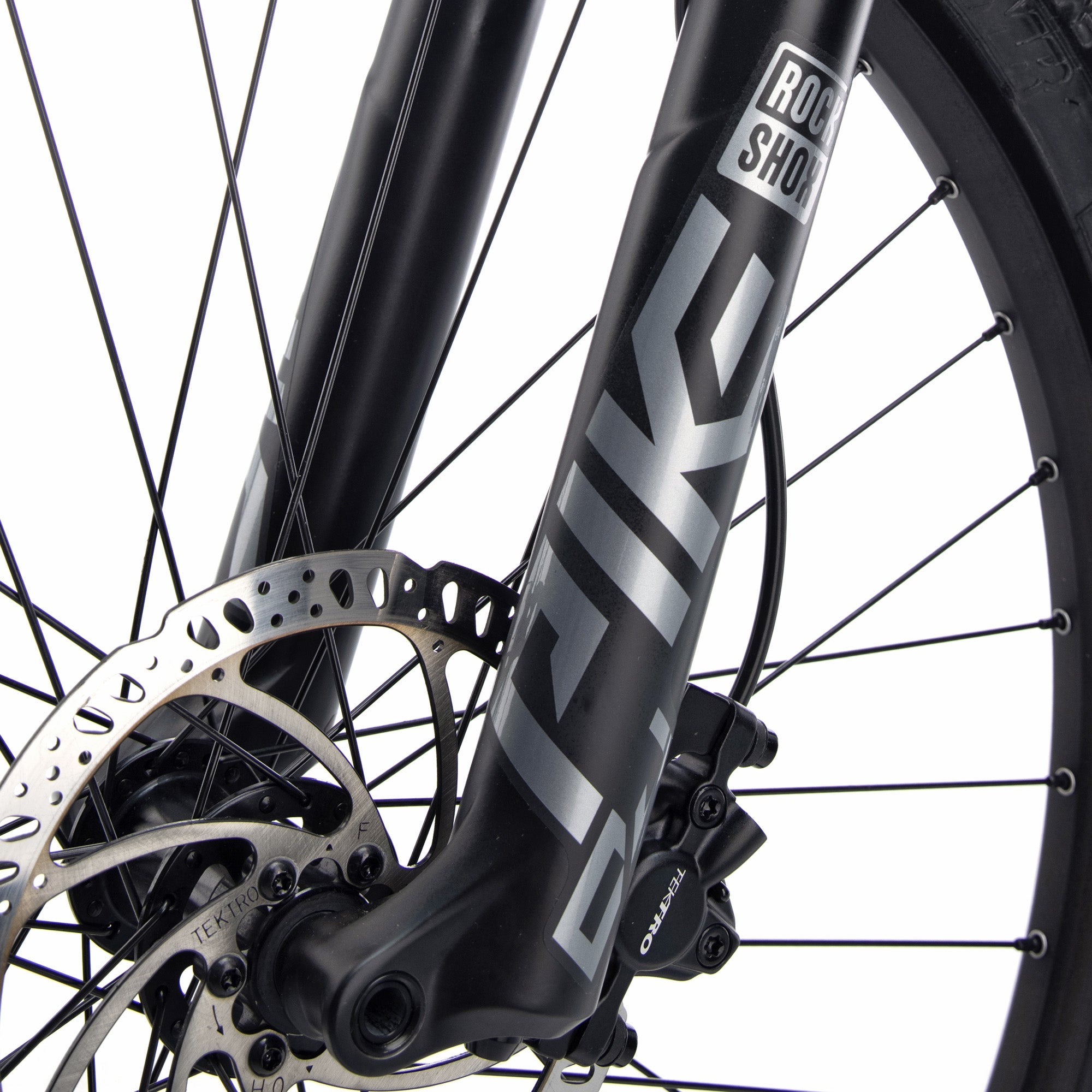

On this Team model, suspension duties are handled by the superb Rock Shox Pike DJ fork, with Solo Air spring and Charger damper with a dirt jump specific tune. This premium and highly adjustable fork delivers unbeatable performance for the most demanding of riders, and it looks incredible too. It's the best dirt jump fork on the market, and we've built into our best dirt jump bike.

The rest of the components are carefully selected with performance and strength in mind. Highlights include a DMR cockpit featuring butted aluminum handlebars, Sect DJ grips and a short stem. We've also specced our own, proven DMR Moto DJ Tyres and Tektro Hydraulic brakes on the front and rear.

Ready to hit the trails with the best setup available? Then look no further.
