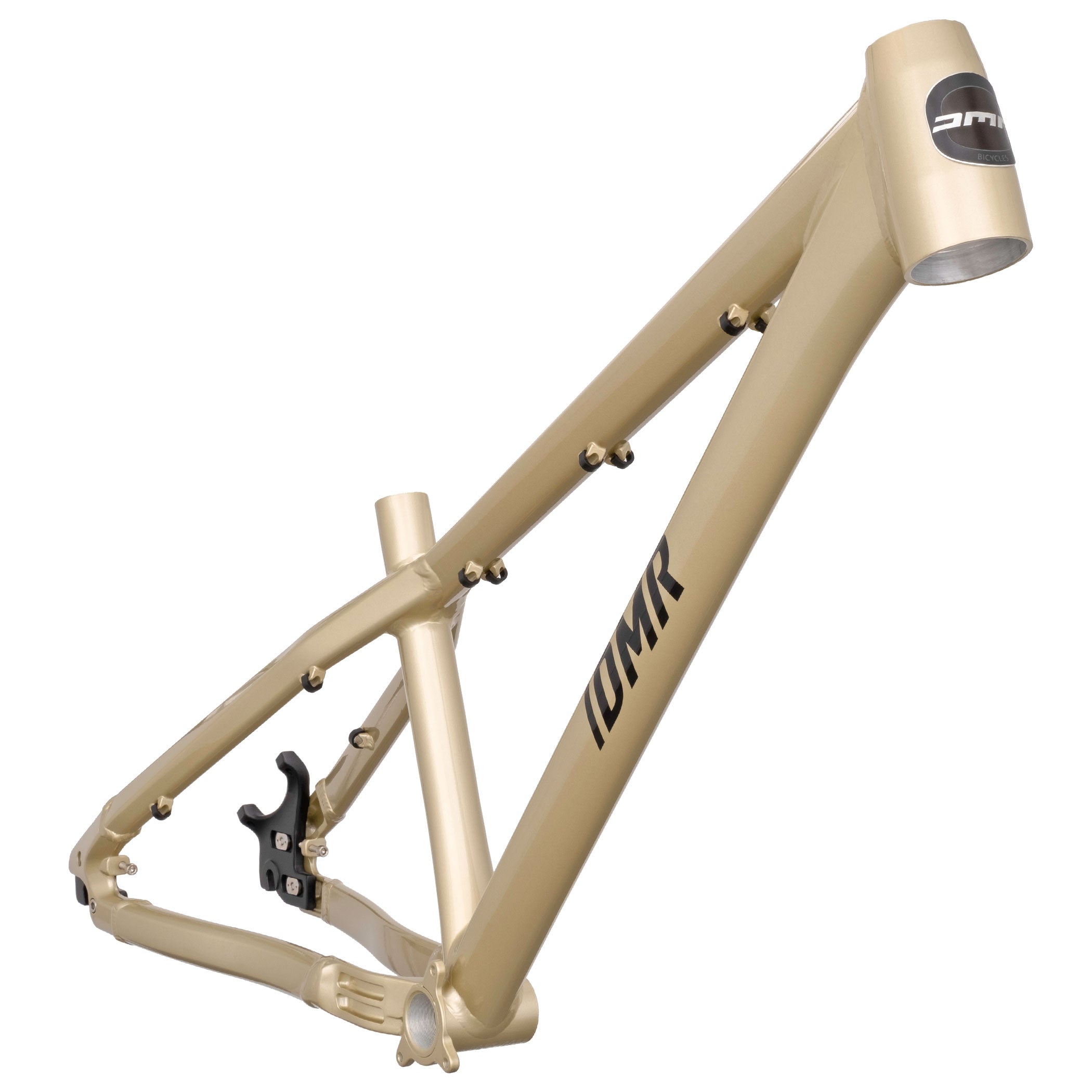

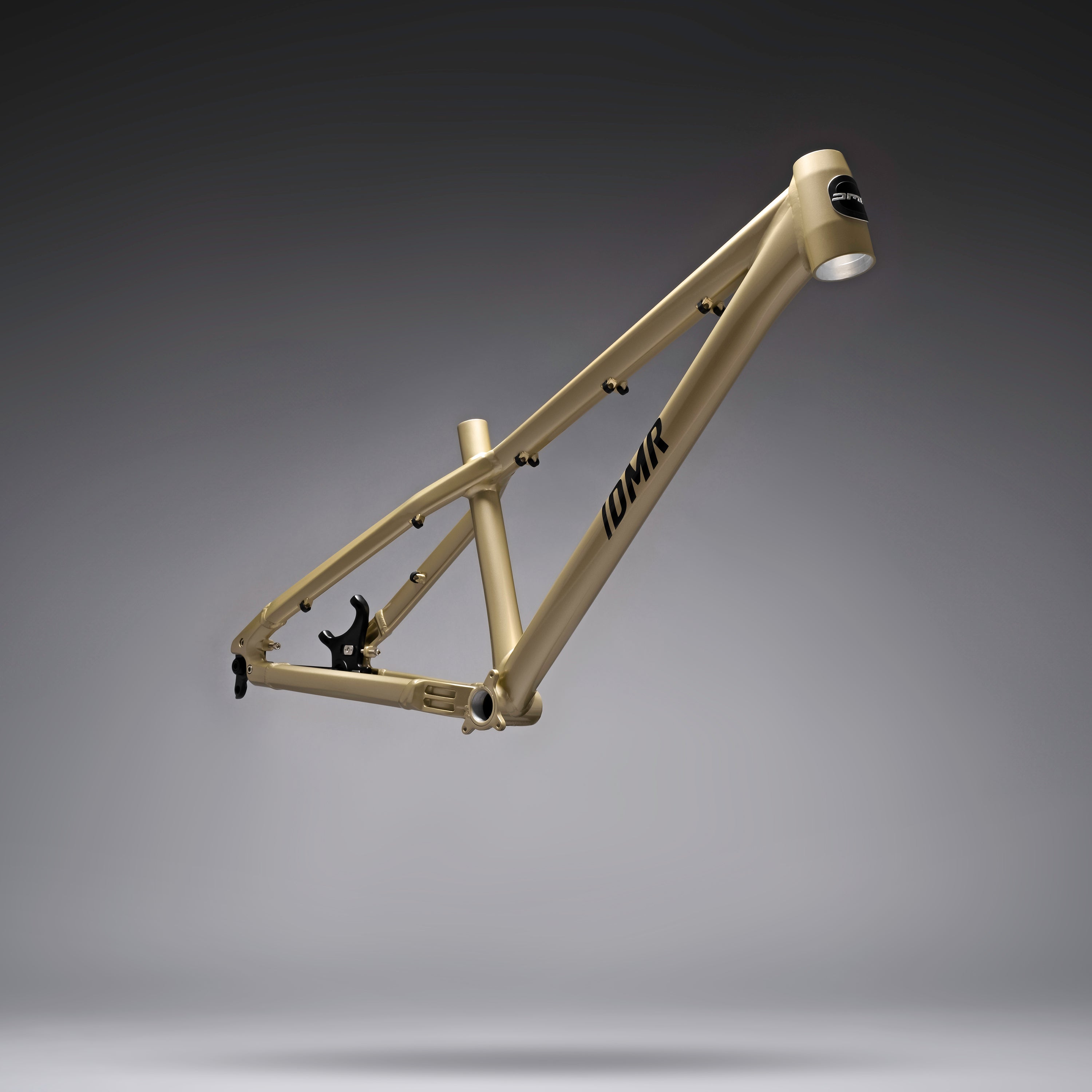

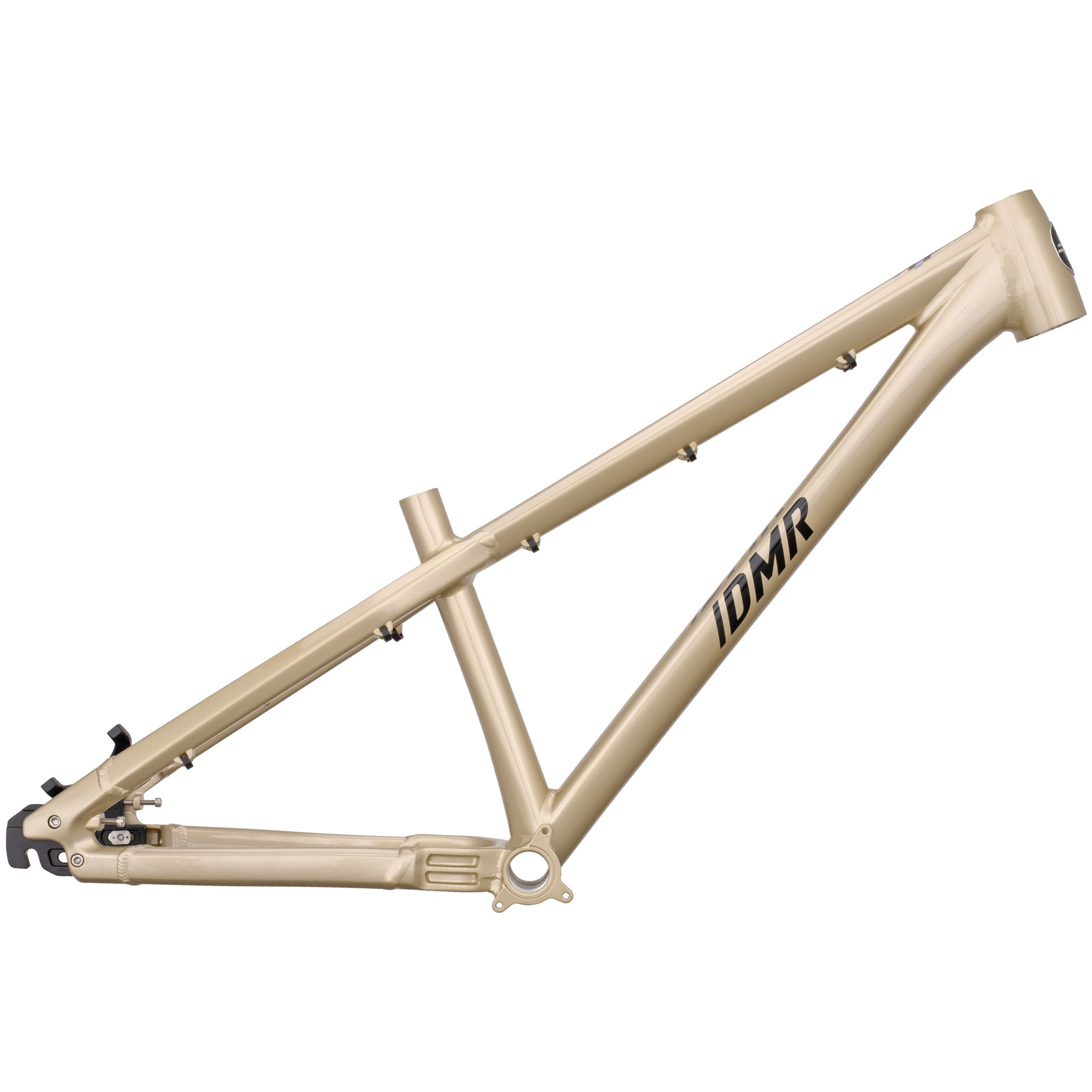

DMR Rhythm - 26 inch wheel Dirt Jump Frame, Gold

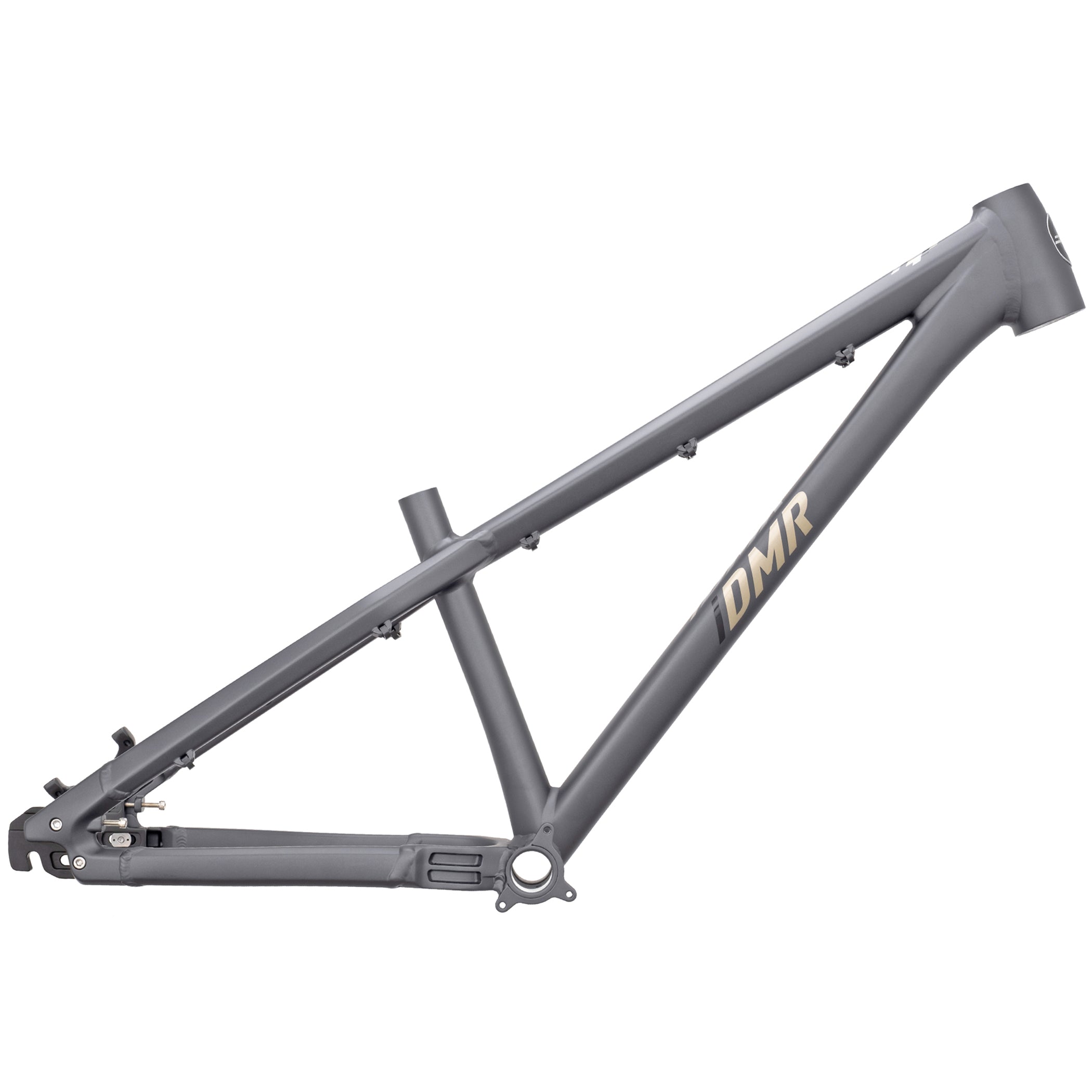

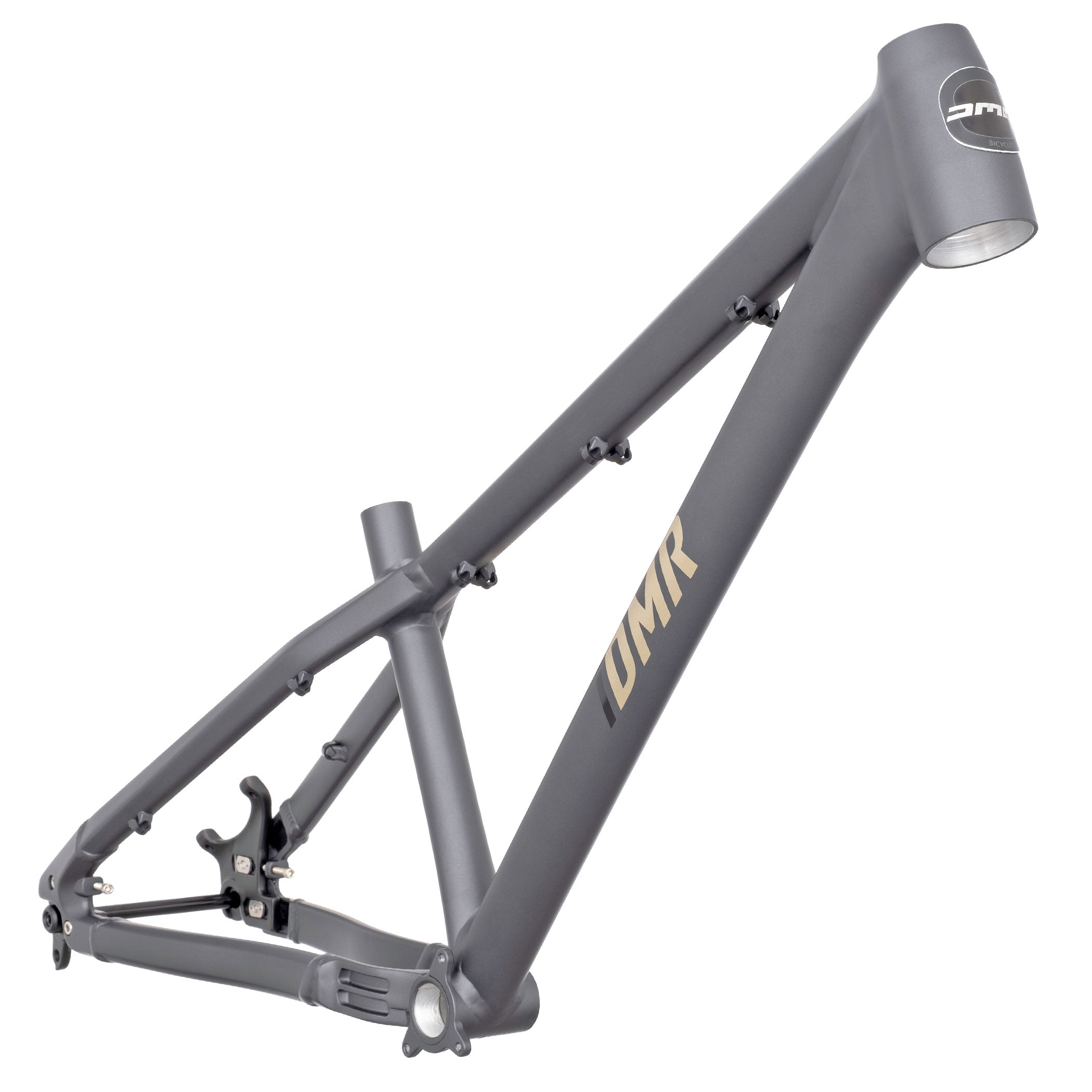

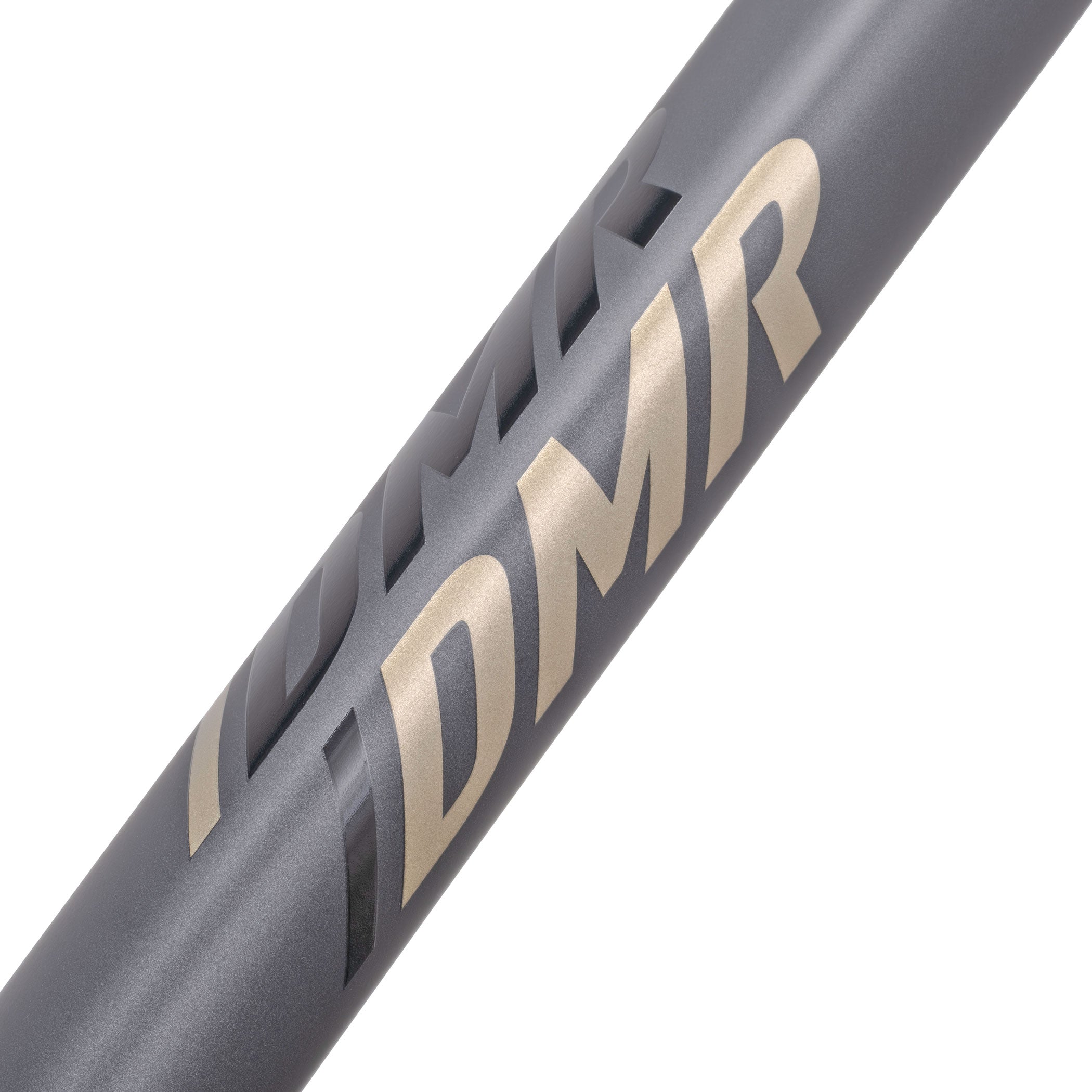

DMR Rhythm - 26 inch wheel Dirt Jump Frame, Metallic Grey

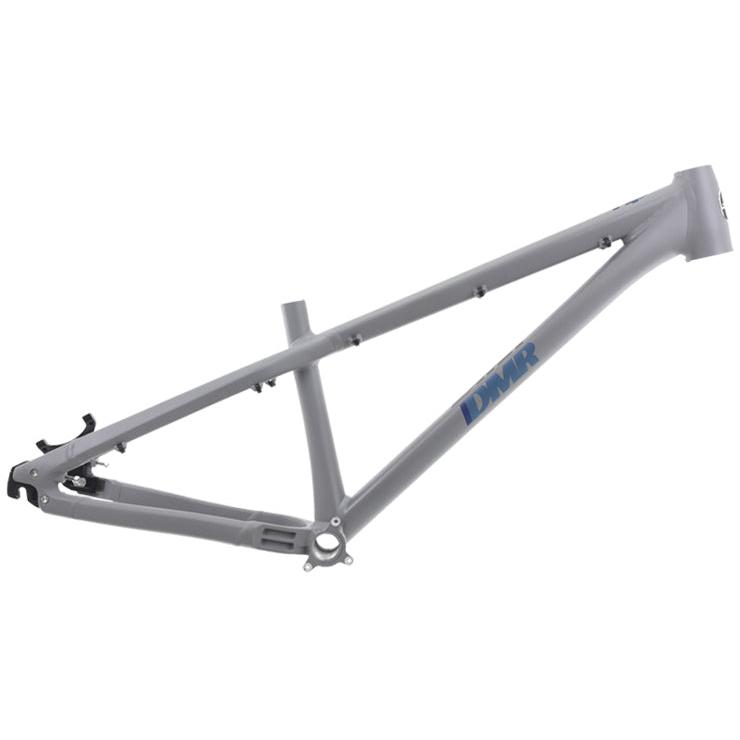

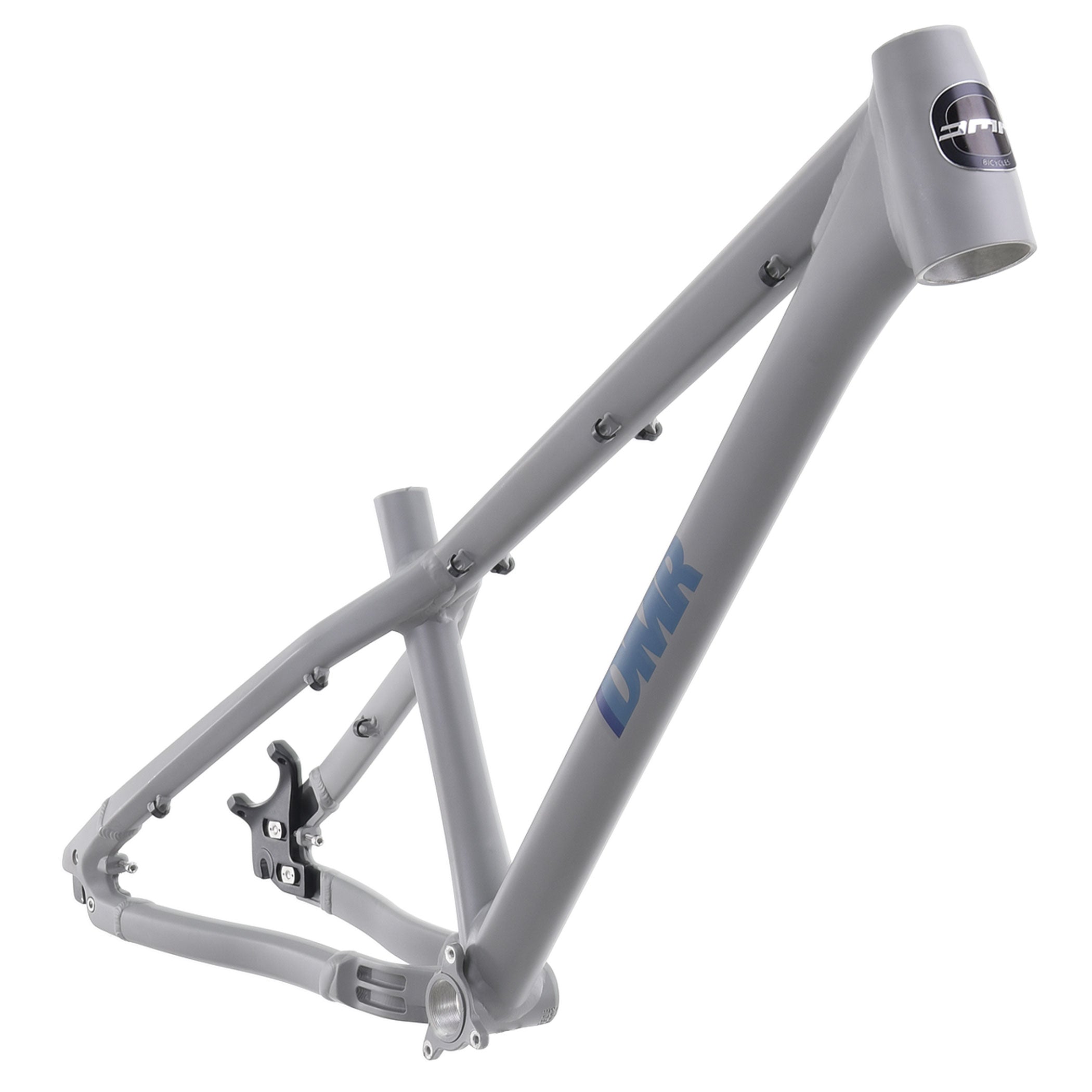

DMR Rhythm - 26 inch wheel Dirt Jump Frame, Nardo Grey

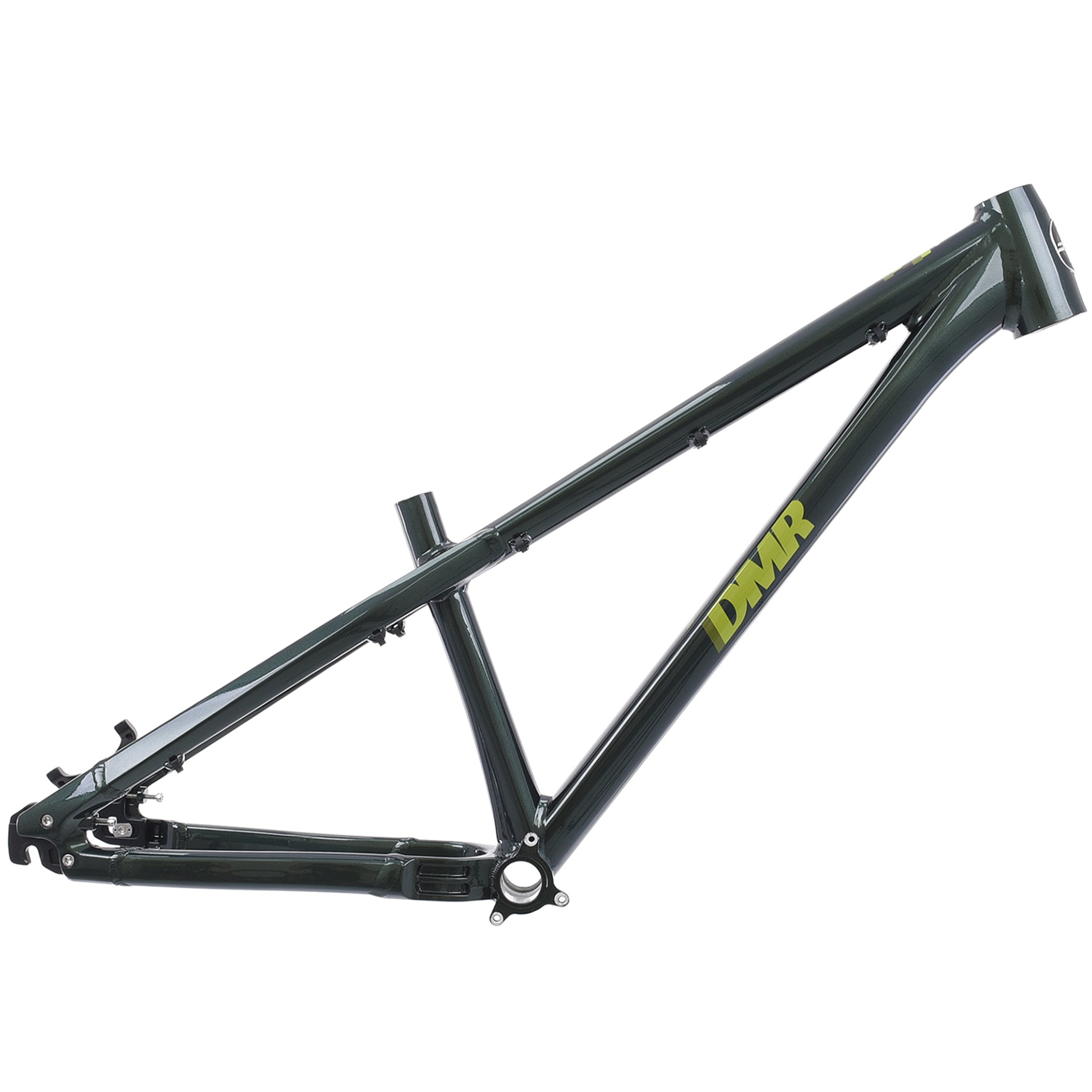

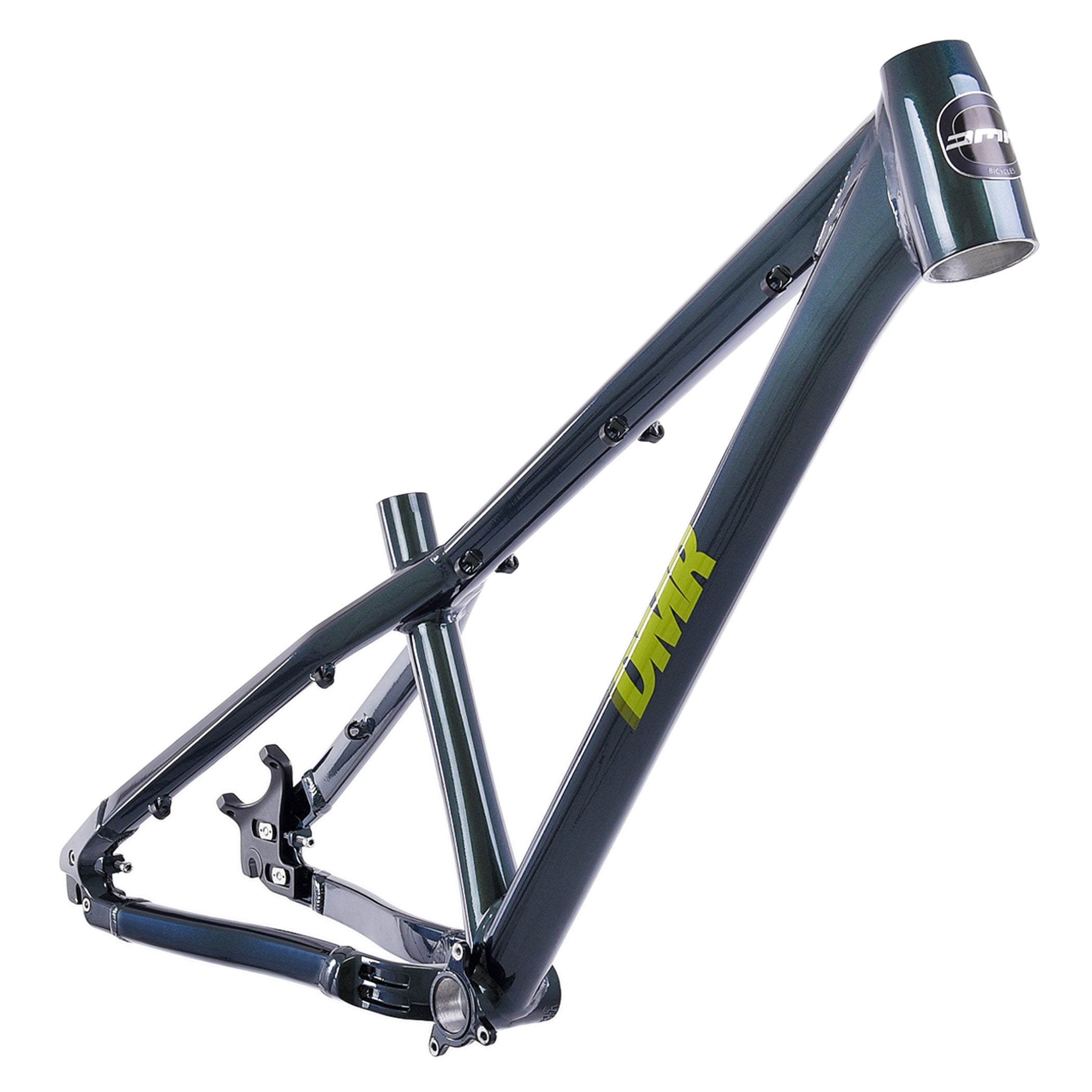

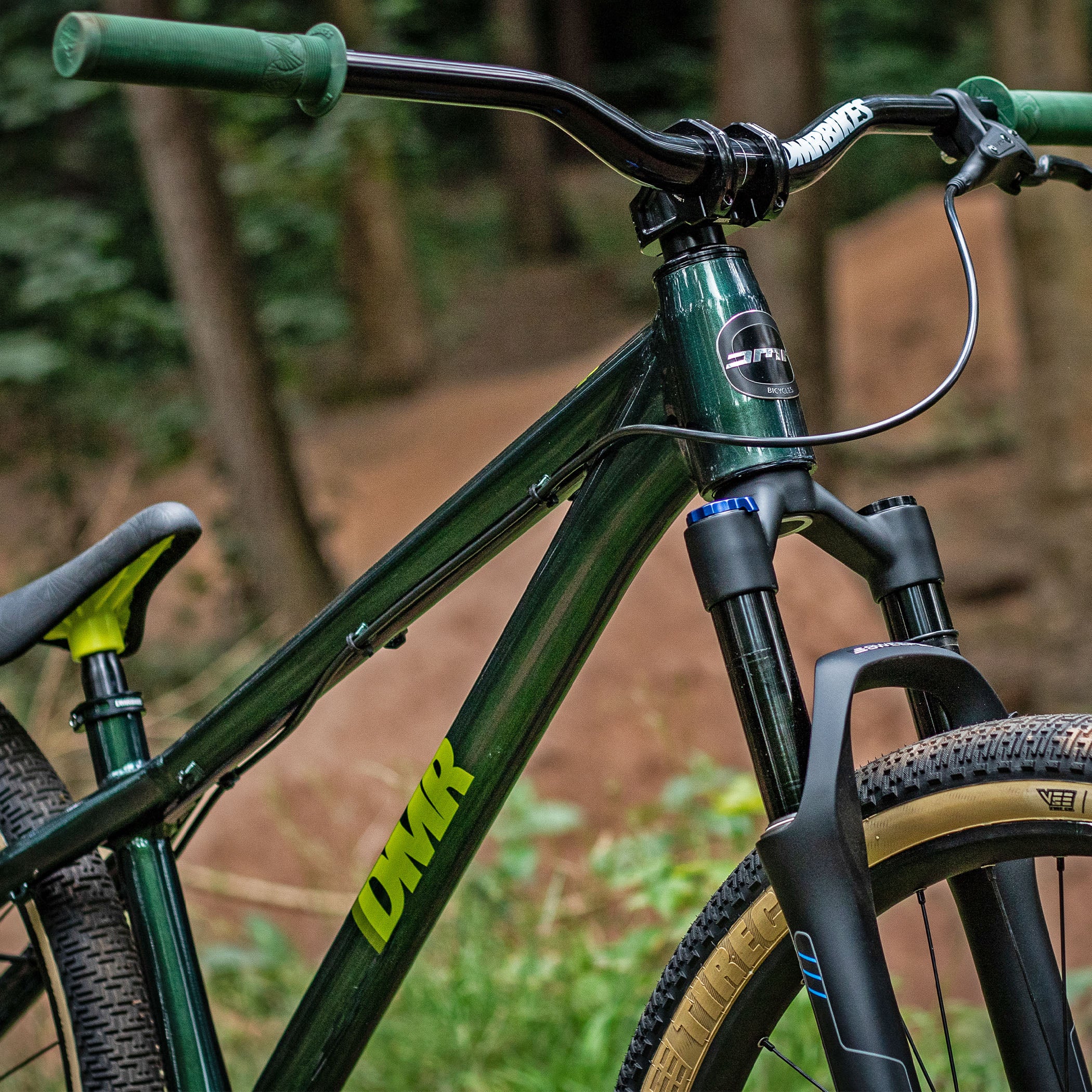

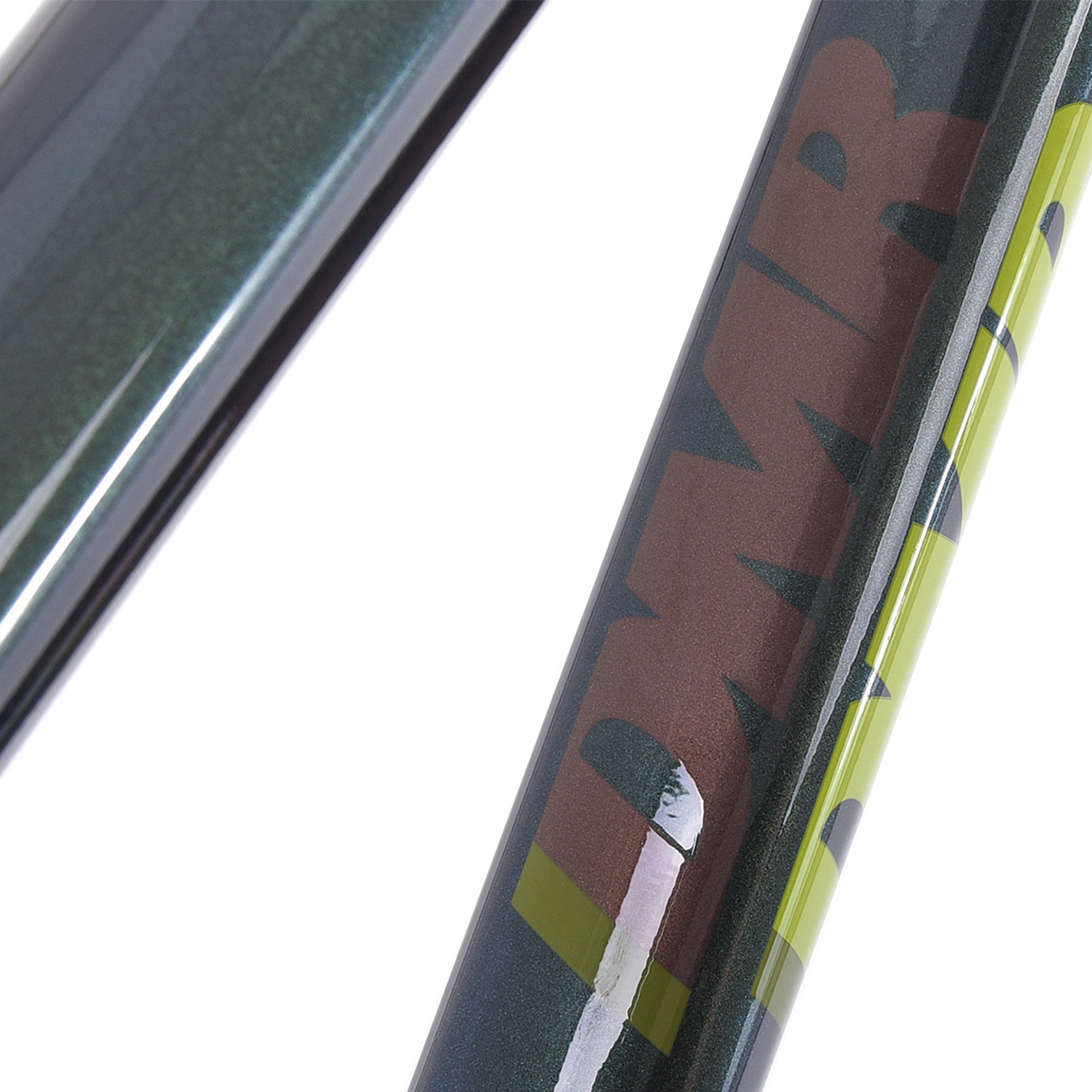

DMR Rhythm - 26 inch wheel Dirt Jump Frame, Forest Green

DMR Rhythm Frame

£425.00

Colour: Sola Gold

Size

Regular Long

Product variants

Description

So here it is. The new DMR Rhythm is a 26” wheel aluminium jump/pumptrack/4X/trails frame, built for big lines, endless laps and all the trails you can throw at it.

Right out the box, it genuinely doesn't get any better than this. At DMR we are well known for our steel hardtails, like the Sect dirt jump frame or our iconic Trailstar. But we never rest on our laurels, so we've created this, the best aluminium dirt jump frame available.

Let’s talk about materials. The Rhythm uses tubes made from aircraft-grade, butted 6061 T6 aluminium alloy. The lightness and stiffness of this tubing make it ideal for a frame that holds its own equally at the trails and the 4X track.

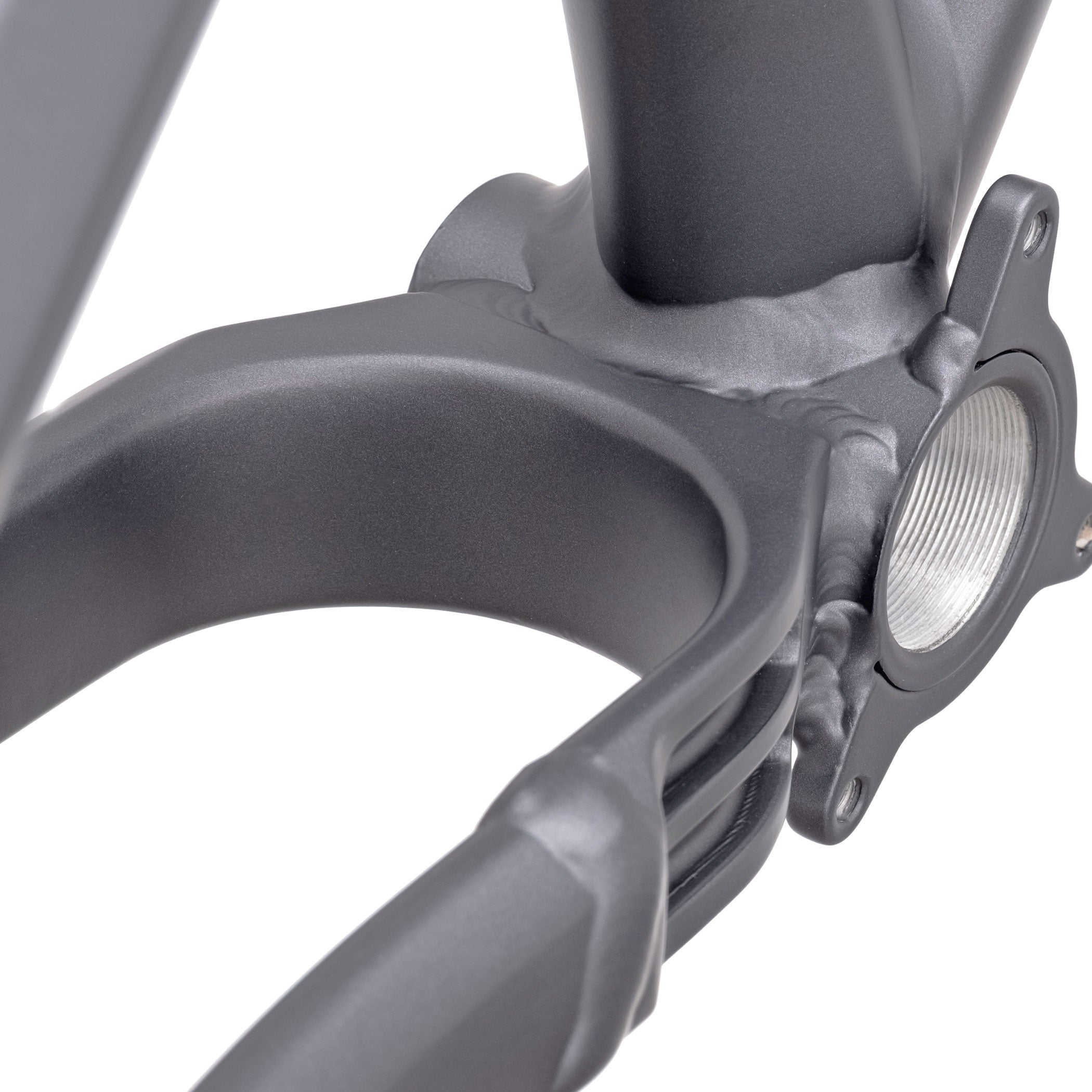

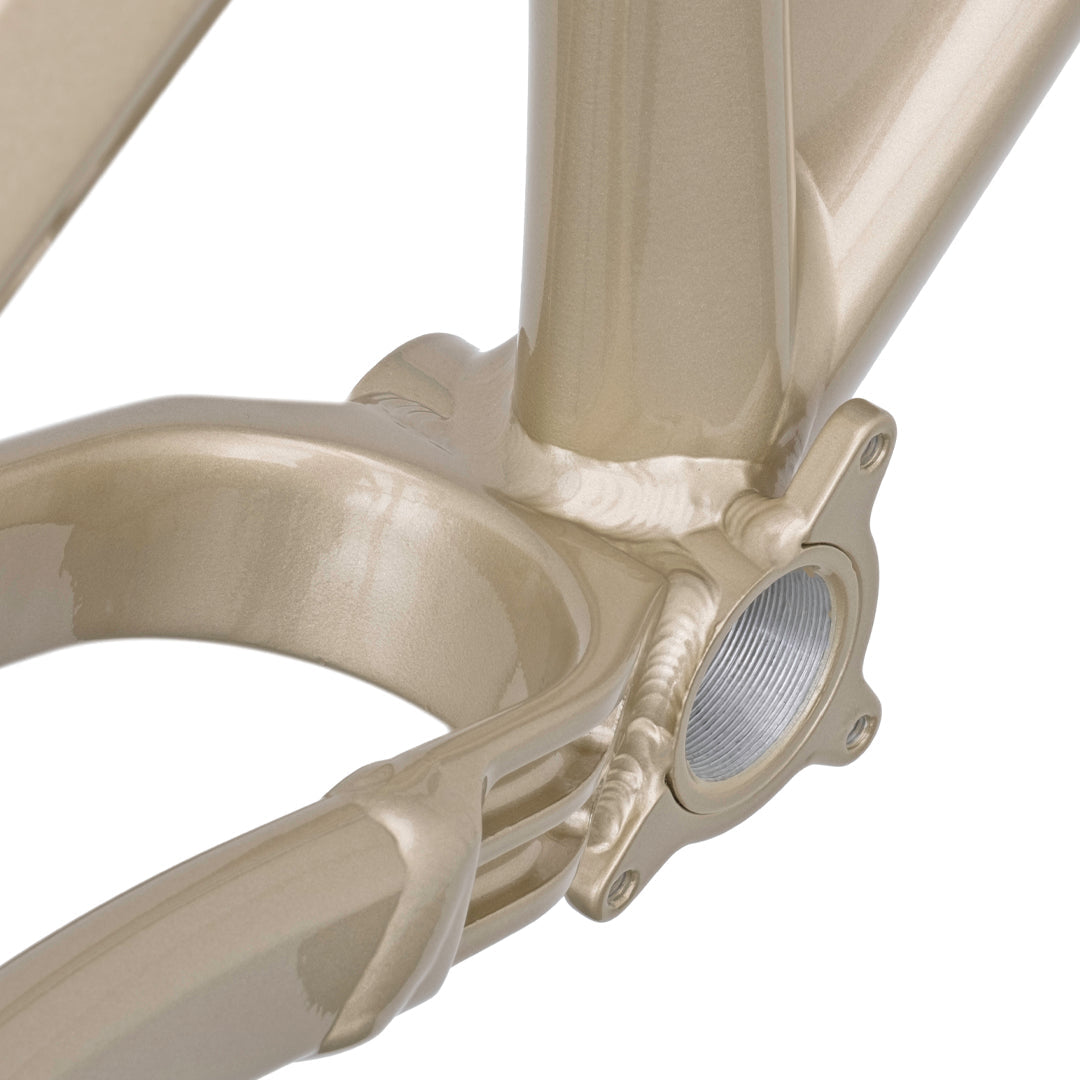

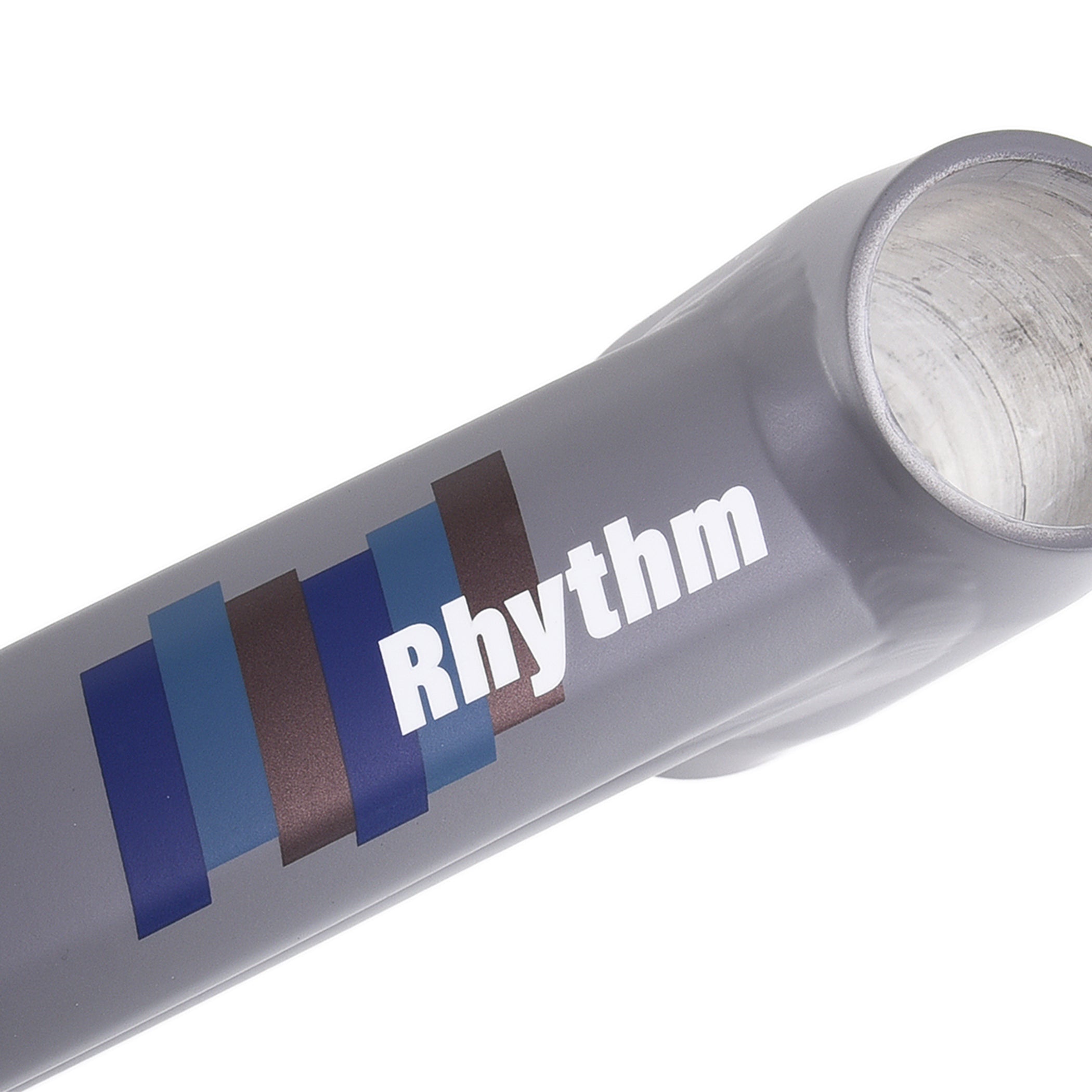

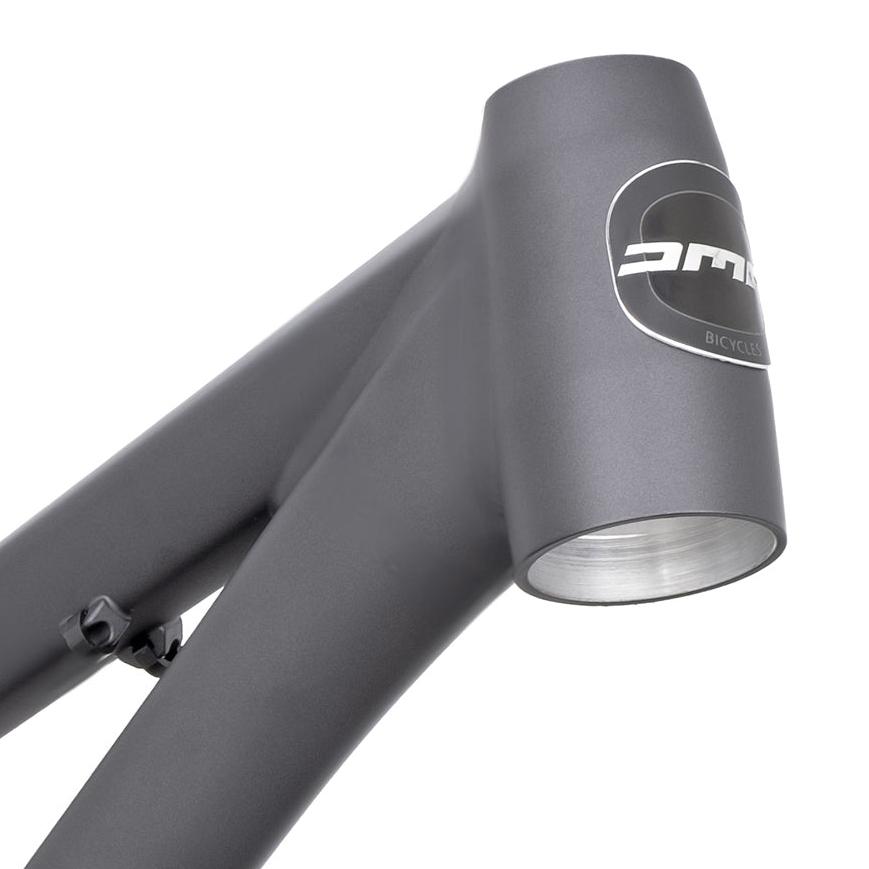

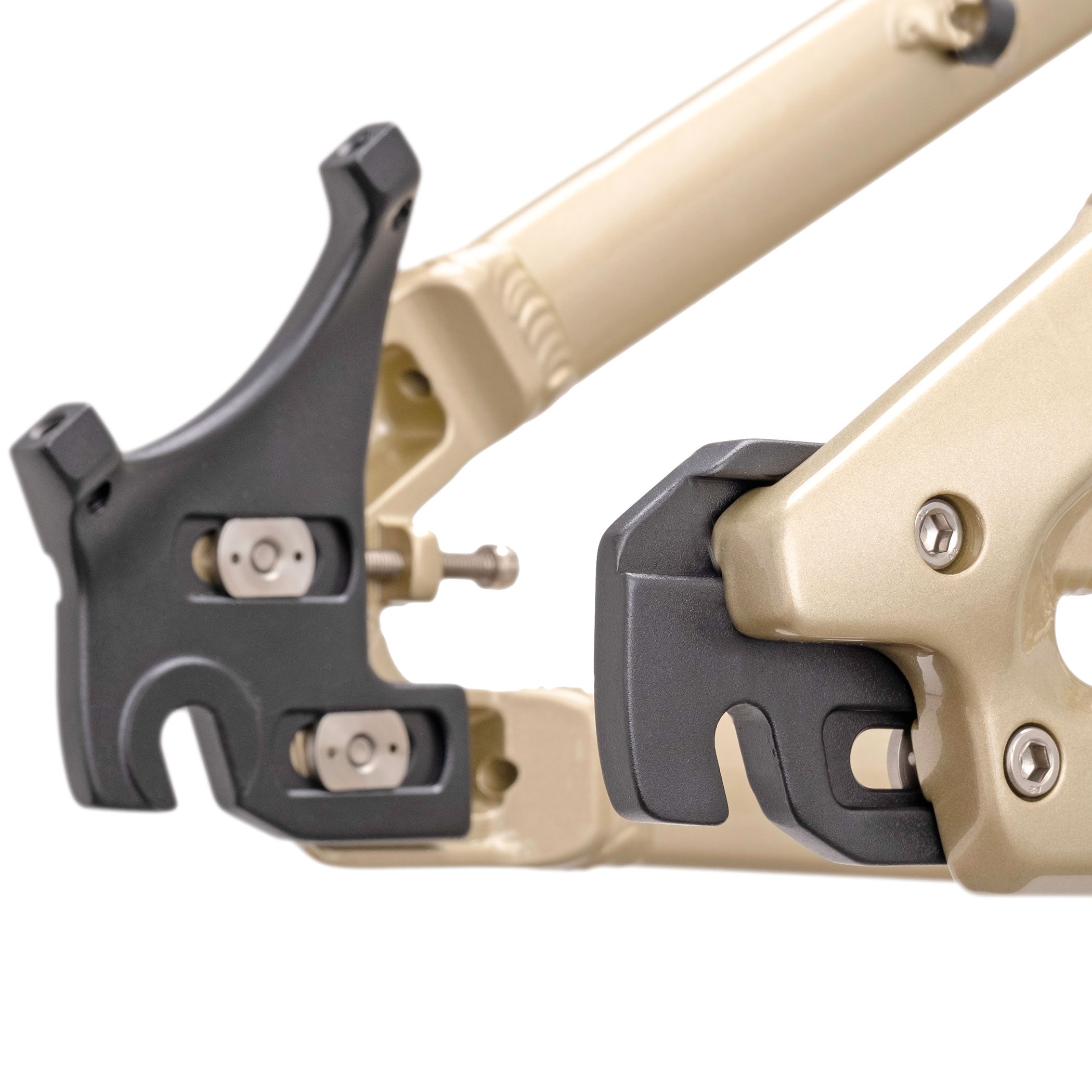

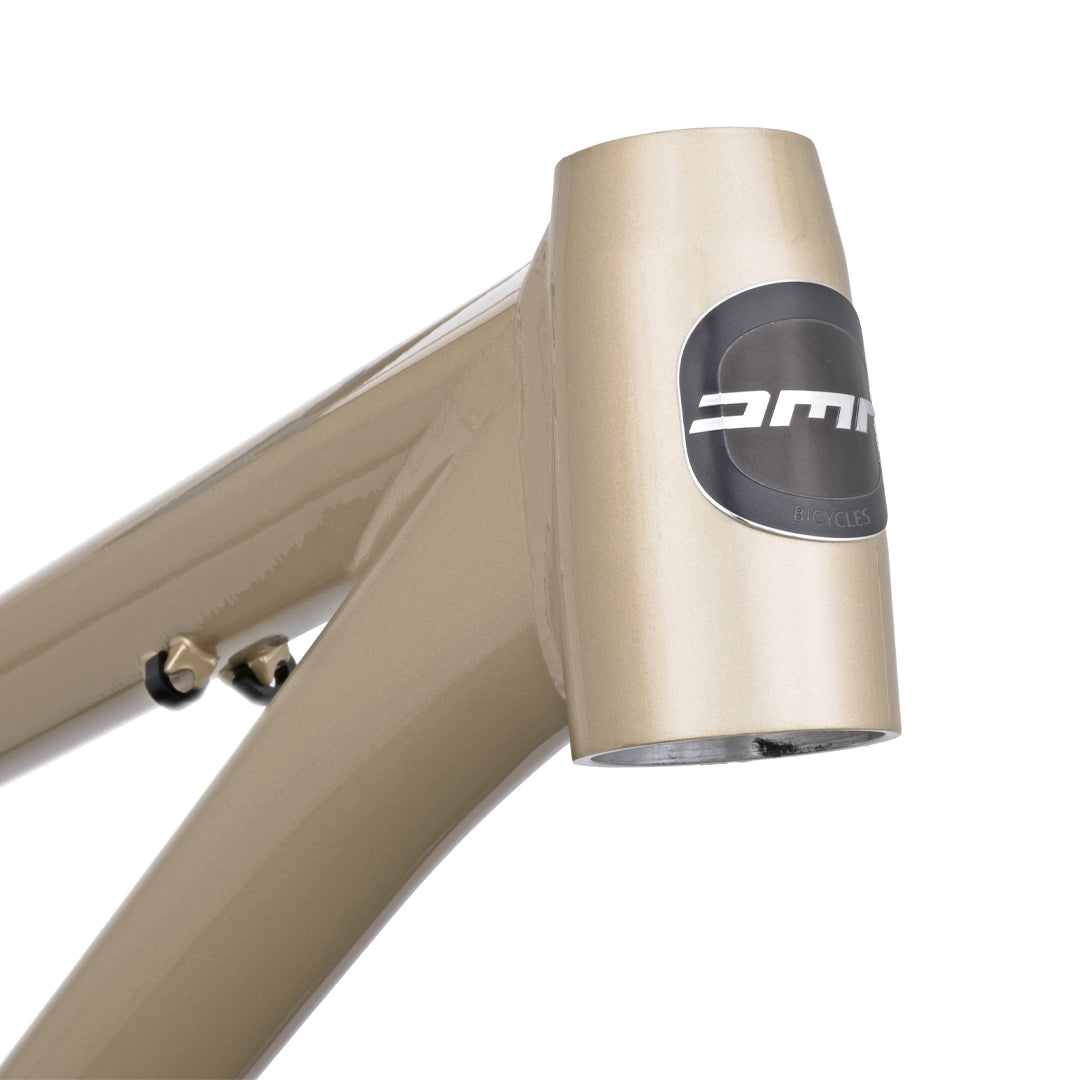

Details include a tapered headtube, machined chainstay yoke and interchangeable dropouts – you can choose whether to go with a geared setup or single speed. The dropouts sit on a sliding system for easy chain tension, with the added benefit of adjustable chainstay length. The Rhythm is a frame that you can dial in to suit your requirements.

Available in four colours, two lengths and two dropout options. Please note: frame does not include dropouts, axle or headset. Please select your desired options at time of purchase from the options below, or speak to your bike shop for more info.

Ready to hit the trails with the best setup available? Then look no further.

Features

ALUMINIUM FRAMESET – DMR Rhythm 6061 T6 Aluminium Alloy frameset, designed specifically for Dirt Jump/4X Race/Street/Park/Pumptrack
SIZE OPTIONS – Two sizes available – choose from Regular, or Long.
INTERCHANGEABLE DROPOUTS – 142x12mm geared
or 135x10mm single speed (available separately).

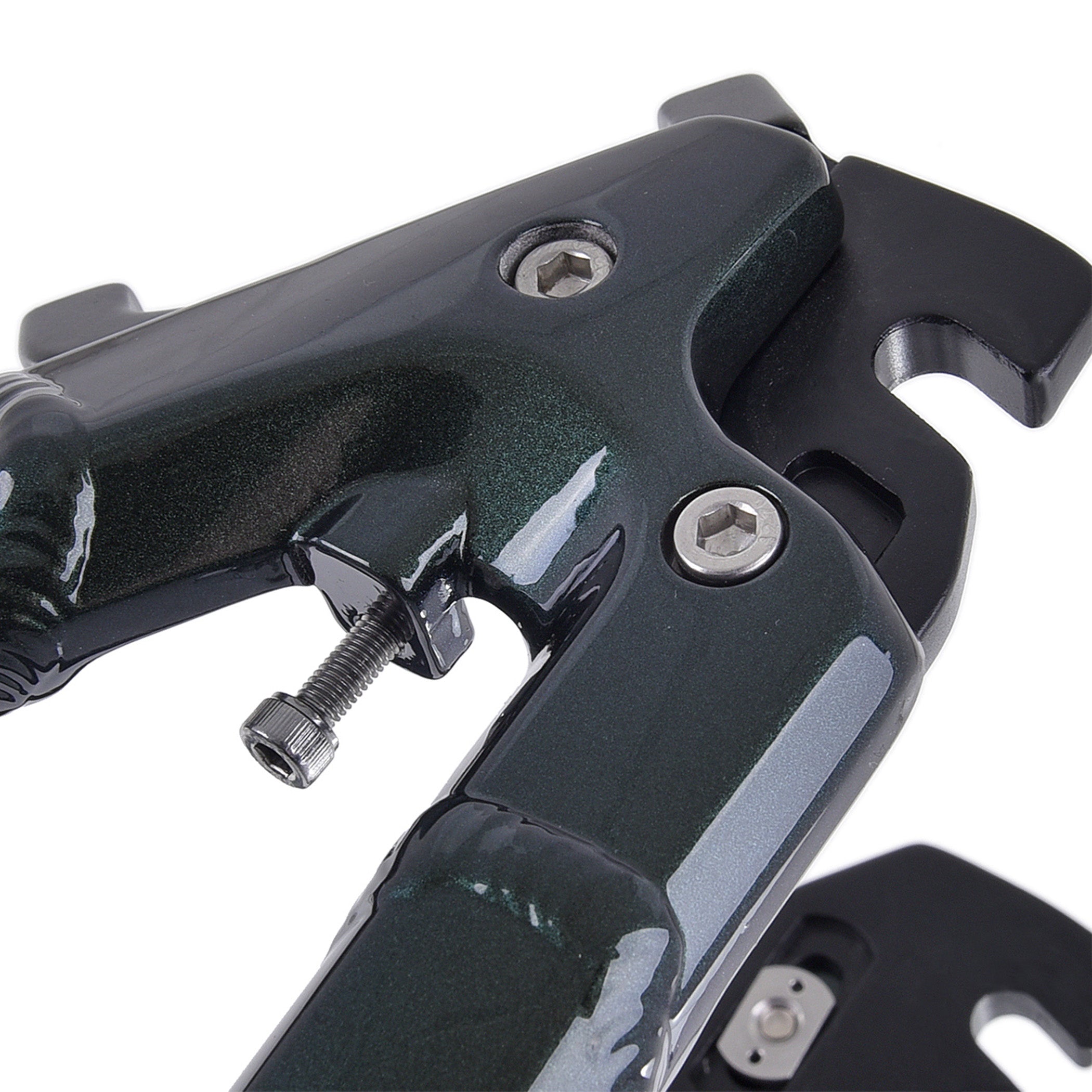

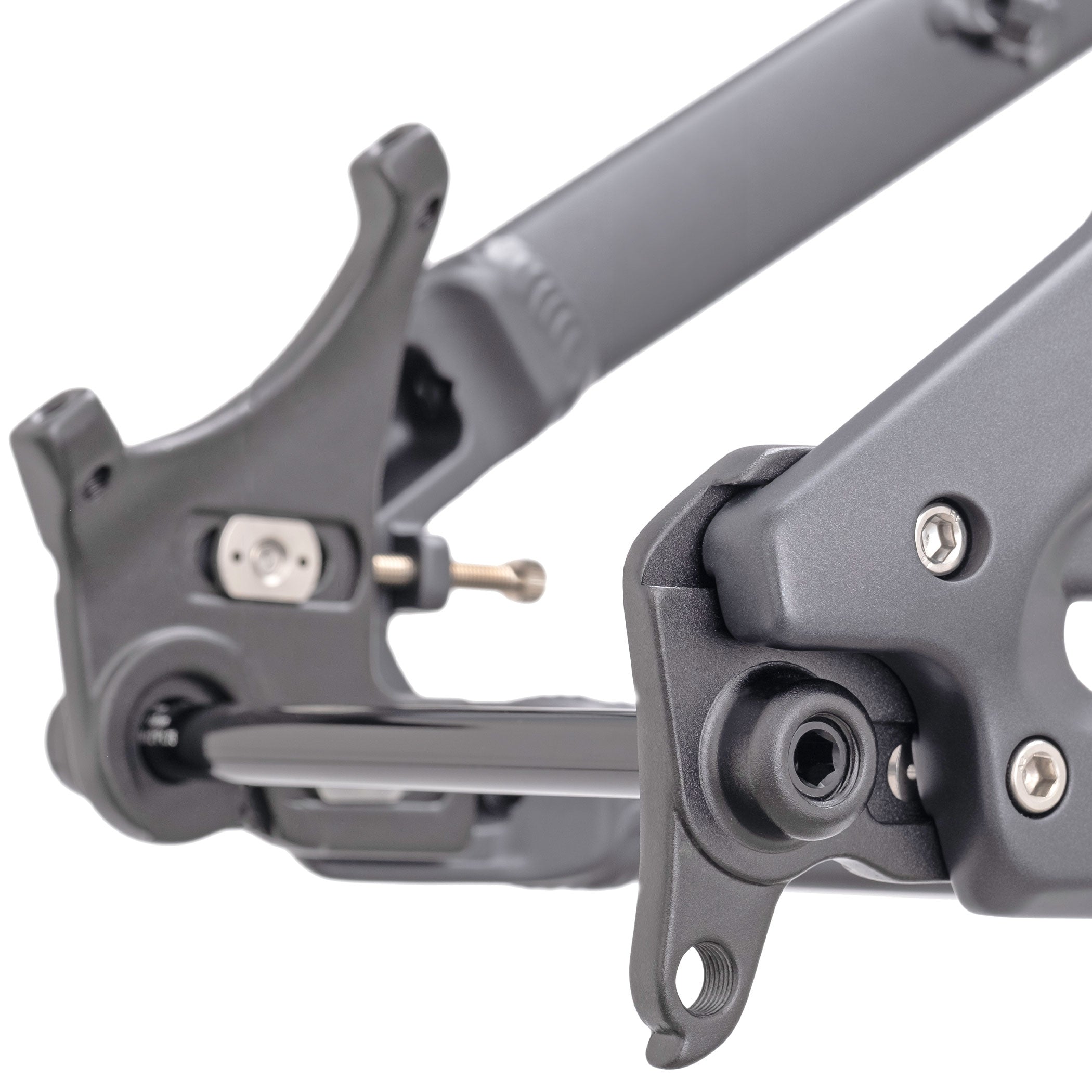

SLIDING DROPOUT SYSTEM – Sliding dropout system
for chain tensioning and adjusting chainstay length.
LOW STANDOVER – creating loads of room, making the bike more manoeuvrable and playful.
RIDER-DESIGNED PRODUCT – Inspired by riding, perfected by the DMR team.

Specification

• Fork compatibility: 100-140mm.
• Wheel Size: 26”.
• Tyre size compatibility: Up to 2.5”.
• Headset required: Zero Stack Tapered. 44mm upper / 56mm lower.

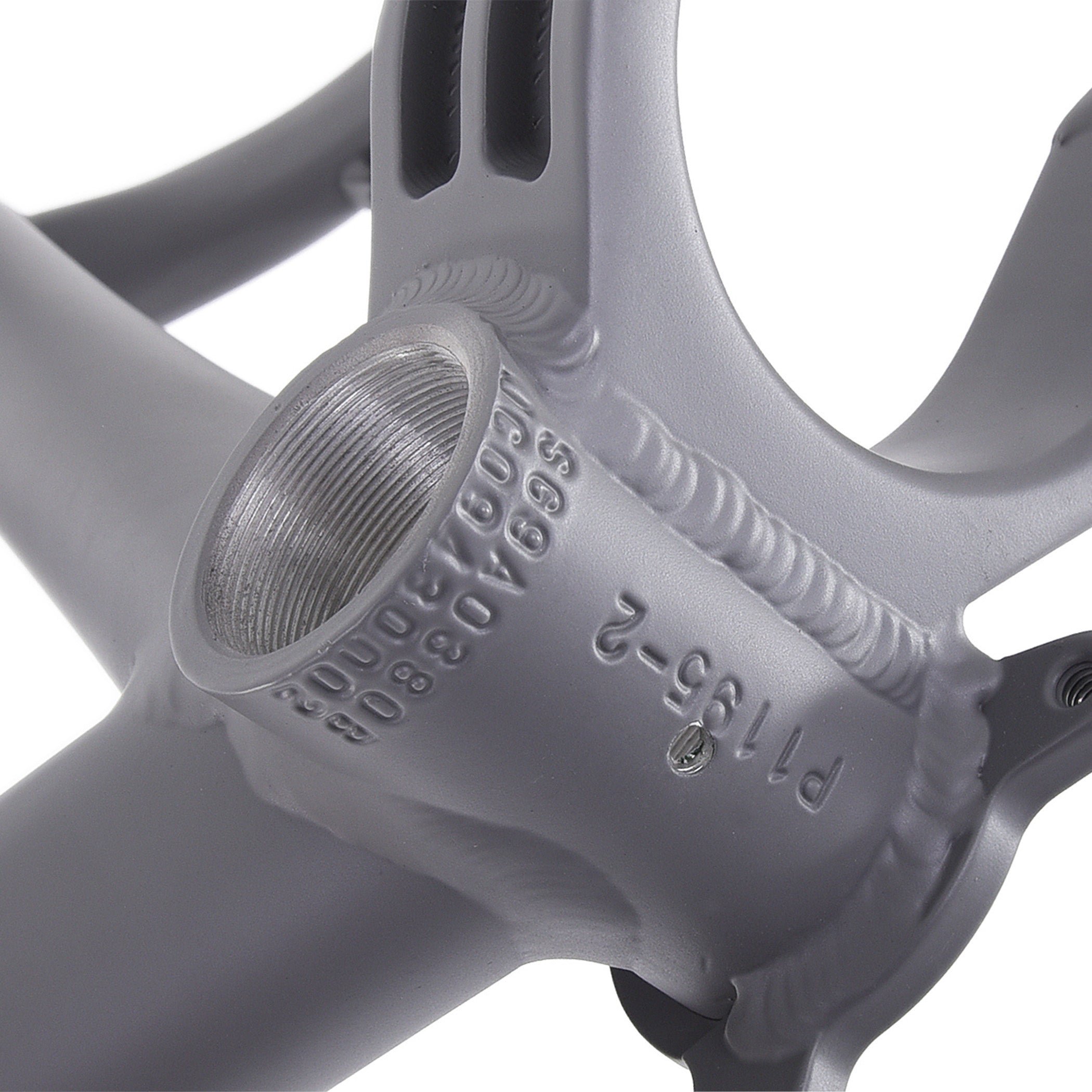

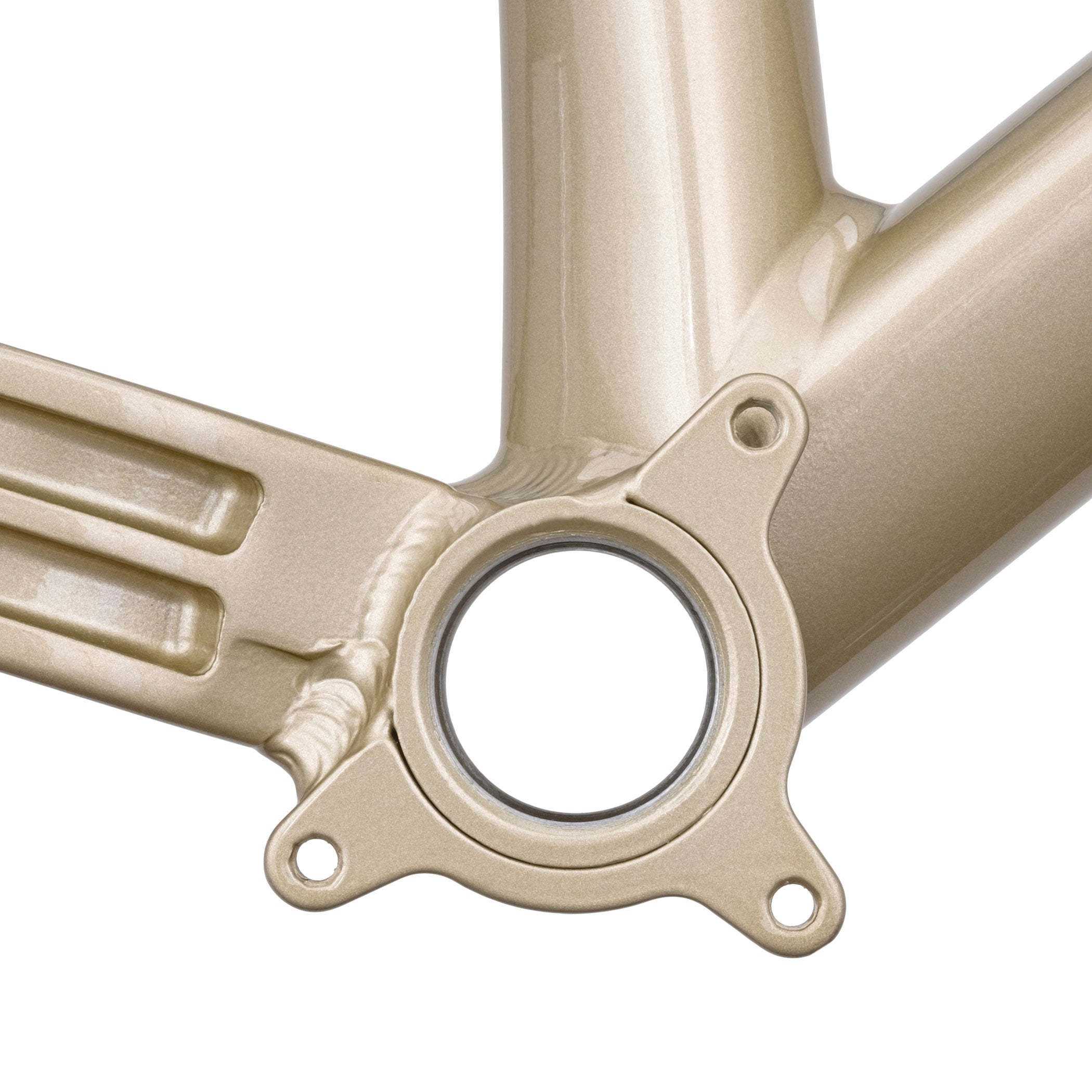

• BB Shell: BSA Threaded.
• Brake attachment: Post Mount Disc 160mm.
• Seat Post required: 31.6mm.
• Seat Clamp: 34.9mm.
• Front Derailleur: Not compatible.
• Weight: 2.37kg (Long)
• Options: Additional stickers included
• Rear Thru Axle: 12mm diameter / 175mm shaft length / 19mm thread length / 1.75 thread pitch.

Please Note: Frame does not include dropouts, axle or
headset. Please select your desired option at time of purchase from the options below.

Geometry

		REGULAR	LONG
A	Seat Tube Length	330	330
B	Top Tube Length	561	579
C	Head Tube Length	115	120
D	Head Tube Angle	69.5°	69.5°
E	Seat Tube Angle	71°	71°
F	Bottom Bracket Drop	20	20
G	Chain Stay Length	385	385
H	Front Centre	653	674
I	Wheel Base	1037	1058
J	Stack	564	569
K	Reach	401	420
	Recommended Fork Length	483	483
	Recommended Fork Offset	45	45
