DMR V-Twin Pedal Spares

Looking to service, or fine-tune your V-Twins? Here you can find all the spares and service items for the DMR V-Twin Pedals.

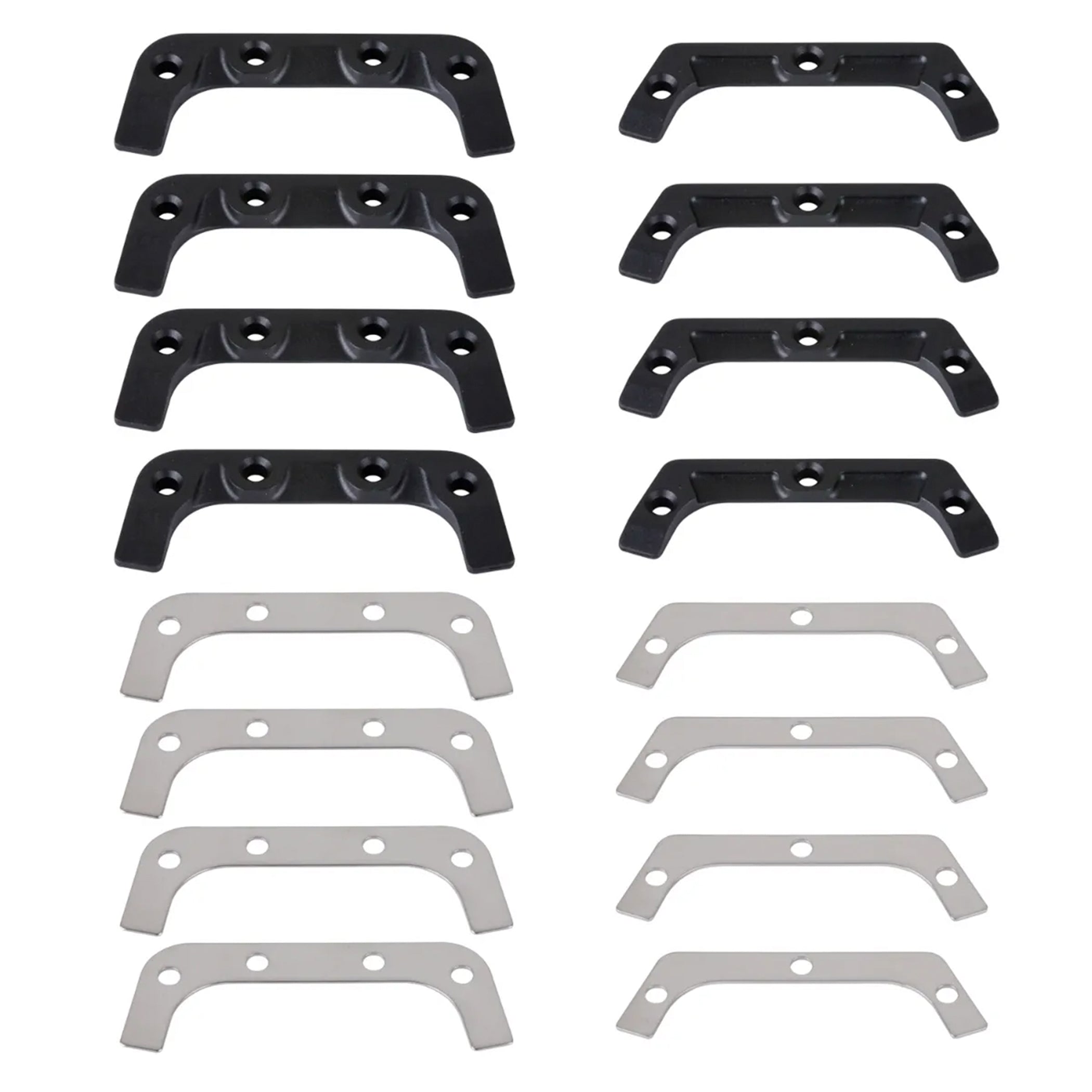

BUMPER KIT
Tuneable platform height with this nylon DMR V-Twin bumper kit and metal shim plate.
DMR-SVTWIN-SHIM-BUMP

ANTI-ROTATION BUMPERS
Stop the cleat cage block from unwinding, as well as solidifying the feel from your V-Twin Pedals.
DMR-S-VTWIN-ANTIRB

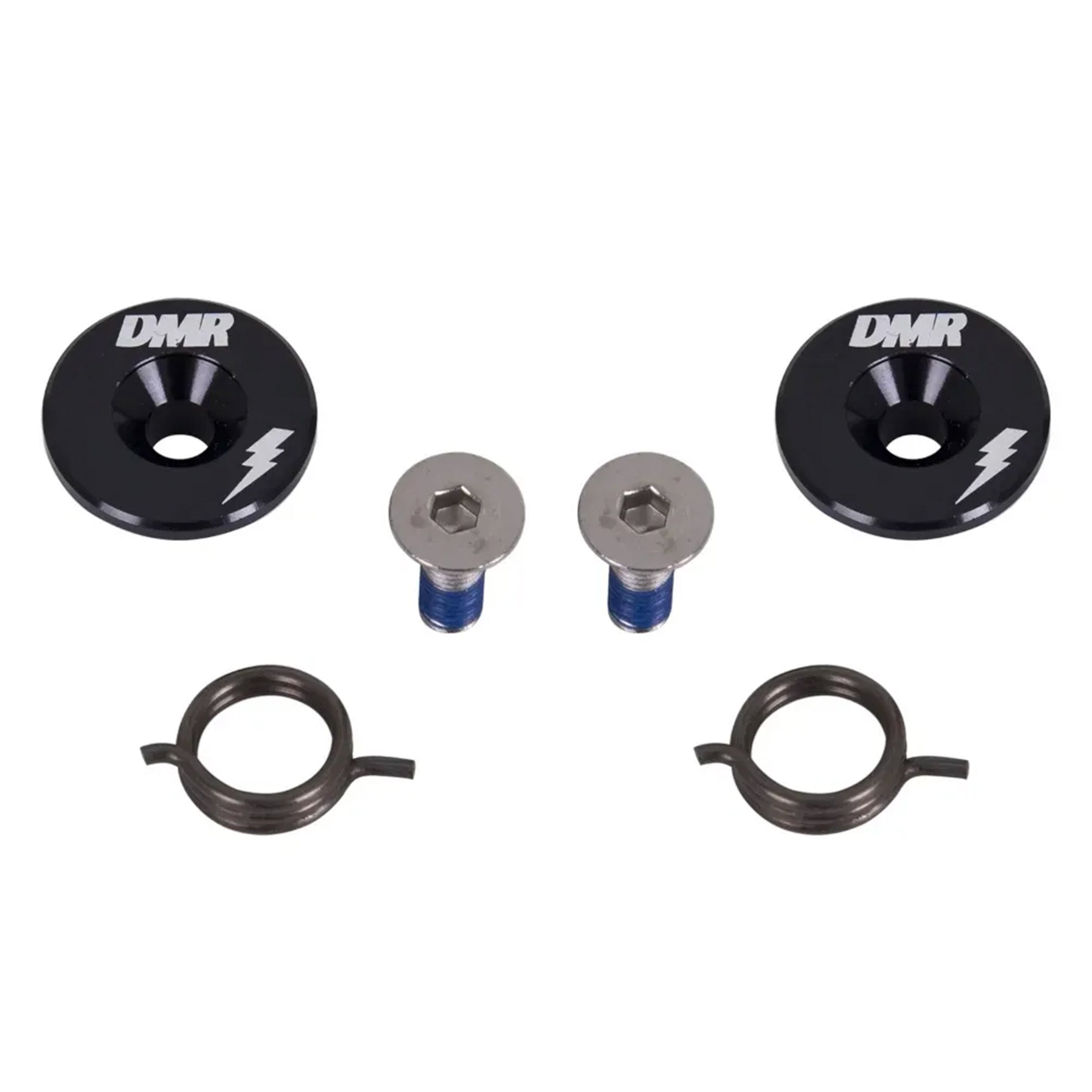

END CAPS
2x Stepped Countersunk End Caps - 20.5mmØ OD (Outer Diameter). 16mmØ Step One. 9mmØ Step Two. 5mmØ ID (Internal Diameter). 8mm Width.
2x Countersunk Bolts - M5x0.75x26mm.
DMR-SVTWIN-ENDCAPS

CLEATS
2x E-C05F 5 Degree Pedal Cleats.
2x Slotted face plates.
2x M5x0.8 twin threaded fixing plates.
2x Twin drilled countersunk plates.
4x M5x0.8 10mm countersunk bolts.
DMR-S-VTWIN-CLEAT5

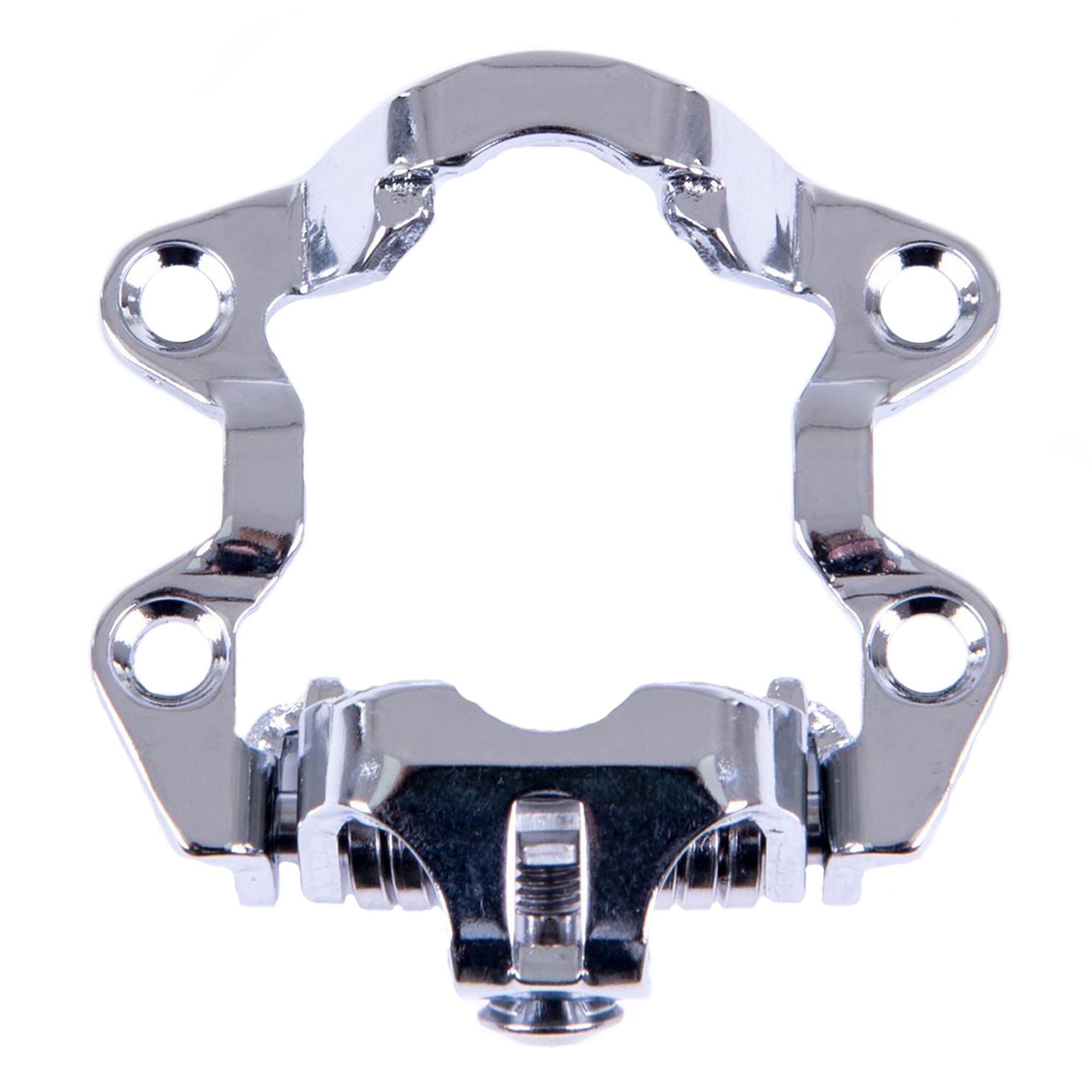

CLEAT CAGE
Replaceable 4-bolt steel cleat cage spare. Ideal if you have had a rock strike and damaged one side of the SPD cleat. Sprung SPD cleat one side fits left or right side.
DMR-S-VTWIN-CAGE

SERVICE TOOL
The DMR V-Twin pedal service tool is designed to easily remove and fit bearings into your pedals. You will also require:
• 6mm allen wrench
• ratchet
• 10mm socket (V12 | V12mag)
• 8mm socket (Vault)
• soft (rubber) hammer
• vice
DMR-TOOL-VTWIN

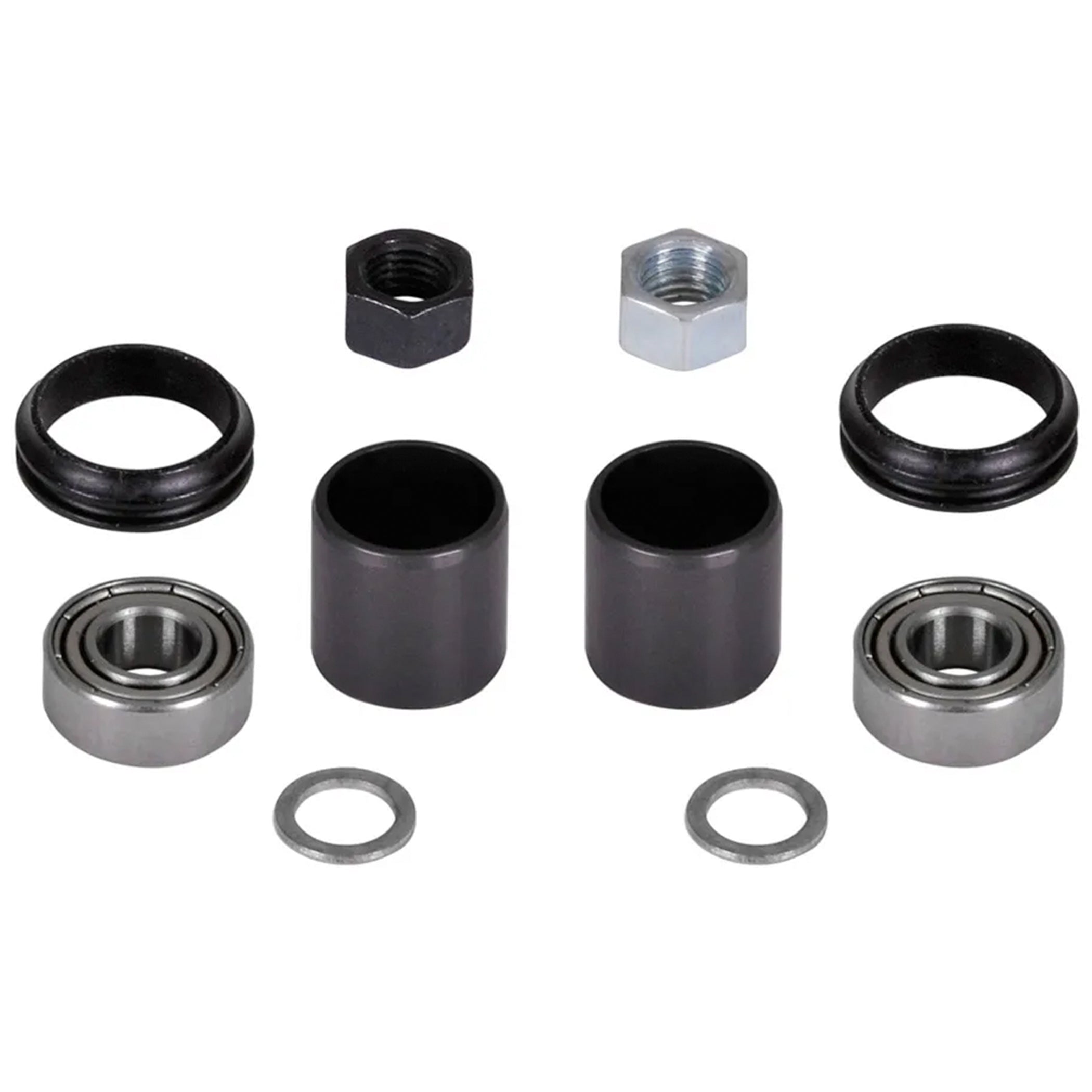

SERVICE KIT
2x Sealed bearing No. 686ZZ - 6mm Ø ID (Internal Diameter) 13mm Ø OD (Outer Diameter) 5mm Width.
2x Plain bearing (bushing) - 10mm Ø ID (Internal Diameter) 12mm Ø OD (Outer Diameter) 12mm Width.
2x Washer - 6mm Ø ID (Internal Diameter) 9mm Ø OD (Over All Diameter) 1mm Width.
2x Internal Rubber Seals.
1x Nut - M6x0.75x5mm right hand thread (left hand pedal) (to be fitted with an 8mm socket).
1x Nut - M6x0.75x5mm left hand thread (right hand pedal) (to be fitted with an 8mm socket).
DMR-SVTWIN-KIT

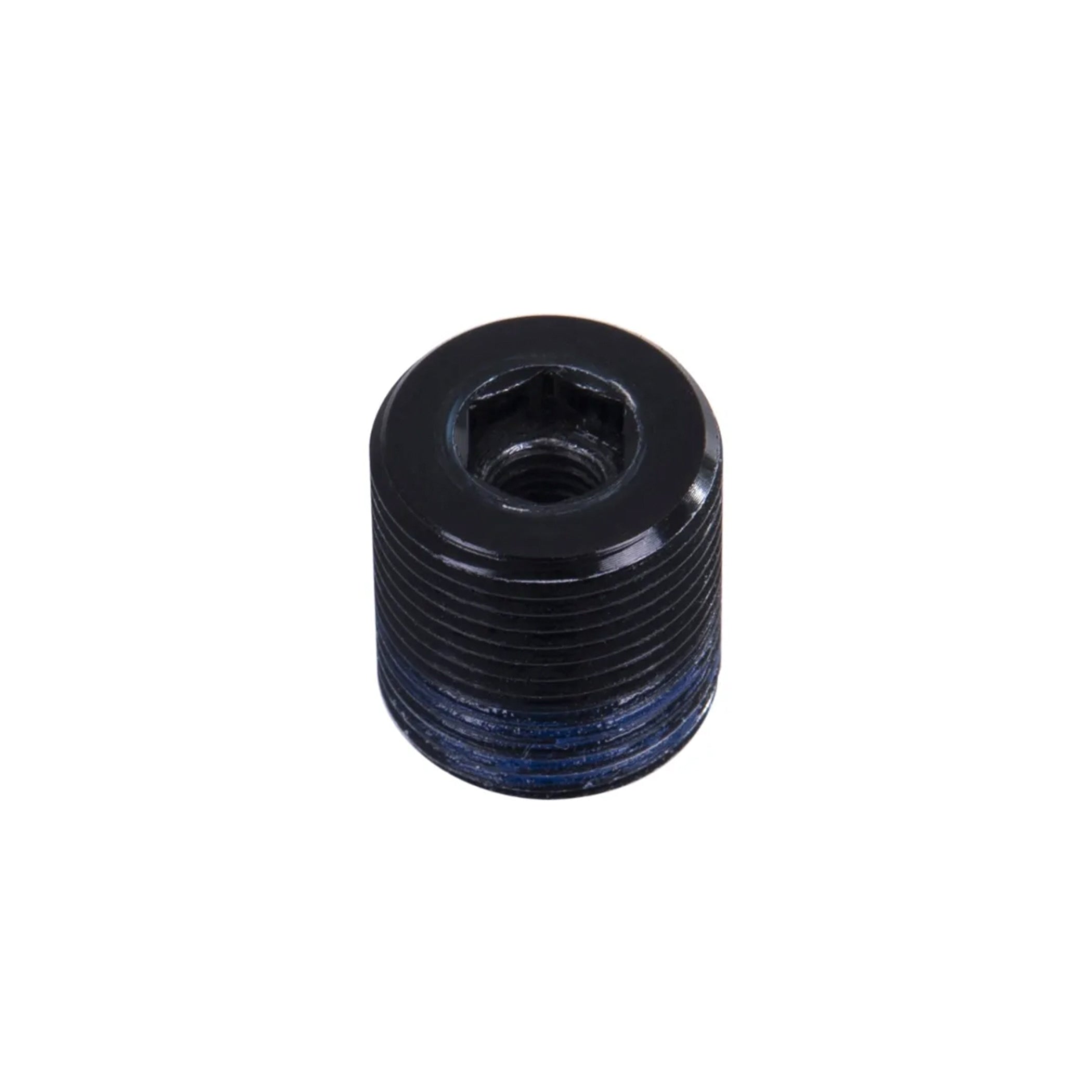

FLOAT RETAINER
6mm Hex float retaining nut.
DMR-S-VTWIN-ENDRET

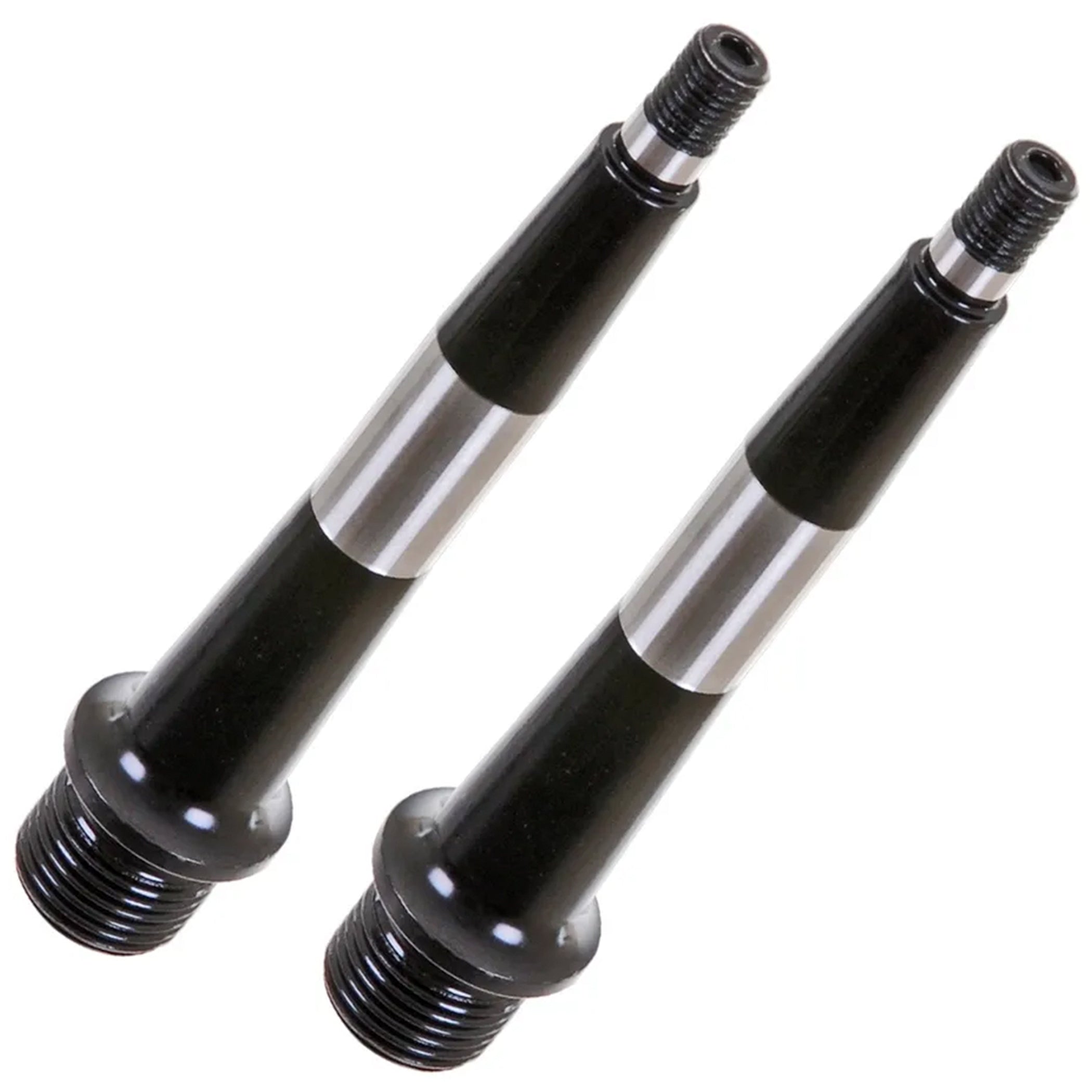

AXLES
Pair of Replacement Axles for your V-Twin pedals:
Left Hand Axle (marked with groove on flange) - Left Hand pedal thread. Right Hand nut thread.
Right Hand Axle - Right Hand pedal thread. Left Hand nut thread.
Nuts not included.
DMR-SVTWIN-XLR-PR
