DMR Vault Pedal Spares

Are your DMR Vault pedals feeling tired, squeaky or rattling? Give them a new lease of life with our service and replacement items found here. See below for a list of parts and information.

FLIP PINS
16 Short Pins - 8.5mm Overall Length. M4x0.7x4mm Thread. 4.5mm Stud Length.
28 Long Pins - 12.5mm Overall Length. M4x0.7x8mm Thread. 4.5mm Stud Length.
44 Pins in total. To secure pins, use either a 2mm Allen Wrench (provided) or 5mm Spanner. Available in Black and Silver. More colours available here.
DMR-PIN-VAULT-K
DMR-PIN-VAULT-S

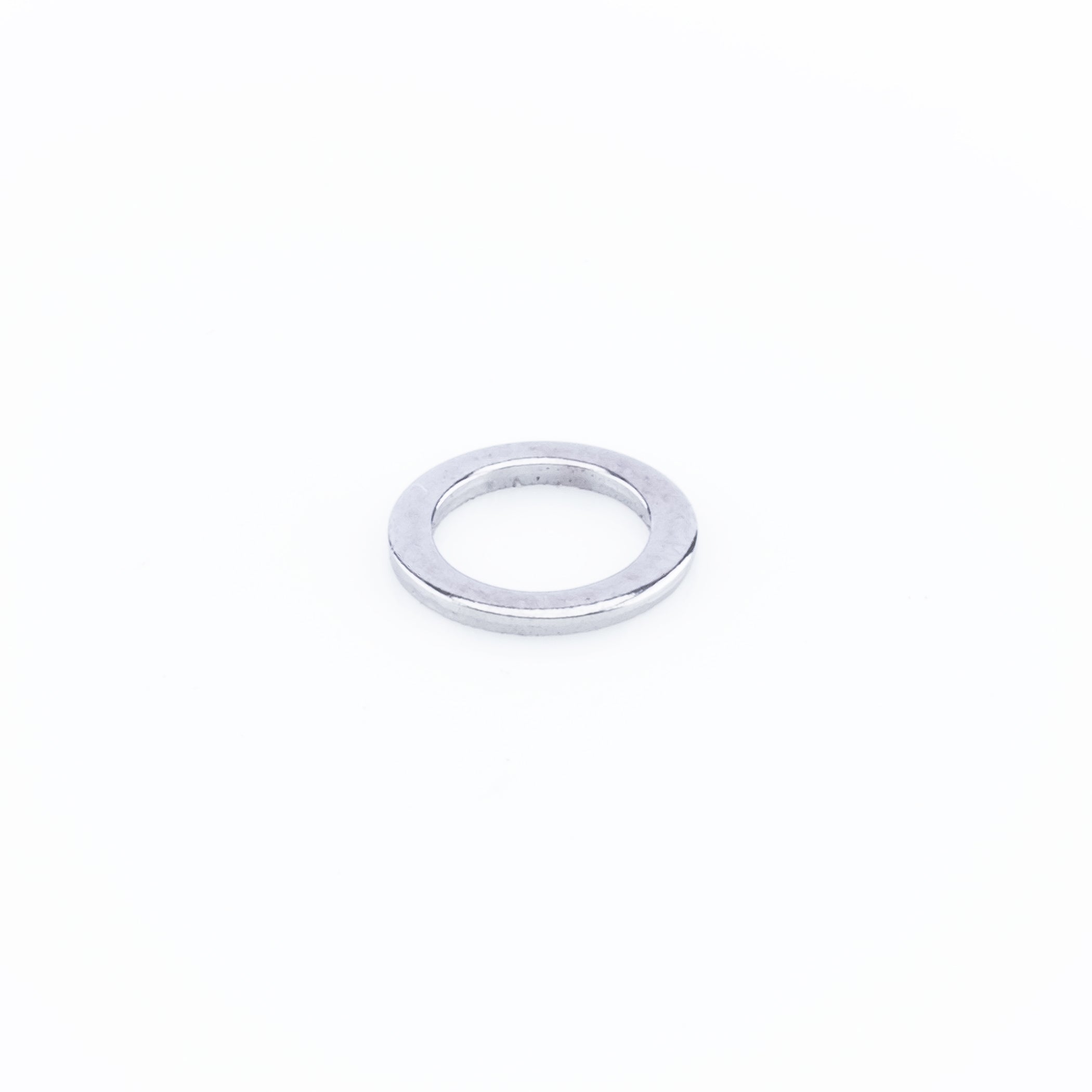

WASHER
Replacement washer for the DMR Vault pedals. This washer sits between the cartridge bearing and the axle nut.
DMR-SVLT-WASHER

AXLES
Replacement axles for DMR Vault Pedal. 9/16" threads only. Available in Black or Silver. Titanium Axle upgrades also available.
Left Hand Axle - Left Hand Crank thread. Right Hand Nut thread.
Right Hand Axle - Right Hand Crank thread. Left Hand Nut thread.
DMR-SVLT-AXLE-PR
DMR-SVLT-AXLE-PR-K
DMR-SVLT-XLR-TI

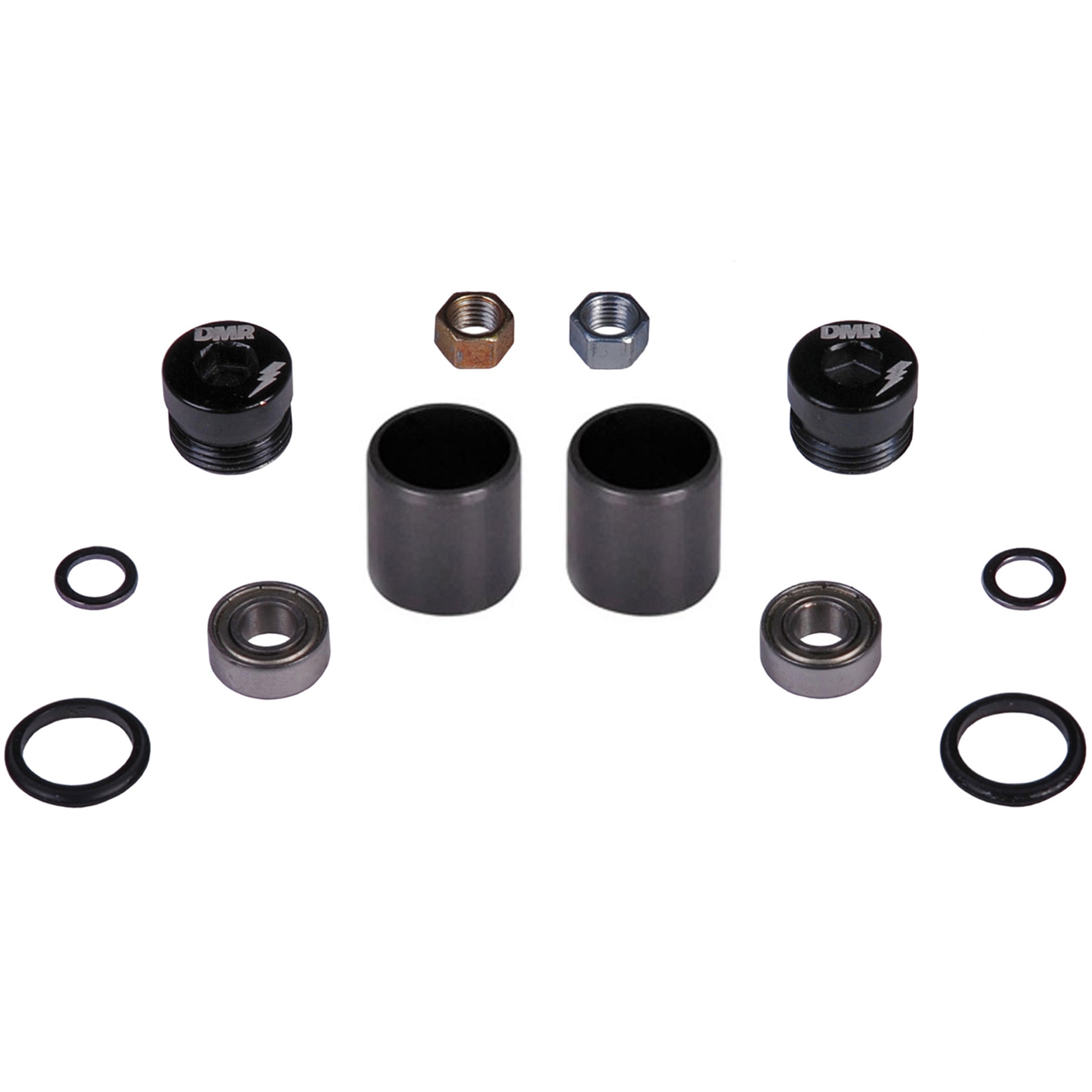

SERVICE KIT
2x Bearing No. 686ZZ - 6mmØ ID (Internal Diameter). 13mmØ OD (Outer Diameter) 5mm Width.
2x Bushing - 12mmØ ID (Internal Diameter). 14mmØ OD (Outer Diameter) 12mm Width.
1x Nut - M6x0.75. 5mm deep. Right hand thread (left hand pedal) (fitted with 8mm socket).
1x Nut - M6x0.75. 5mm deep. Left hand thread (right hand pedal) (fitted with 8mm socket).
2x End Cap - M14x1x11.
2x Washer - 6mmØ ID (Internal Diameter). 9mmØ OD (Outer Diameter). 1mm Width.
2x Internal Rubber Seals.
DMR-SVLT-KIT

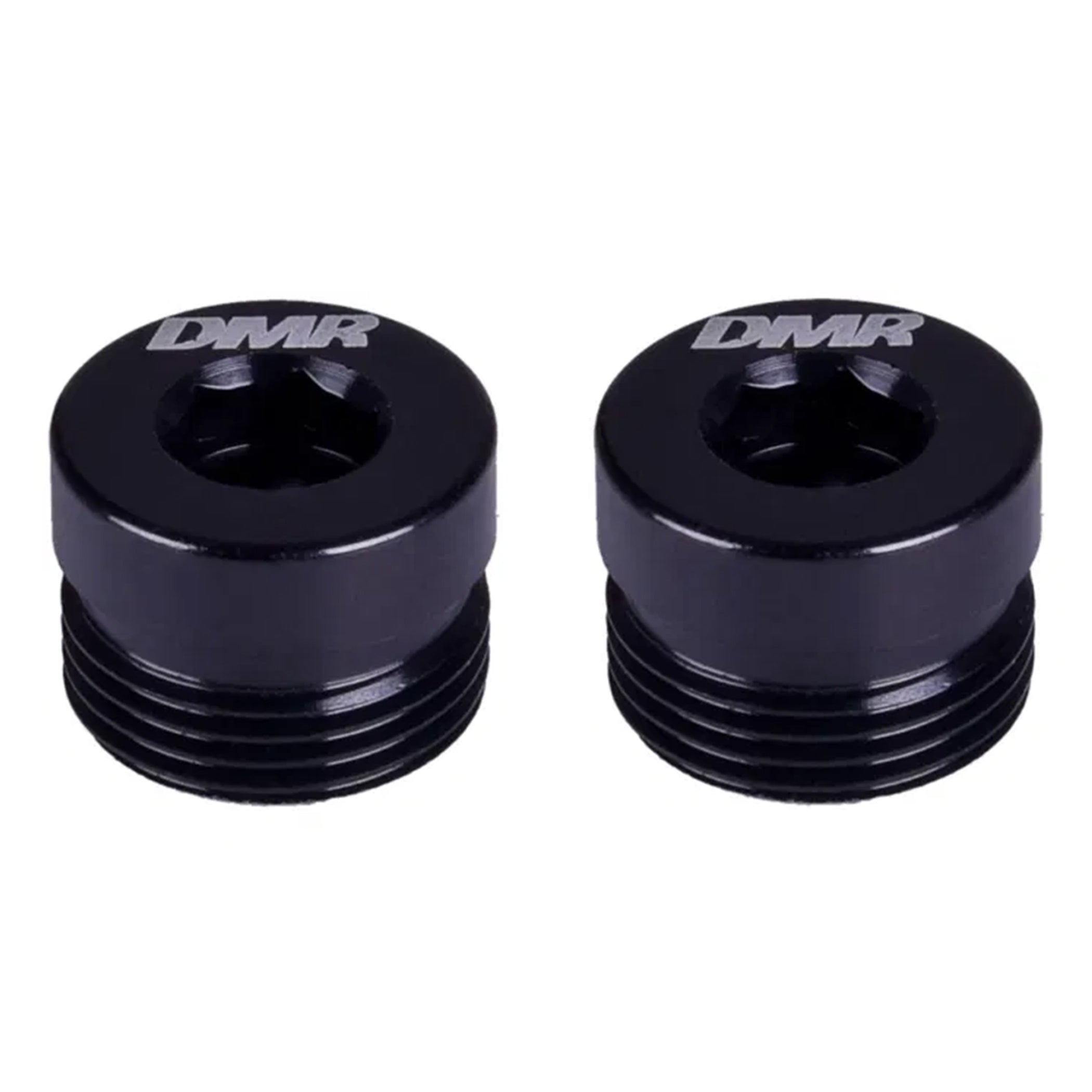

END CAPS
Pair of end caps for DMR Vault Pedals.
DMR-SVLT-EC

SERVICE TOOL
The DMR Pedal Service Tool is designed to easily remove and refit bushings and bearings for your DMR Pedal. This version (V1) will work with DMR Vault, Vault Mag, V12, V12 Mag, V11, Flat4 and Versa pedals. You will also need the following tools:
• 6mm Allen Wrench.
• Ratchet.
• 8mm Socket.
• Soft (Rubber) Hammer.
• Vice.
DMR-TOOL-V12
