DMR V12 Pedal Spares

Have your V12 Pedals started feeling like a Flat 6? Perhaps it's time you treated them to a service. Here, you can find everything you need to get them running on all cylinders.

SERVICE KIT
DMR V12 Pedal Service Kit includes:
2x Bearing No. 6867 - 6mmØ ID (Internal Diameter). 19mmØ OD (Outer Diameter) 5mm Width.
2x Bushing - 12mmØ ID (Internal Diameter). 14mmØ OD (Outer Diameter) 10mm Width.
1x Nut - M6x0.75x5mm. Right hand thread (left hand pedal) (fitted with 9mm socket).
1x Nut - M6x0.75x5mm. Left hand thread (right hand pedal) (fitted with 9mm socket).
2x End Cap - M14x1x11.
2x External Shields.
2x Internal Rubber Seals.
DMR-S12-KIT-V2

SERVICE TOOL
The DMR Pedal Service Tool is designed to easily remove and refit bushings and bearings for your DMR Pedal. This version (V1) will work with DMR Vault, Vault Mag, Vault Midi, V12, V12 Mag, V11, Flat4 and Versa pedals. You will also need the following tools:
• 6mm Allen Key.
• 9mm Socket.
• Torque Wrench.
DMR-TOOL-V12

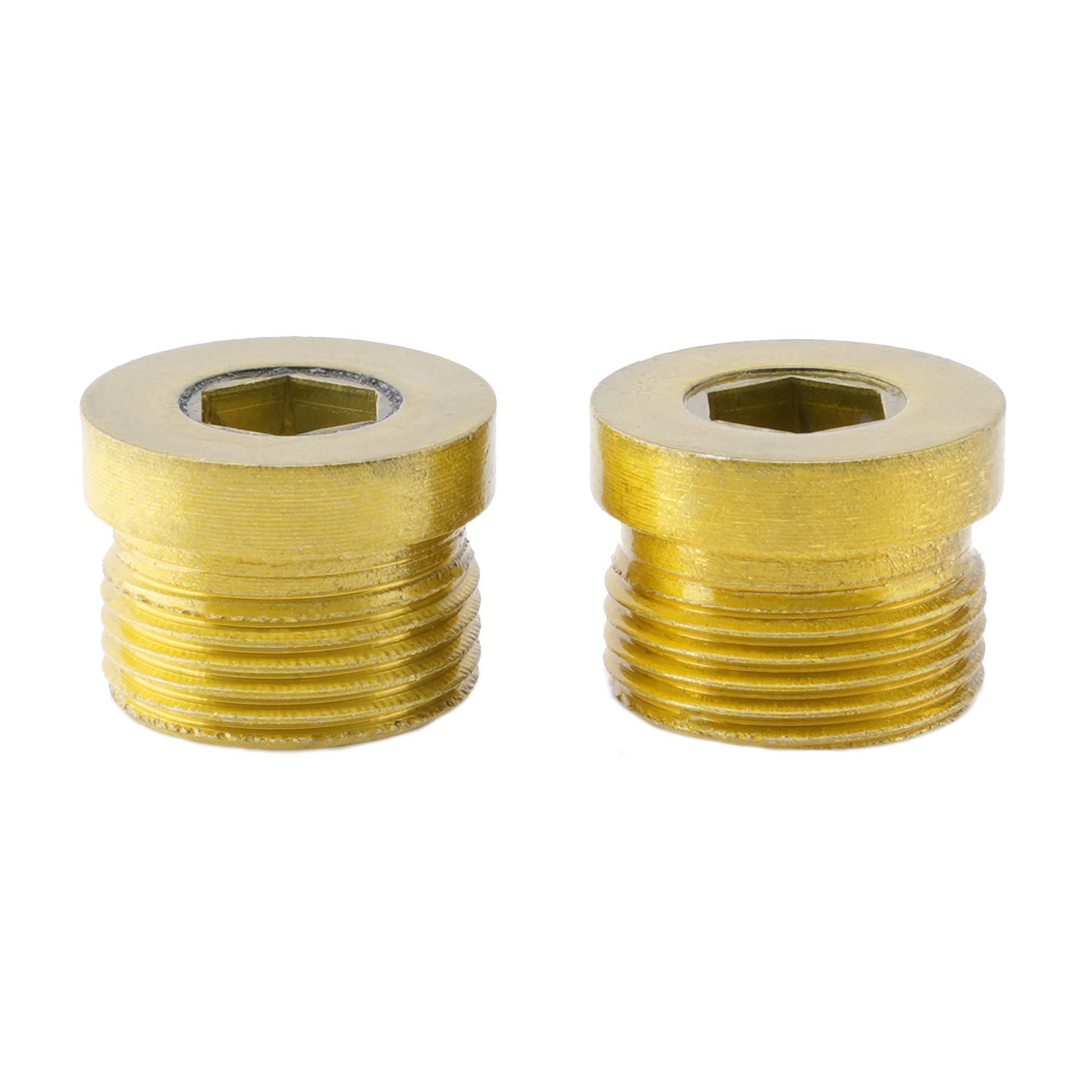

END CAPS
Replacement End Caps for DMR V12 Pedals.
DMR-S12-V2-ENDCAP-G

DU BUSH
Replacement pair of DU Bushes for DMR V12 Pedals.
DMR-S12-V2-DU

PINS
20 replacement pins for DMR V8 and V12 pedal. These pedals require 40 pins total per pair.
Pin Dimensions: M4x0.7x8mm.
DMR-PIN-99

AXLES
Replacement Chromoly Steel axles for DMR V12 Pedal. 9/16" threads. Available in Silver. Titanium Axle upgrades also available.
Left Hand Axle - Left Hand Crank thread. Right Hand Nut thread.
Right Hand Axle - Right Hand Crank thread. Left Hand Nut thread.
These axles are not compatible with older, classic V12 pedals, made before 2015.
DMR-S12-AXLE-PR-V2
DMR-S12-XLT-PR-V2
